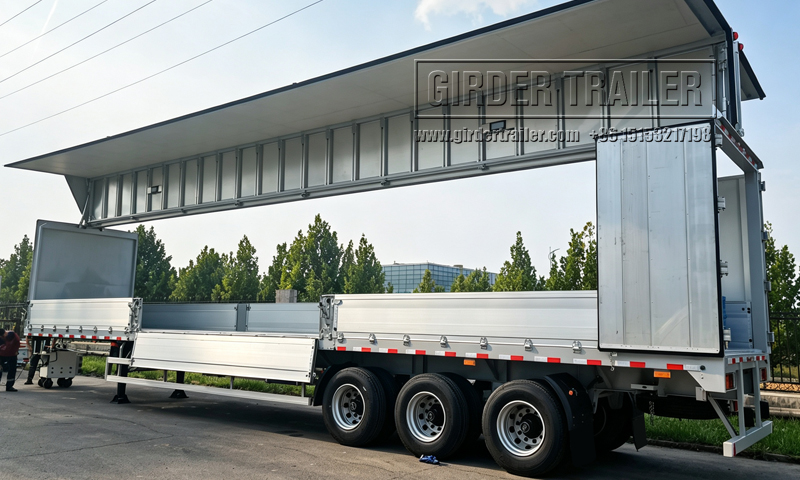

WING VAN SEMI TRAILER( JAPAN QUALITY)

The box semi-trailer features excellent sealing performance, providing effective protection against dust, rain, and moisture to safeguard cargo from adverse weather conditions. Its fully enclosed box structure ensures superior cargo security with anti-theft capability, significantly reducing the risk of damage during transit.

Designed with a lightweight yet high-strength construction, the van semi-trailer offers strong load-bearing capacity and a regular internal geometry that maximizes usable volume and space utilization. With stable handling characteristics and broad road adaptability, it is widely deployed for the transportation of general cargo, including daily consumer goods, express parcels, home appliances, and apparel.

The box body is engineered for structural rigidity and long-term durability, exhibiting high resistance to deformation and an extended service life. Its design facilitates efficient loading and unloading operations, delivering both operational efficiency and cost-effectiveness.

Based on structural design variations, van box semi-trailers are generally classified into the following types: wing-opening van semi-trailers, curtain-side semi-trailers, dry van semi-trailers, and refrigerated box semi-trailers.

1.MAIN MODELS:

• Aluminum Wing van semi trailer
• Carbon steel Wing van semi trailer

• Carbon Steel /Aluminum /Fiberglass steel dry van semi trailer
• Curtain side van trailer
• Refrigerator van trailer

Our product portfolio is not limited to the above‑mentioned models. Custom‑engineered manufacturing is available to meet your specific application requirements.

2.PARAMETERS

Above date can be customized per your local regulation and requirement.

3.Functions and features:

Equipped with core components sourced from Japan, the wing van semi-trailer boasts a service life exceeding 15 years. The box body is available in either aluminum alloy or ordinary carbon steel construction. The aluminum alloy variant delivers superior corrosion resistance, resulting in enhanced long-term waterproof performance, reduced tare weight, and consequently higher payload capacity under the same gross vehicle weight limit. With significantly lower maintenance costs and minimal rust-related degradation over time, the aluminum alloy model achieves a quality standard comparable to Japanese-manufactured counterparts. Featuring refined craftsmanship and a robust structural design, it exhibits extremely low rates of aging and depreciation under standard operating conditions, delivering reliable performance and outstanding durability for over 15 years of service.

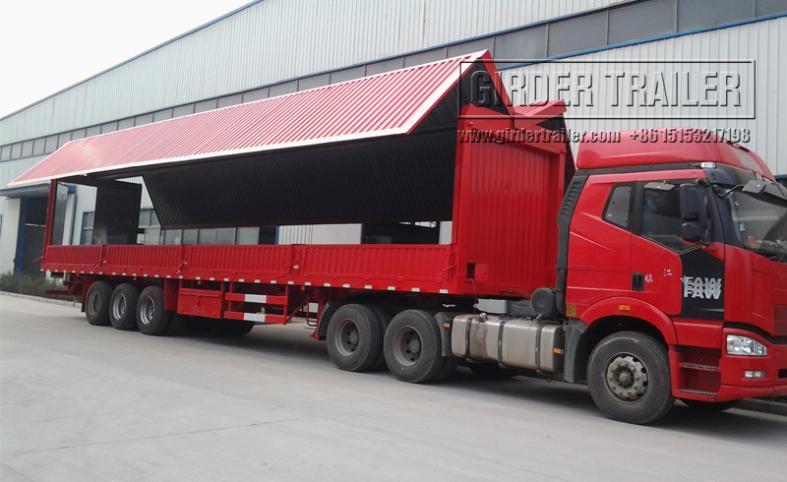

• Material options & advantagesWing semi‑trailers are available in carbon steel and aluminum‑alloy. Compared with carbon‑steel versions, aluminum‑alloy models feature lighter tare weight, superior waterproof sealing performance and rust‑free properties, with a longer service life. The aluminum‑alloy wing semi‑trailer is also one of our factory’s flagship products.

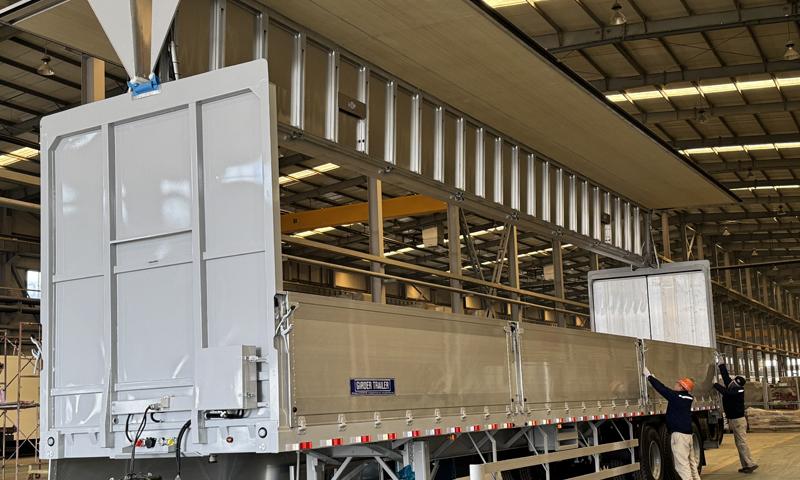

• Flexible Structural DesignThe wing van semi-trailer can be built with a full-side wing opening structure or adopt a combined configuration with a lower fence section and an upper wing panel. This combined design shortens the wing panel length, enabling opening and closing operations even in confined spaces.

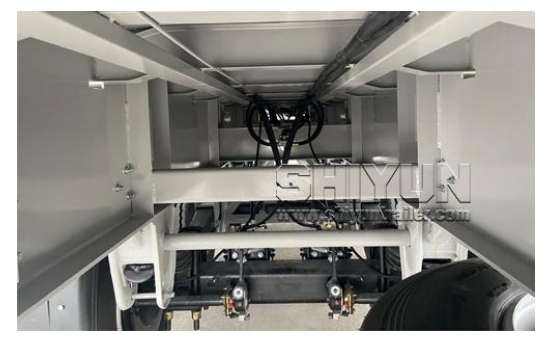

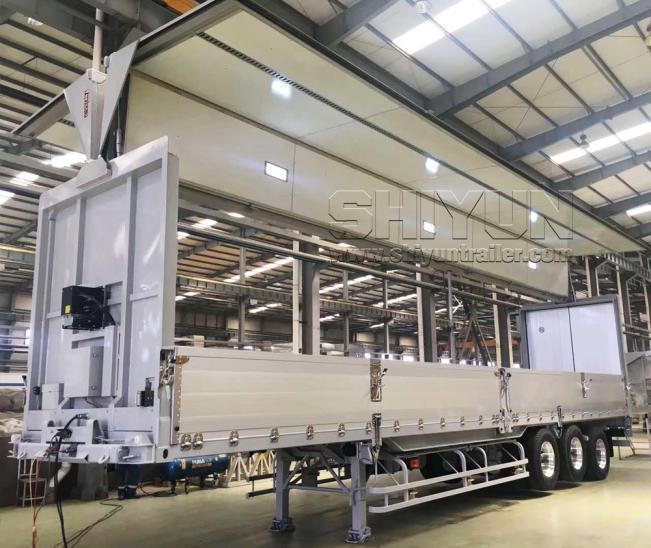

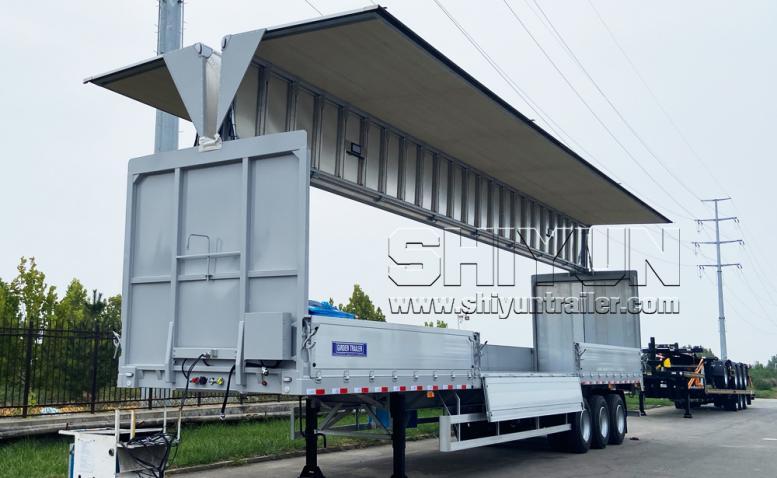

• Efficient Three-Side LoadingThe side opening system allows both wing panels to lift to nearly 90° via an electro-hydraulic or manual actuation system, while the rear doors can swing open to 270° for full rear access. This three-side loading capability enables simultaneous forklift operations from both sides and the rear, achieving loading and unloading speeds 2–3 times faster than standard box vans, making it particularly well-suited for palletized goods and intermodal transport.
• High-End MaterialsProprietary designed aluminum profile and advanced plastic sprayed galvanized steel have the advantages of light weight, high structural strength, corrosion resistance and the like, with the bright and beautiful appearance, and can be matched with a color paint surface according to requirements, thus meeting the advantages of personalized requirements of customers.
• Fully Enclosed & SecureThe fully enclosed box body provides comprehensive weather protection against rain, dust, and sunlight, along with theft-resistant security through a durable sealed roof structure.
• Lightweight & StrongThe high-strength steel or aluminum alloy construction achieves an optimal balance between lightweight design, payload

• capacity, and fuel efficiency.
• Versatile ApplicationThe trailer is highly versatile, suitable for transporting home appliances, paper products, auto parts, and express cargo, and performs well even in tight operational environments. Certain models also support top-loading operations. The aerodynamic closed-body design reduces air drag and enhances lateral stability at highway speeds.

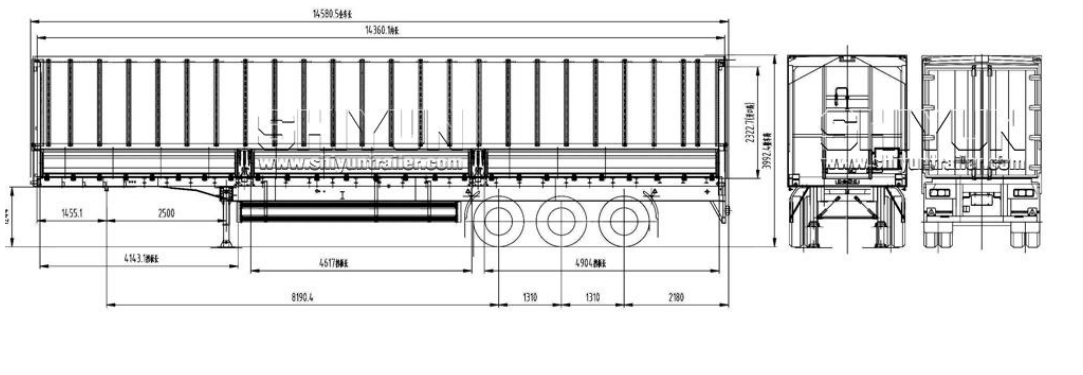

• Customizable DimensionsThe overall length of the wing semi-trailer ranges from 20 ft to 18 meters, with the most popular specifications being 40 ft, 45 ft, and 53 ft. The standard width is 2550 mm, and the height generally ranges between 4.0 m and 4.4 m. All dimensions can be customized according to customer requirements and local height restriction regulations.

• Flexible Axle ConfigurationThe trailer is typically equipped with 2 or 3 axles, with a 4-axle version also available. Additionally, a step-wise drop-side structure can be incorporated to lower the cargo center of gravity and overall height, thereby increasing usable cargo volume.

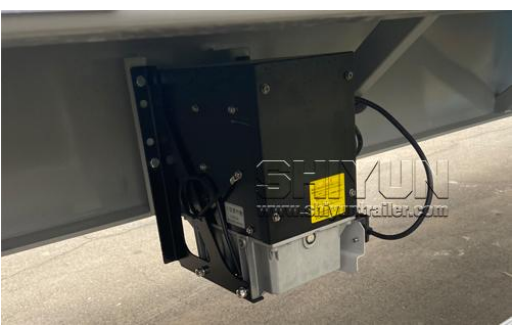

• Premium Exterior OptionsFor the exterior of the aluminum alloy wing semi-trailer, customers may choose between flat aluminum panels and corrugated aluminum panels. The trailer is fitted with Japanese-manufactured motors, ensuring high quality and extended service life. As a core component, its precision manufacturing guarantees stable performance and exceptional durability for the entire vehicle.

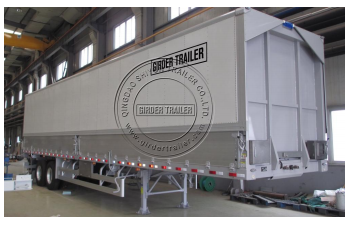

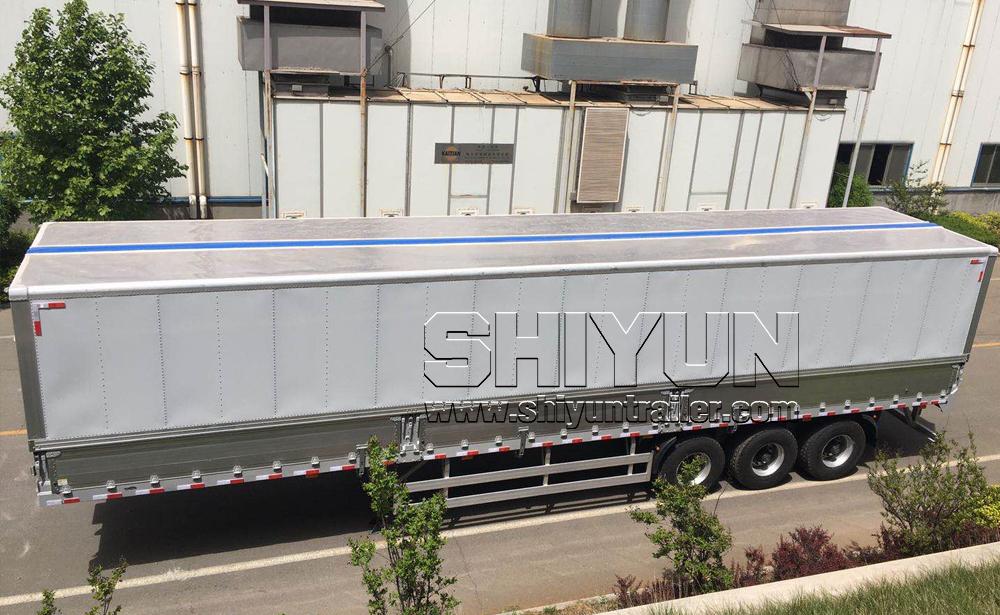

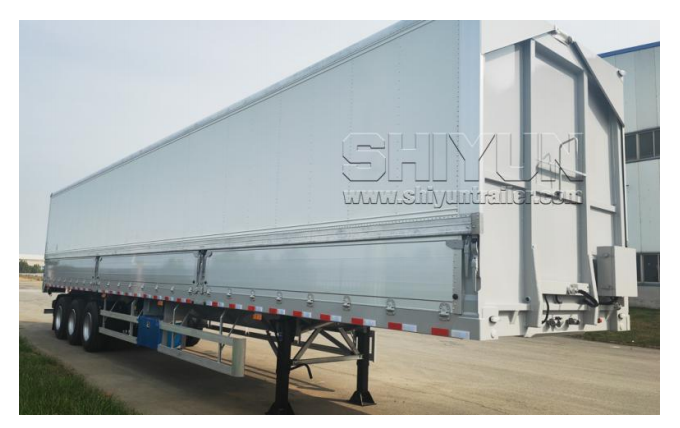

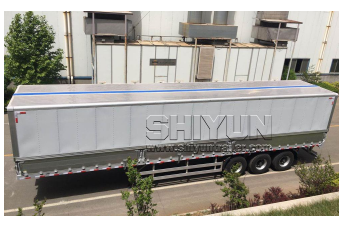

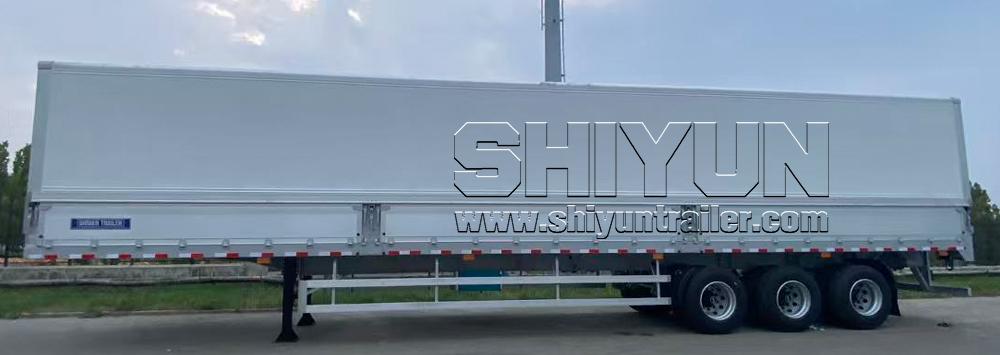

Flat aluminum cover wing van trailer

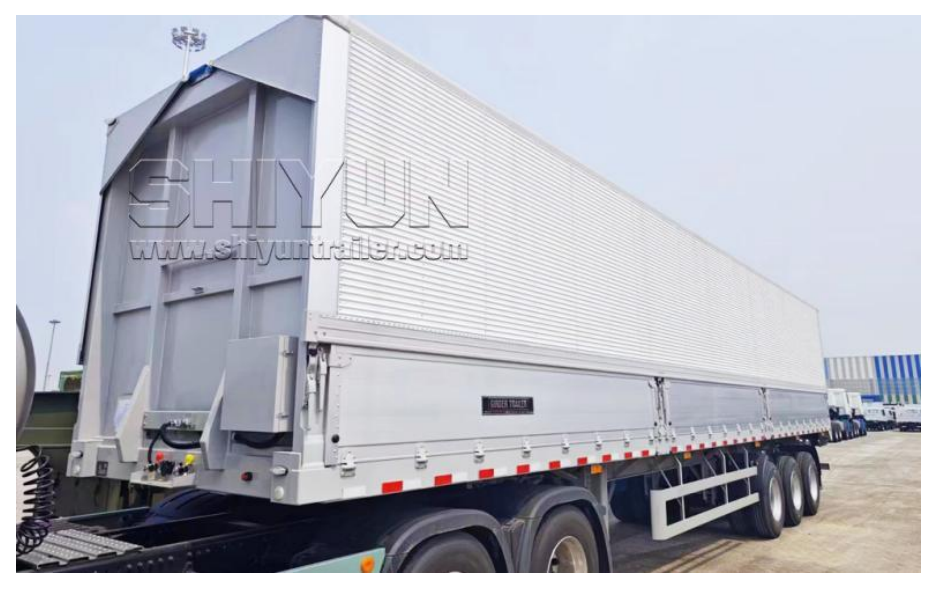

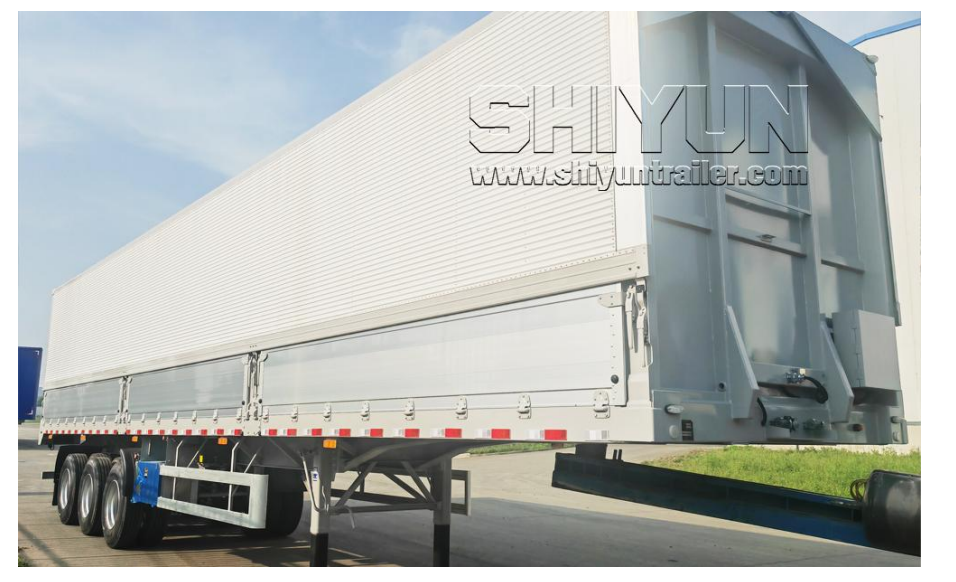

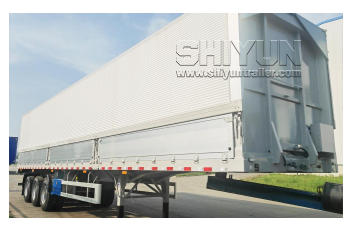

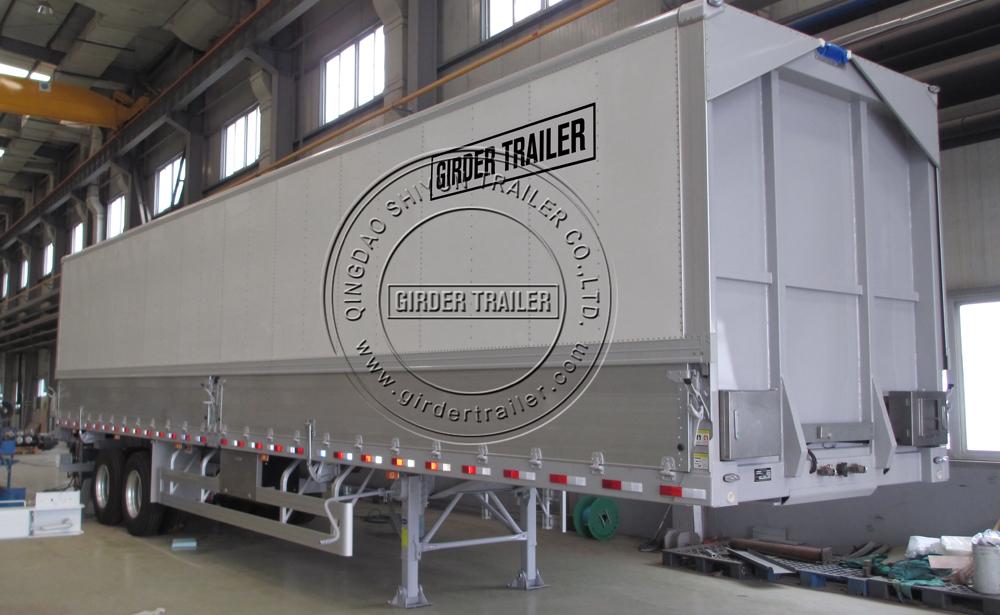

Rib aluminum cover wing van trailer

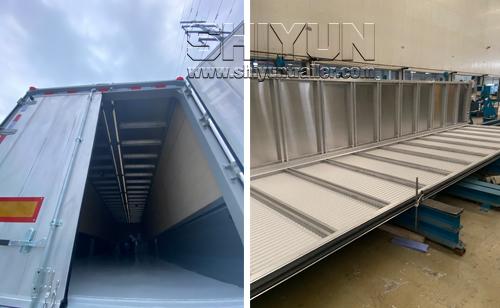

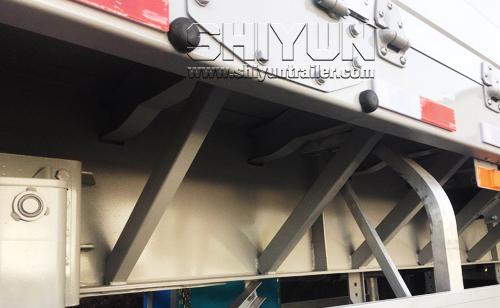

• Advanced Riveted ConstructionThe aluminum wing semi-trailer is generally constructed with aluminum profiles and lined with plywood on the interior. The aluminum profiles are joined by riveting rather than welding, a process better suited to the material characteristics of aluminum, resulting in a stronger and more durable structure.
• Easy MaintenanceAnother significant advantage of the aluminum alloy wing van semi-trailer is its ease of maintenance — in the event of collision damage or localized breakage, only the affected aluminum profile needs to be removed and replaced, allowing the trailer to be restored to its original condition efficiently.
• Longer Service LifeWith durable materials and advanced design, according to experiences in Japanese market, service life can be more than 15 years.
• Economical & Environment-FriendlyThe whole production process has no pollution to the environment. Streamline design can effectively reduce wind resistance and oil consumption.

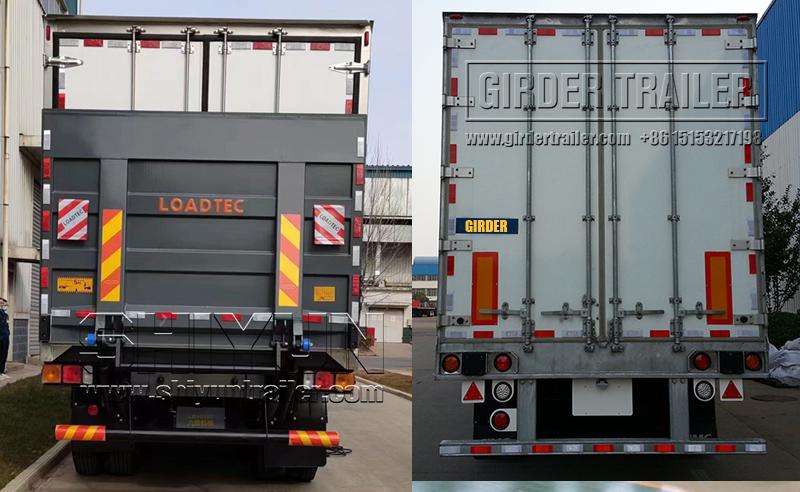

• A hydraulic liftable tailgate can be optionally installed at the rear end upon customer’s requirements.

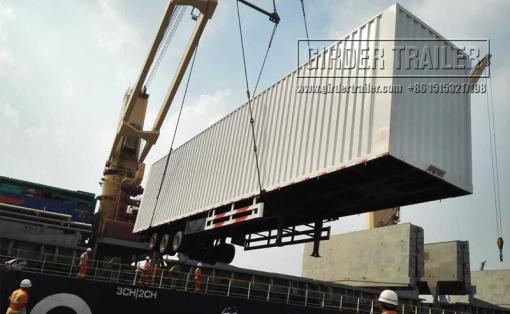

2.SHIPMENT

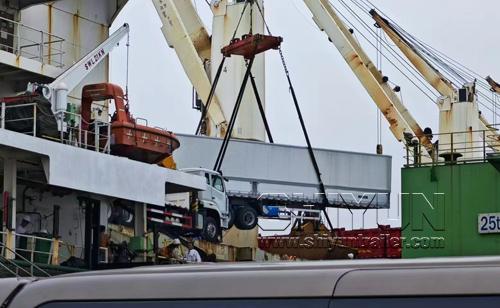

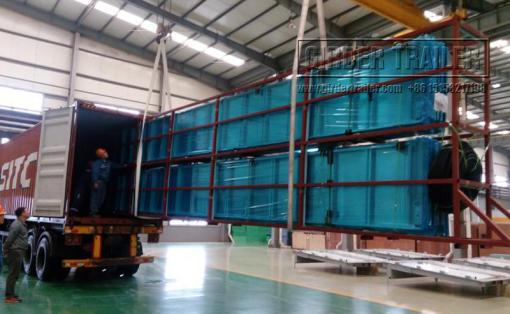

Since the overall dimensions (length, width and height) of the van‑body semi‑trailer exceed those of standard containers, we normally ship by bulk carrier or ro‑ro vessel. For customers with manufacturing and assembly capabilities, SKD or CKD shipping modes are also available for container loading to save ocean freight costs.
