Description
|
|
||
|
|
|
|

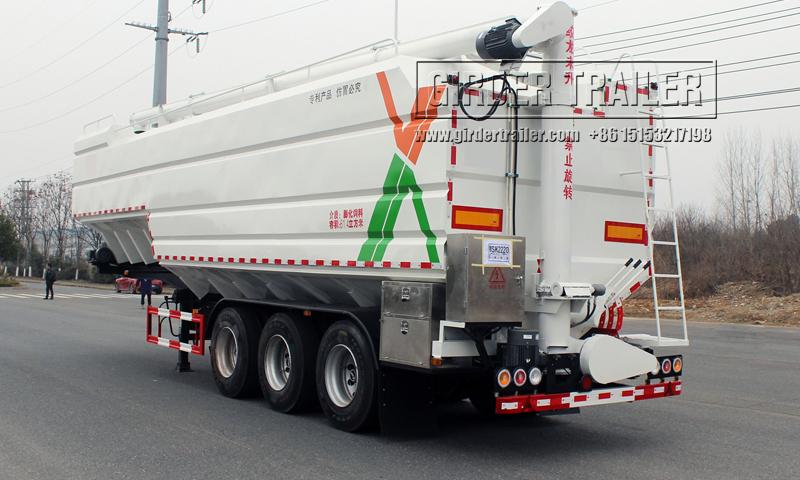

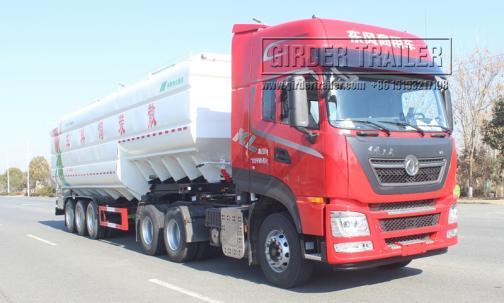

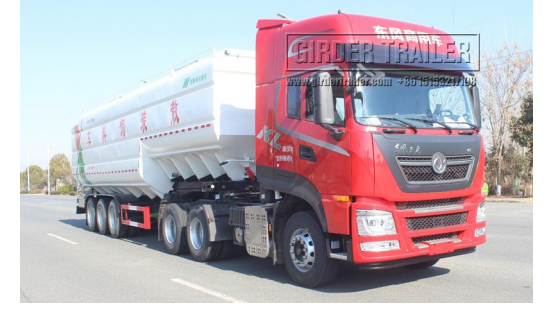

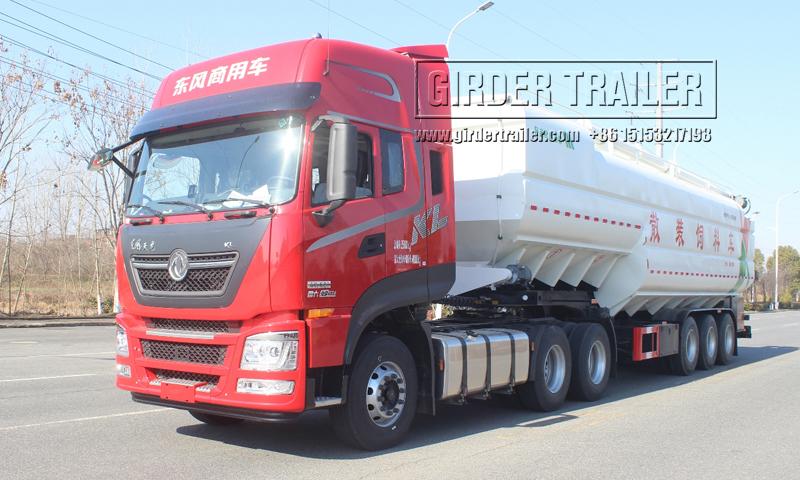

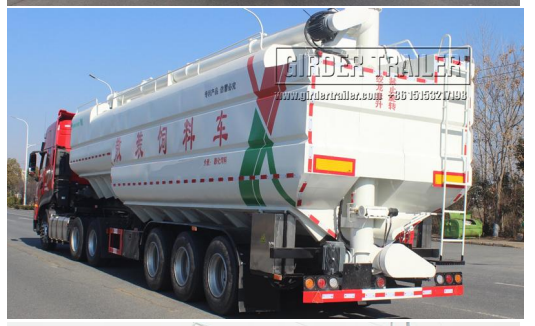

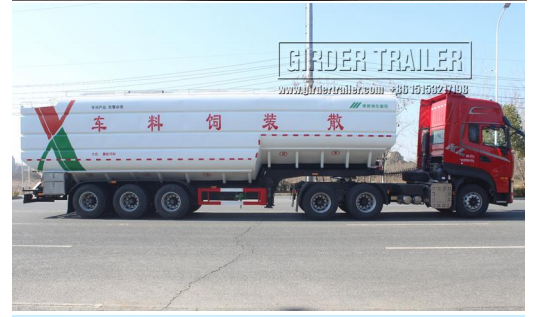

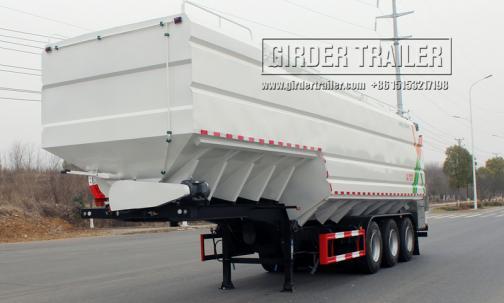

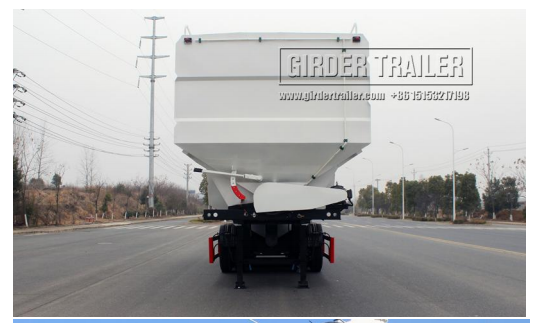

BULK FEED SEMI TRAILER(SCREW TYPE)
The auger-type bulk feed transporter adopts spiral auger system for sealed automatic loading and unloading. Unlike ordinary box-type trailers which rely on labor-intensive bag-handling operations with material spillage and contamination risks, this bulk feed vehicle can directly connect to farm silos. It features fully-enclosed conveying, low feed loss, multi-compartment design for different feed formulas, greatly improving transport efficiency and cutting overall operating costs. The auger-type bulk feed transporter is mainly used for dry powdery and pellet-shaped bulk feed, including compound pellet feed, concentrated feed and premix for pigs, cattle, sheep, poultry. It can also transport grain raw materials such as corn and soybean meal. Multi-compartment tank design allows delivering several different feed formulas in one trip. It is not suitable for wet, caking, sticky or corrosive materials. It delivers feed directly from feed mills to large farms and unloads automatically into silos.
1.PARAMETERS
| Item | specifications | Remark |
|---|---|---|
| Material | High strength Carbon steel T700 or manganese steel Q345B | |
| Tank body | Aluminum /steel with height optional 3-5 compartments | |
| Main beam | H beam | beam extendable optional |
| Axles | 11.5ton, 13 ton(16ton, 20ton) capacity | FUWA,BPW,AN,CTC or GT Brand |
| Suspension | Mechanical suspension | Air suspension optional |
| Leaf spring | Leaf spring | Air bag lifting optional |
| Tire | 11R22.5 ,12R22.5 ,315/80R22.5,385/65R225 | Other size and brand optional |
| King pin | 2”/3.5” bolt type,SAE standard | Welding on type optional(JOST) |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Platform | Checked plate 3mm | Other thickness optional |
| Side beam | 160mm | |
| Twist locks | Optional | |
| Braking system | Dual line brake system,Double air chamber ,brake valve,40L air tanks ;ABS optional | |
| Electrical | LED light , 7 ways ,24V | |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting | |
| Accessory | Tool box,oil tank,spraying system optional |
Above date can be customized per your local regulation and requirement.
Engineered with an ultra-lightweight design, our 3-axle bulk feed transport semi-trailer boasts a low center of gravity, high strength, and superior handling. Built on a robust 3-axle low-deck skeleton chassis, the main beam is constructed with precision-engineered top flanges, bottom flanges, and webs. The heavy-duty configuration includes a 90# traction pin, 28-ton landing gear, 13-ton Guangdong Fu Hua axles, 16-ton brake pads, 12R22.5 tires, ABS, 8-leaf spring suspension, and a comprehensive safety braking system (4 large and 2 small air chambers). Additional standard features include a toolbox and a spare tire carrier.

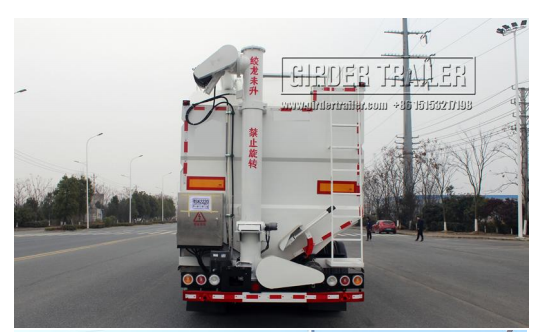

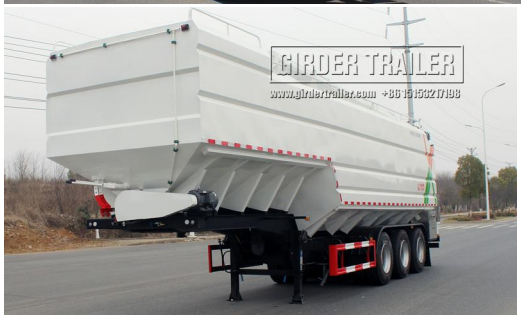

The high-strength steel tank is divided into 5 independent compartments, allowing for precise control over the unloading sequence and speed of each section. Powered by 4 augers (two bottom horizontal augers, a tail lifting auger, and a top discharge auger), this bulk feed tanker is designed to efficiently transport pig feed, poultry feed, and other animal feed.
Electric Auger System:
The 4 augers are driven by four 5.5KW motors powered by an external 380V power supply. The top discharge auger (9 meters) is hydraulically lifted and can rotate 180° left or right. Optional wireless remote control and onboard generators are available for enhanced convenience.
Hydraulic Auger System:
This full-hydraulic unloading mode utilizes a PTO (Power Take-Off) from the transmission to drive a hydraulic pump and motor, ensuring smooth and powerful operation. Like the electric version, it features a 9-meter top auger with 180° hydraulic rotation. Optional wireless remote control is also available.
| Category | Item | Specifications / Description |
|---|---|---|
| Core Parameters | Effective Tank Capacity | 61.4 – 66 m³ |
| Number of Compartments | 5 (Customizable options available) | |
| Rated Discharge Height | 8 meters | |
| Rated Discharge Distance | 9 meters (Optional) | |
| Unloading Speed | 600 – 800 kg/min | |
| Total Unloading Time | 25 – 40 minutes | |
| Top Auger Rotation Angle | ±180° | |
| Residual Rate | ≤ 0.02% | |
|
Drive & Control System |
Power System | Powered by an external 380V three-phase power supply, driving four 5.5KW asynchronous motors. Ensures low vibration, minimal noise, and superior waterproof & dustproof performance. |
| Electrical Protection | Premium CHINT electrical control system with interlocking protection against phase loss, undervoltage, and reverse rotation. | |
| Auger Technology | Patented intermediate support structure with maintenance-free bearings. Wireless remote control is available for precise steering of the lifting auger. | |
|
Tank Craftsmanship |
High-Strength Tank | Constructed using Angang lightweight high-strength steel plates. Side walls are formed in a single pass for enhanced strength and sleek appearance. Sloped top design maximizes the filling coefficient and safety. |
| Paint Finish | Fully automated shot-blasting and powder-coating process, meeting the European “Double 1000” standard (1000h salt spray & 1000h aging resistance). Ensures high adhesion, excellent corrosion resistance, and a glossy finish. | |
| Door Mechanism | Pneumatic or automatic compartment doors are available as optional upgrades for enhanced convenience. |
|
|
|
|
|
|
|
|
|
3.Functions and features:
High-Efficiency Auger Bulk Feed Transport semi trailer
Our Auger Bulk Feed Truck is an advanced, specialized transport solution designed to streamline the logistics for feed mills and large-scale farms. Whether transporting pig feed, poultry feed, or other animal feed, this vehicle offers unmatched efficiency and versatility.
-
Automated & Cost-Effective:
Equipped with a high-performance spiral conveyor system, it enables fully automatic loading and unloading. This eliminates the need for manual labor and packaging bags, significantly reducing transportation costs and maximizing turnaround time.
-
Multi-Compartment Design:
The tank can be customized with 2 to 4 independent compartments, allowing for the simultaneous transport of different types of bulk fodder without cross-contamination.
-
Sealed & Safe Transport:
The fully enclosed tank ensures that livestock feed remains completely sealed during transit. This prevents moisture, pollution, and spillage, guaranteeing the highest quality and nutritional value of the feed.
-
Flexible Discharge Options:
We offer both electric auger and hydraulic auger systems to adapt to various working environments. The top discharge tube can be hydraulically lifted and rotated 180°, ensuring precise alignment with farm storage silos.
-
Robust Construction:
Built on reliable heavy-duty chassis with a high-strength steel tank, our farm feed delivery trucks are engineered for long-lasting durability and stable performance on diverse road conditions.
