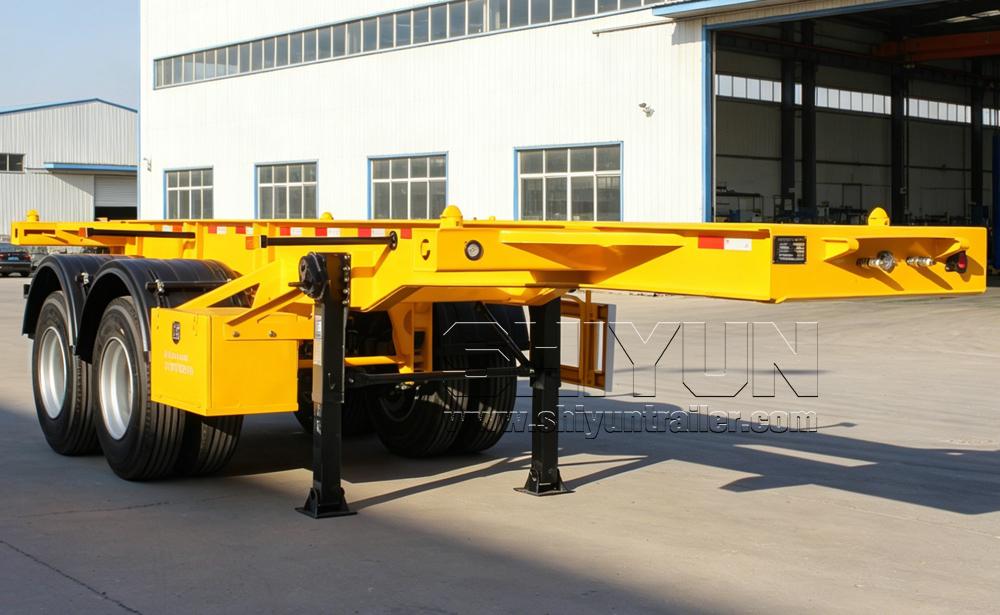

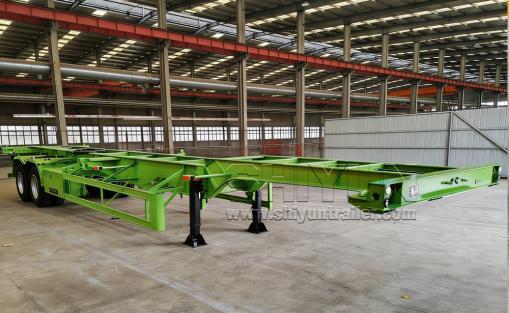

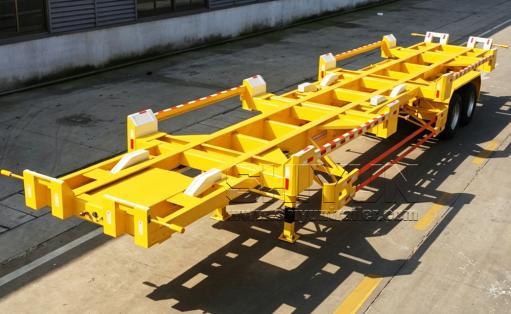

SKELETON SEMI TRAILER

To accommodate the transportation of standard ISO shipping containers, SHIYUN GROPU GIRDER TRAILER offers a range of skeletal semi-trailers and flatbed container semi-trailers engineered for efficient intermodal transshipment. Our product portfolio supports the full spectrum of standard container dimensions, including 20 ft, 30 ft, 40 ft, 45 ft, 48 ft, and 53 ft, with 20 ft and 40 ft units representing the most widely deployed configurations in global logistics.

Axle configurations are fully customizable to meet varying payload requirements. With a standard gross load capacity ranging from 20 to 60 metric tons, GIRDER TRAILER s are available in two-, three-, or four-axle setups, ensuring optimal load distribution and road safety across diverse operational conditions.

Skeletal container semi-trailers — also referred to as container chassis — are purpose-built for dedicated container haulage. The defining feature of this trailer category is the integrated twist-lock mechanism, which provides secure point-to-point locking of containers to the chassis, and is an essential component for safe and compliant container transport. For 40ft and 45ft container semi‑trailers, the back‑to‑back type design enables simultaneous loading of two 20ft containers, which greatly improves customers’ transportation efficiency.

GIRDER TRAILER chassis are fully compatible with both standard dry freight containers and temperature-controlled reefer containers. For operators transporting reefer units, we provide factory-installed, pre-configured mounting provisions to accommodate genset (generator set) installations, streamlining on-site deployment. Additionally, our skeletal semi-trailers can be paired with a variety of bespoke container solutions manufactured in-house, offering tailored configurations to meet specialized cargo-handling requirements.

1.MAIN MODELS:

• 20ft container chassis trailer (straight beam & gooseneck type)
• 40ft container chassis trailer (straight beam& gooseneck type)
• 45ft container chassis trailer (straight beam& gooseneck type)
• Superlink container chassis trailer
• Length extendable skeleton trailer
• Sliding skeleton trailer
• Other size container chassis
• Skeleton tipper trailer
• Terminal trailer (bomb cart)
• Container side lifter trailer

Our product portfolio is not limited to the above‑mentioned models. Custom‑engineered manufacturing is available to meet your specific application requirements.

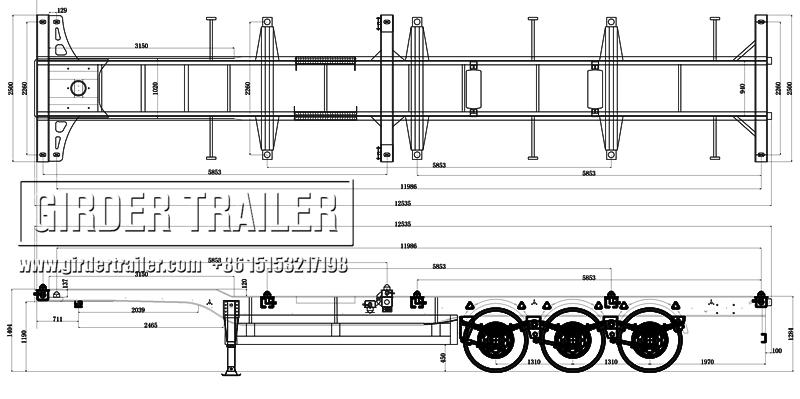

2.PARAMETERS

Above date can be customized per your local regulation and requirement.

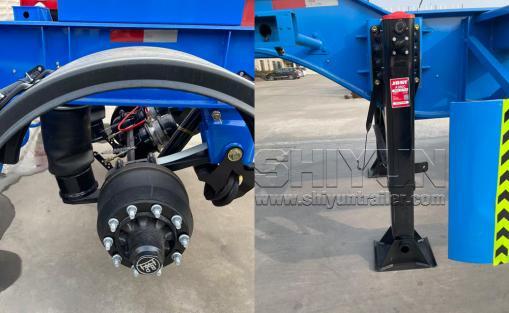

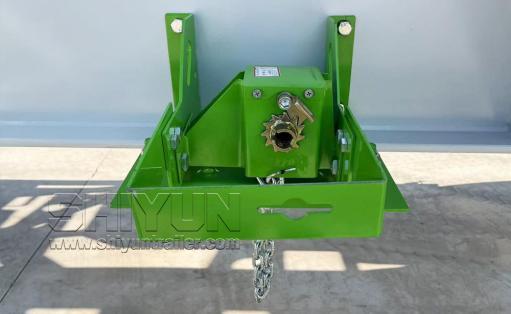

All fittings and components on SHIYUN GIRDER TRAILER container skeletal semi-trailers are sourced from premium-tier suppliers, including BPW and Fuwa axles, JOST landing gear, and Triangle or Double Coin tires. We also offer flexible customization options across various price tiers to align with your specific requirements and budget.

3.Functions and features:

In accordance with ISO standard container dimensions, the most prevalent lengths for container skeletal semi-trailers are 20 ft, 40 ft, and 45 ft. Based on functional requirements and structural design characteristics, container skeletal carriers can be classified into the following categories.

20 footer skeletal container trailer :

or 20 ft container transport, straight-beam skeletal trailers were historically the predominant configuration. However, gooseneck skeletal trailers offer enhanced operational performance and distinct practical advantages. The gooseneck design effectively reduces deck height, making it particularly well-suited for routes with bridge clearances and other vertical restrictions. SHIYUN 20 ft container skeletal semi-trailers come standard with a dual-axle configuration, with tri-axle versions available upon request to accommodate specialized heavy-haul requirements.

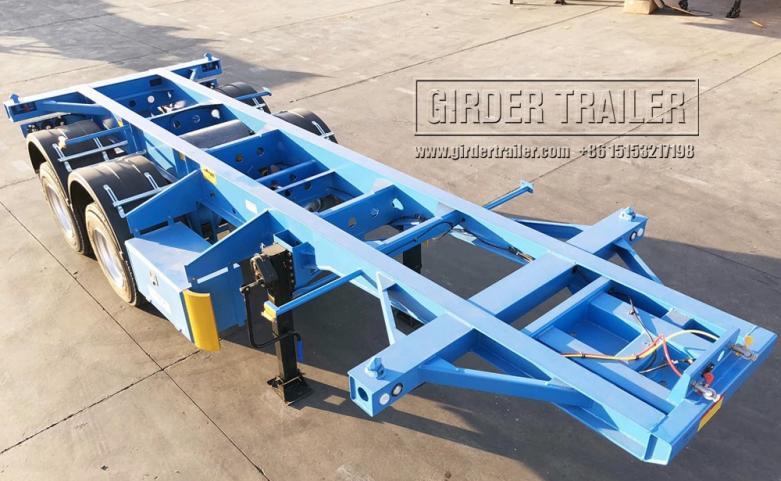

2 axles 20ft container chassis trailer (straight beam)

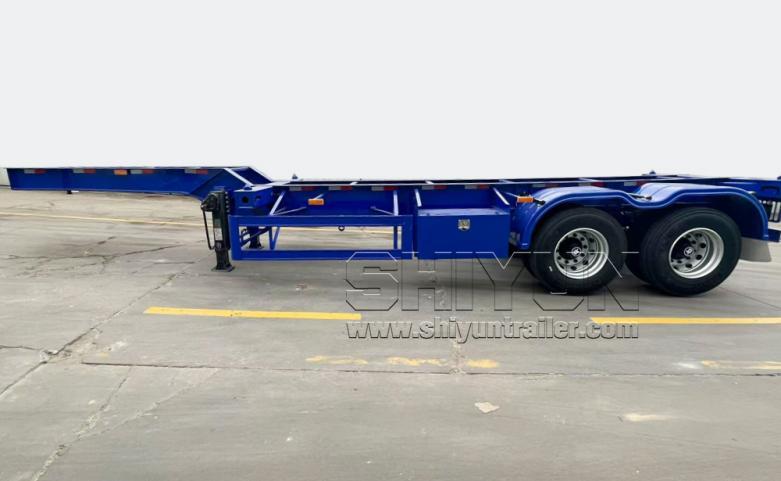

2 axles 20ft container chassis trailer (big gooseneck)

40/45 footer skeletal container trailer :

For 40 ft and 45 ft container skeletal semi-trailers, we offer two structural configurations: straight-beam and small gooseneck. The small gooseneck variant effectively reduces deck height, providing enhanced route versatility in height-restricted corridors. A 40 ft skeletal trailer is capable of carrying either a single 40 ft container or two 20 ft containers simultaneously, and is typically fitted with 4 to 14 twist locks. For back-to-back dual 20 ft container transport, a minimum of 8 twist locks is generally recommended to ensure secure load fixation. To optimize payload capacity, many customers opt for single-tire (385/65R22.5) or aluminum alloy chassis configurations, both of which contribute to significant weight reduction.

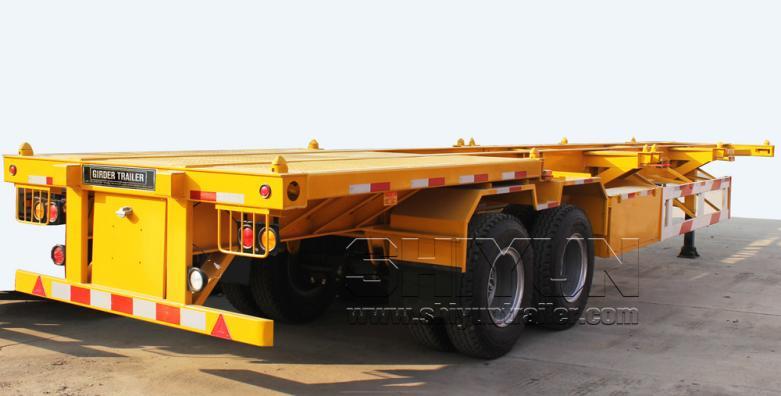

2 axles 40 ft container chassis trailer (Straight beam)

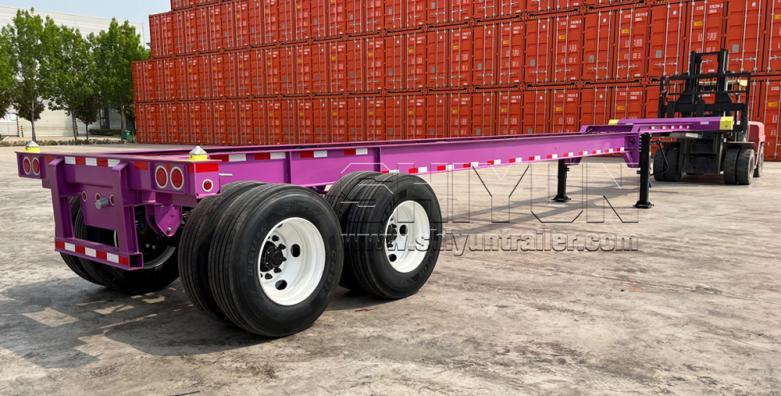

2 axles 40 ft container chassis trailer (small goose neck)

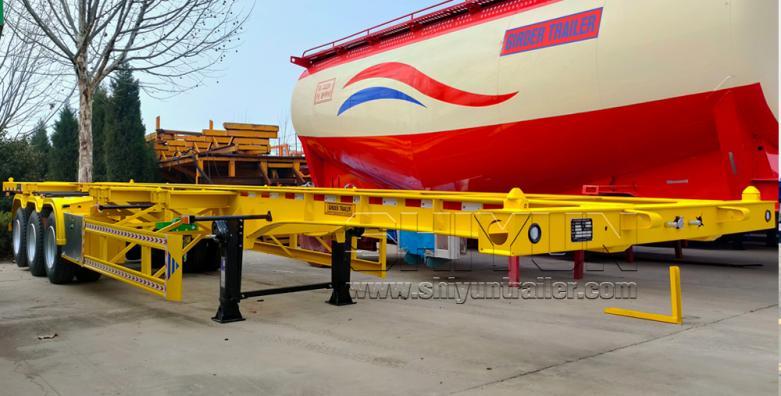

3 axles 40 ft container chassis trailer (Straight beam)

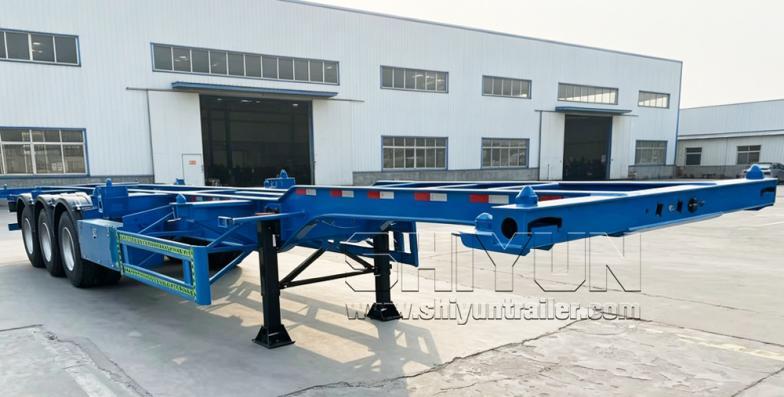

3 axles 40 ft container chassis trailer (small goose neck)

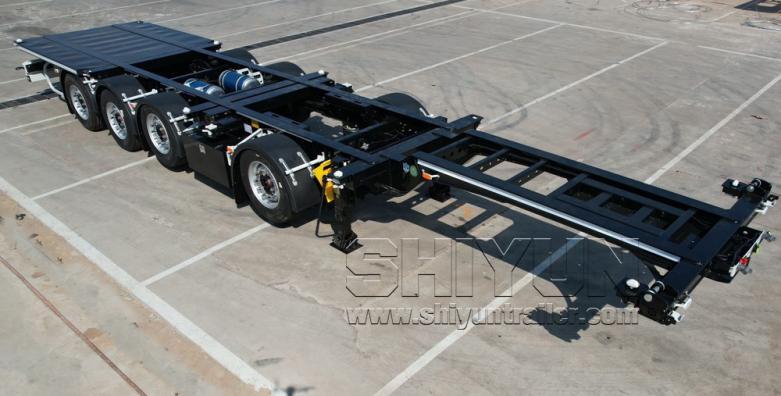

4 axles 40ft skeleton trailer with 1^st axles lifting

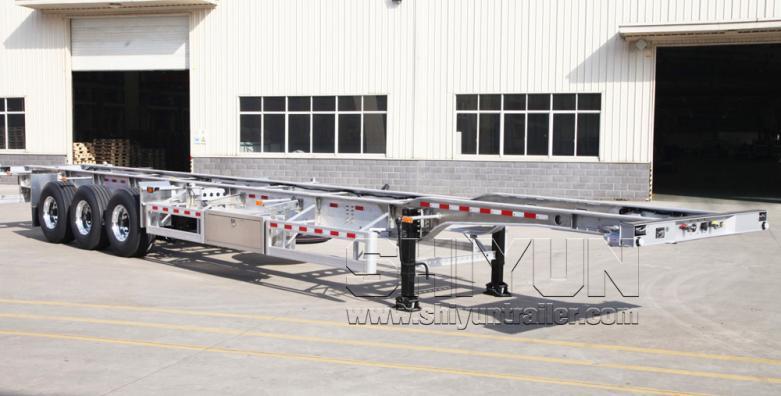

Aluminum skeleton container semi trailer

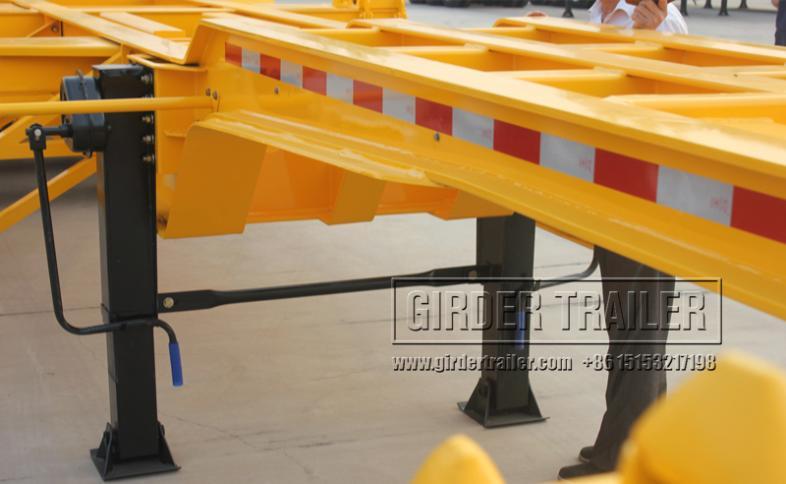

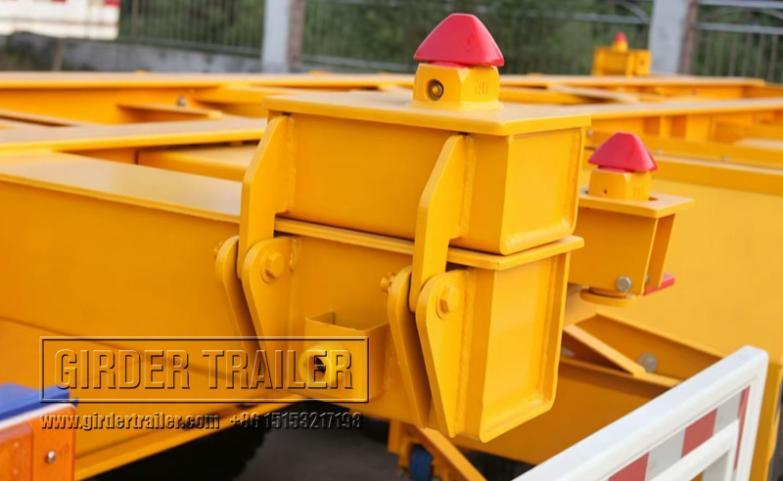

Small gooseneck details ：

Length extendable skeletal container trailer :

extendable telescopic skeletal semi-trailer offers exceptional versatility, with an adjustable chassis that accommodates containers of varying lengths. A sliding telescopic frame configuration is also available as an optional design.

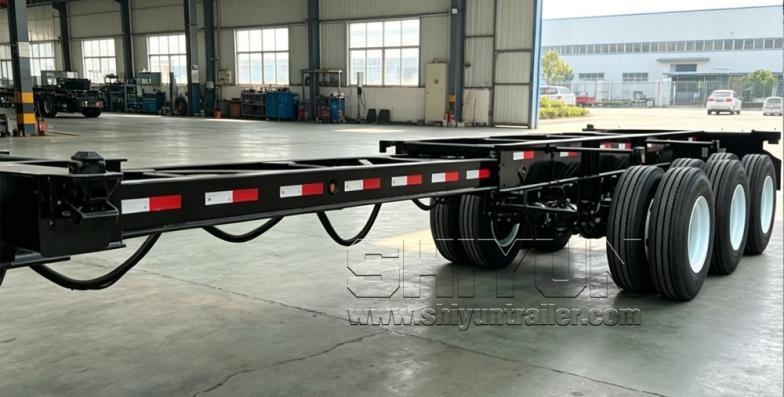

Length extendable telescopic container trailer chassis

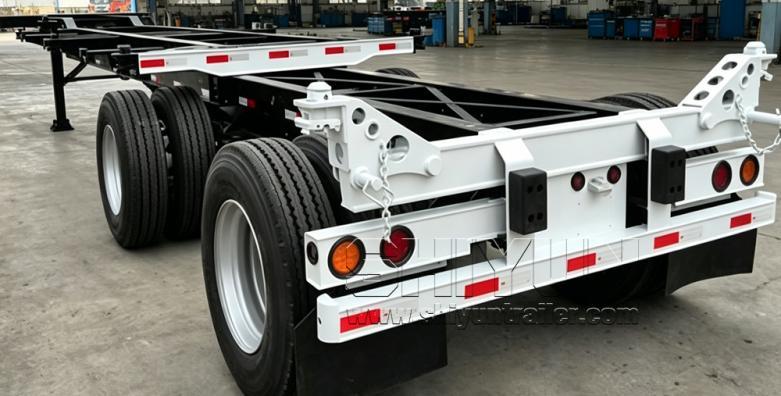

Length extendable sliding container trailer chassis

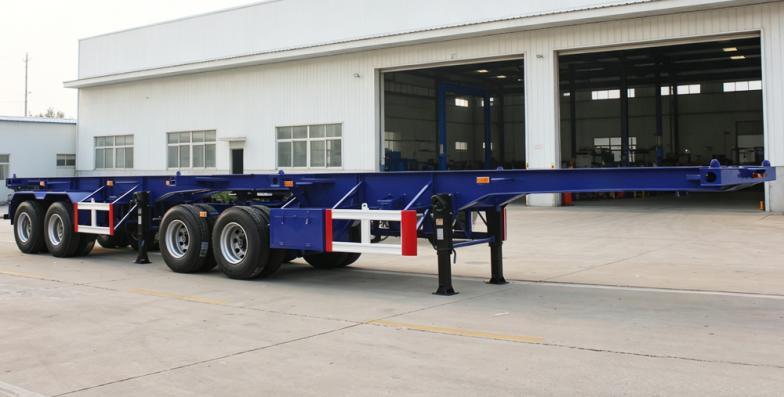

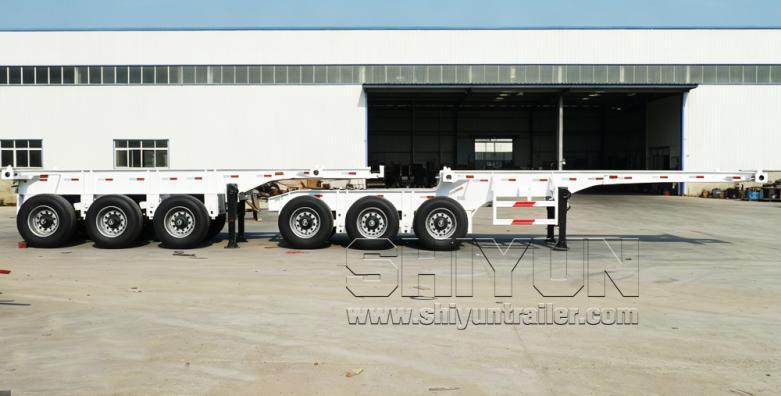

Superlink skeletal container trailer :

For Superlink skeletal carriers, we offer flexible combination configurations: the front unit can be configured as a 20 ft chassis with the rear unit as a 40 ft chassis; alternatively, both units can be set to 20 ft or 40 ft — providing multiple configuration options ideally suited to the regulatory and logistical requirements of select markets

skeletal container dump trailer :

To facilitate efficient unloading of containerized cargo, the skeleton dump semi-trailer is specifically engineered to meet this operational requirement. The container is securely fastened to the chassis via twist locks, and cargo discharge is

achieved by opening the container’s rear doors while the chassis tilts hydraulically. This type of vehicle is capable of transporting standard containers while also providing self-discharging functionality for direct cargo unloading — delivering a versatile, multi-purpose solution that consolidates multiple applications into a single unit.

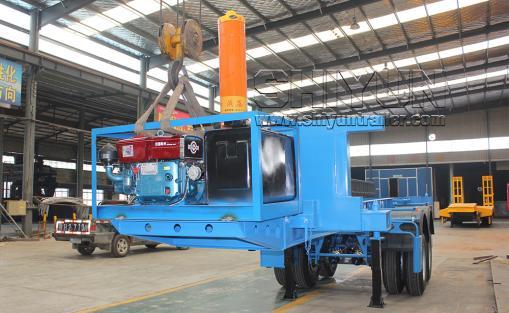

2 axles 20ft skeleton dump trailer

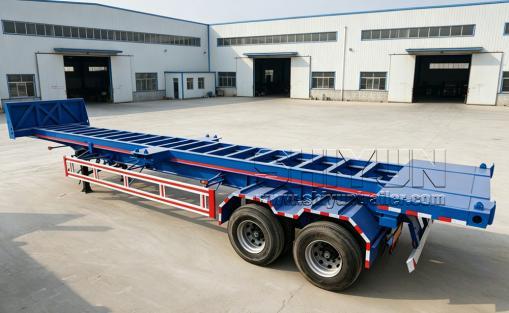

2 axles 40ft skeleton dump trailer

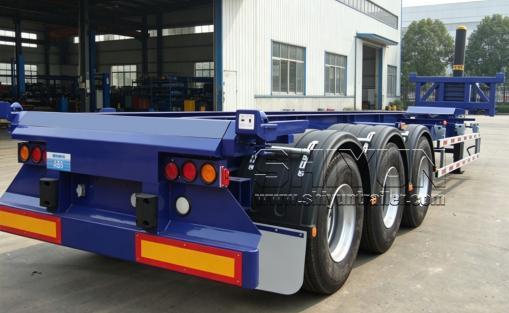

3 axles 40ft skeleton dump trailer

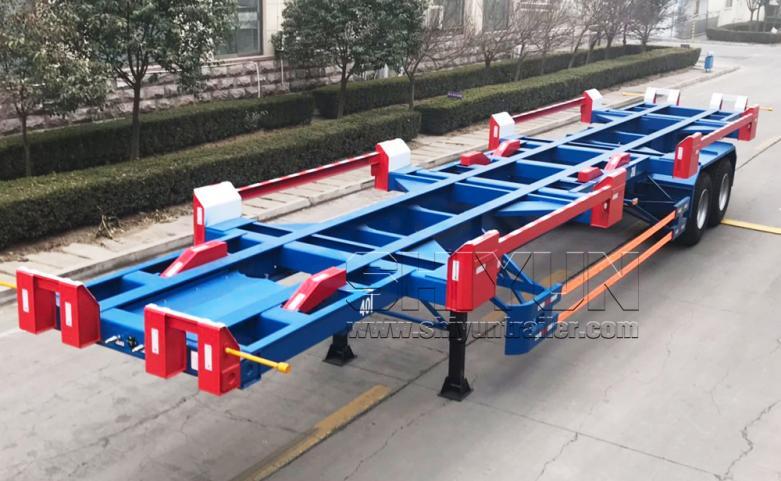

Terminal trailer （bomb cart）:

To meet the specific requirements of some port companies, we can also provide terminal trailer(bomb cart), which is Special Trailer With Container Guide For Shuttling Within Container Terminal. They are generally 45 feet in length and can carry two 20ft containers, one 40ft container or one 45ft container with stoppers equipped. Our design is very precise and rigorous with strong load capacity. To meet the specific operational requirements of port terminal operators, we also offer terminal trailers — purpose-built units equipped with integrated container guides, designed for high-frequency shuttle operations within container terminals. Typically 45 feet in length, these trailers can accommodate two 20 ft containers, one 40 ft container, or one 45 ft container, and are fitted with precision-engineered container stops.

Our design philosophy emphasizes structural precision and rigorous engineering, delivering exceptional load-bearing capacity. Key design features include a cornerless frame with front and rear angled buffers, as well as heavy-duty outer container guides. The center container stops are spring-loaded, enabling automatic accommodation of different container sizes and hands-free twin 20 ft spacing. The SHIYUN terminal trailer features a twist-lock-free design, enabling rapid loading and unloading while ensuring highly efficient cargo movement throughout the terminal area.

Given that coastal port environments are characterized by high humidity, corrosion-resistant paint coatings and advanced surface treatments are critical design requirements. Furthermore, as terminal trailers are subject to repeated impact loads during container handling operations, high-strength materials and heavy-duty construction are defining features of this model.

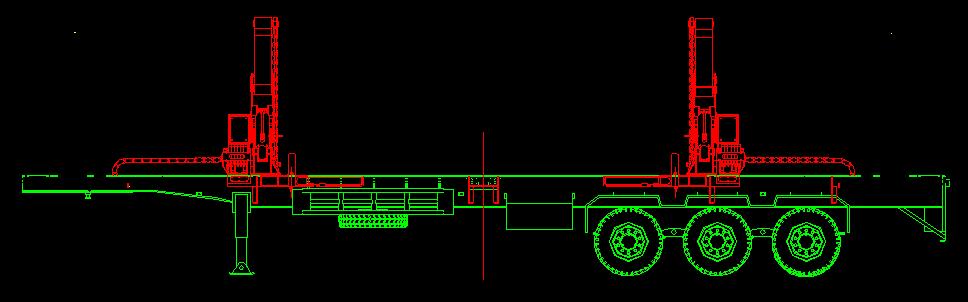

Side lifter container trailer :

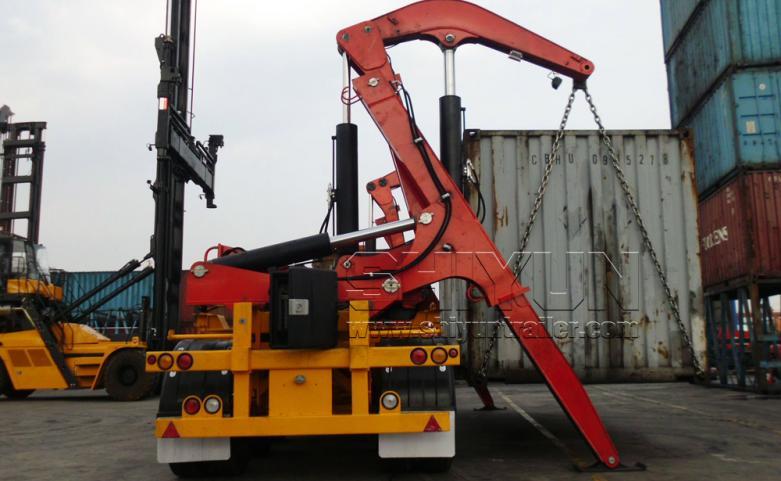

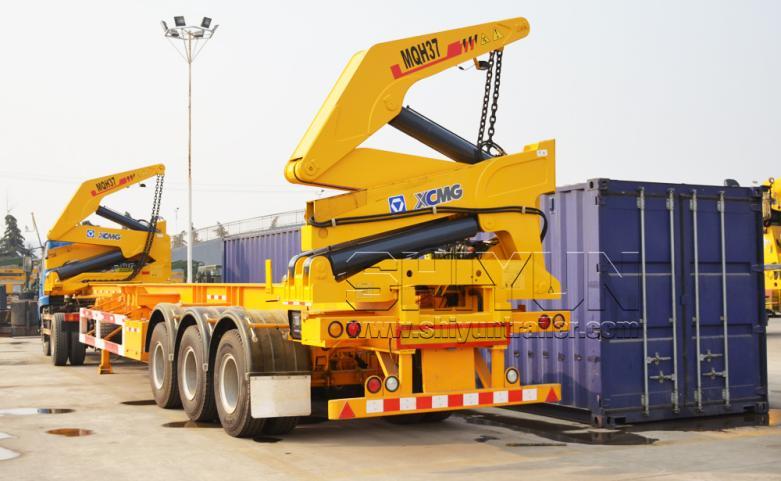

The SHIYUN GIRDER TRAILER self-loading and unloading side loader container trailer is widely deployed across ports, railway stations, and logistics yards for container handling and transit operations. Equipped with an XCMG MQH37 lifting crane, this trailer enables autonomous loading and unloading of containers without reliance on external lifting equipment, significantly streamlining container transshipment workflows.

The side loader is designed to handle, stack, and transport 20 ft, 40 ft, and other standard container sizes. It supports double-layer stacking along a single row, maximizing operational efficiency and equipment utilization.

SHIYUN TRAILER has developed a portfolio of patented technologies underpinning this product, including container side-load technology, dual-pump and dual-loop hydraulic systems, advanced electro-hydraulic proportional control, intelligent safety protection systems, and wireless remote control technology. Renowned for its reliability, efficiency, and safety, the SHIYUN self-loading side loader is trusted by customers worldwide.

Integrating lifting, handling, and transit functions into a single unit, the trailer facilitates efficient side loading of containers and other cargo. The independently sliding center hanger, in coordination with the front and rear hangers, enables seamless handling of empty or loaded 20 ft, 40 ft, and other cargo configurations — delivering exceptional versatility and high-efficiency performance for our customers.

Container stacking up to two layers is achievable via the lifting system, further enhancing operational throughput and overall equipment utilization. The system requires only a single operator, with the advanced control system supporting both close-range and remote operation. Equipped with a wireless remote controller, the SHIYUN side loader enables the operator to control the stabilizing legs and hanger mechanisms from a distance of up to 30 meters. A Kubota power engine is available as an optional configuration.

Backed by professional engineering, proven quality, and comprehensive configurations, we deliver efficient, safe, and durable container skeletal semi-trailers to customers worldwide. Whether for standard freight haulage, port shuttle operations, cold chain logistics, or intermodal transport, we provide tailored solutions engineered to your specific operational requirements — helping you maximize efficiency and minimize total cost of ownership. Choosing SHIYUN means choosing consistent quality, dedicated service, and a trusted long-term partner

4.Delivery and Shipment

As the external dimensions of a skeletal semi-trailer exceed those of a standard 40-foot shipping container, it cannot be fully loaded into a 40-foot container under normal conditions. To address this, we generally employ three shipping methods:

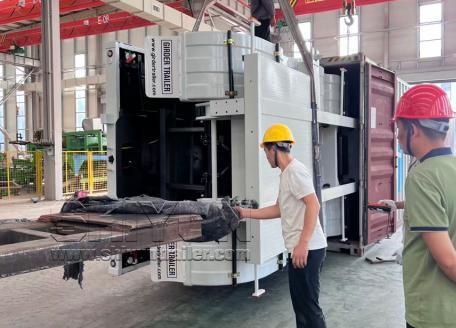

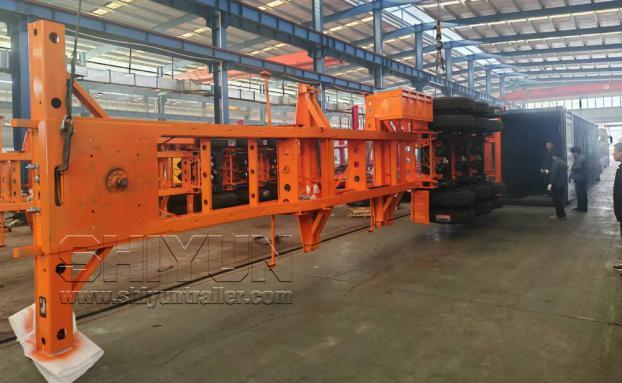

40-Foot Container Shipping:

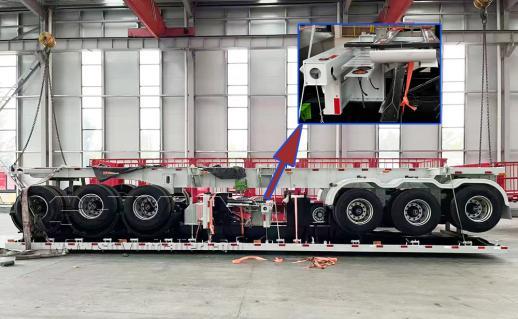

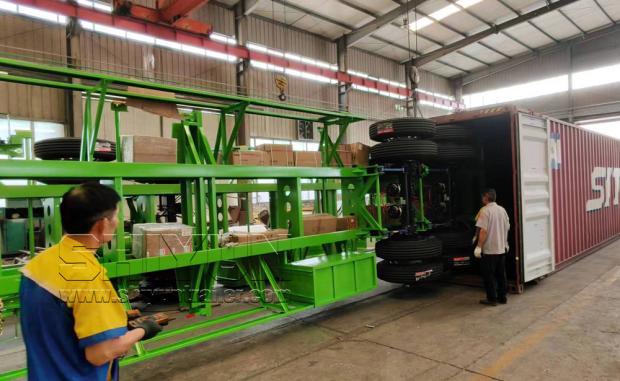

The rear section of the semi-trailer is detached prior to loading. Upon delivery, the customer can reassemble the rear section using the high-strength bolts provided. A single 40-foot container can accommodate 2 to 4 semi-trailers using this method

45-foot container shipping:

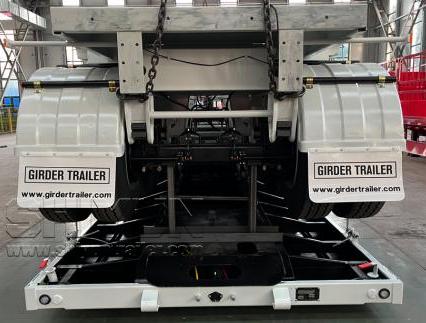

If the customer is willing to accept higher ocean freight rates, this is a preferable option, as it eliminates the need to detach the rear section of the trailer. The unit arrives at the destination fully intact, requiring no on-site reassembly. A single 45-foot container can accommodate 2 to 4 semi-trailers.

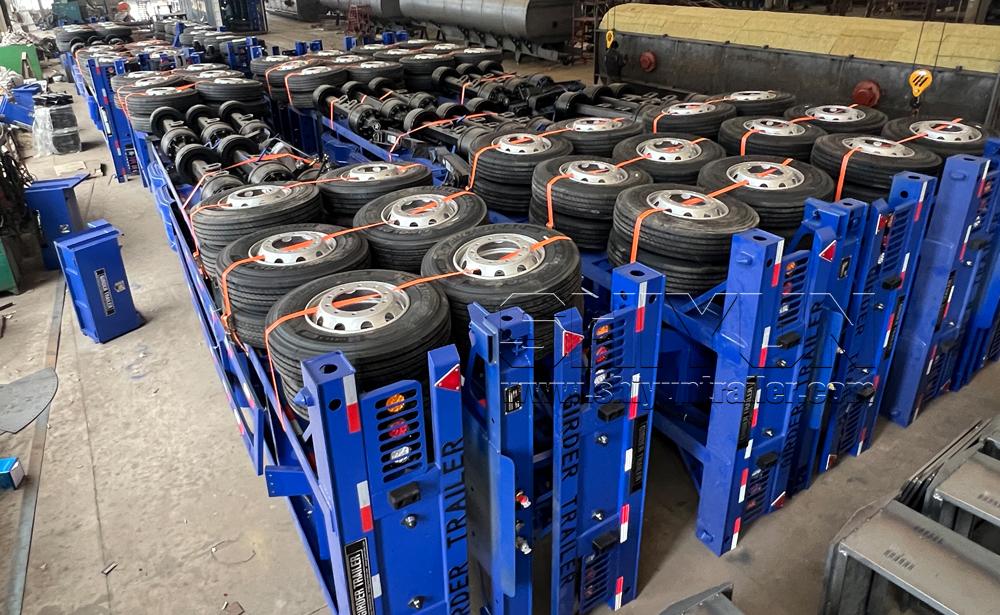

SKD/CKD container shipping:

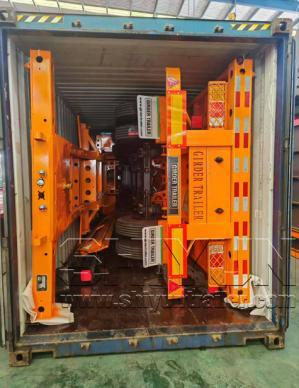

For customers with assembly or production capabilities, CKD or SKD packaging is also available to load into 40ft or 45ft containers. This solution can fully utilize the internal space of containers and effectively reduce ocean freight costs

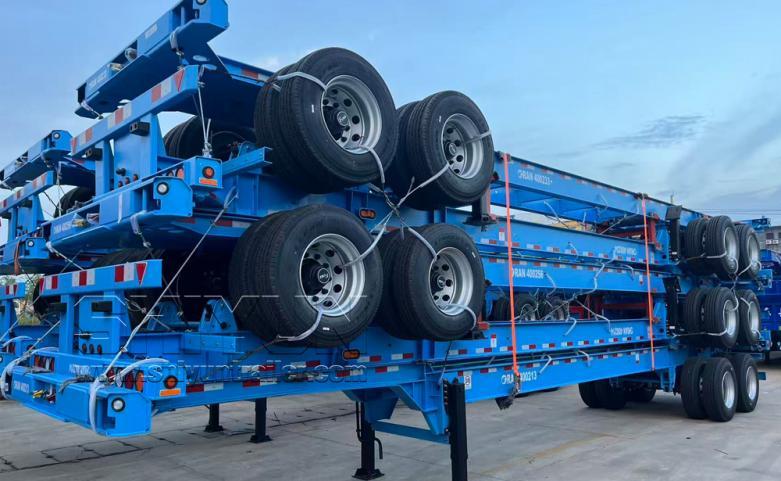

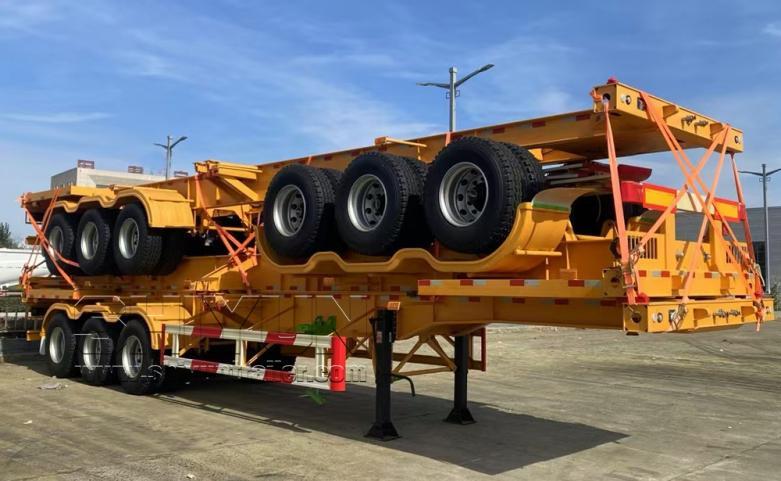

Roro ship / bulk carrier shipping:

Alternatively, some customers opt to transport the semi-trailers to the destination port via roll-on/roll-off (Ro-Ro) vessels or bulk cargo ships. This method allows the complete unit to be shipped without any disassembly, making it an ideal choice

for customers who prioritize structural integrity and wish to avoid on-site reassembly.
