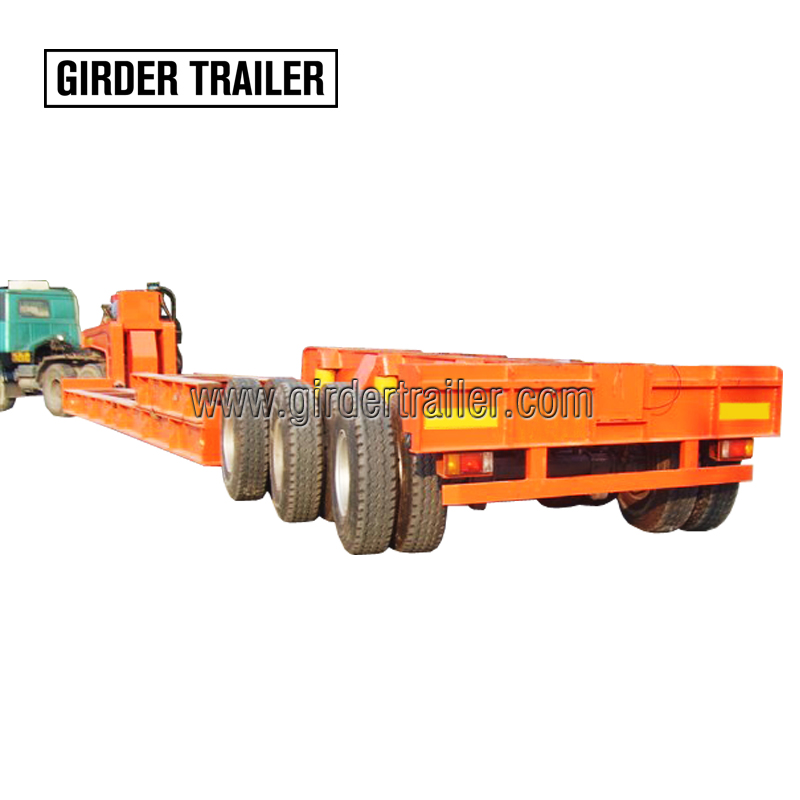

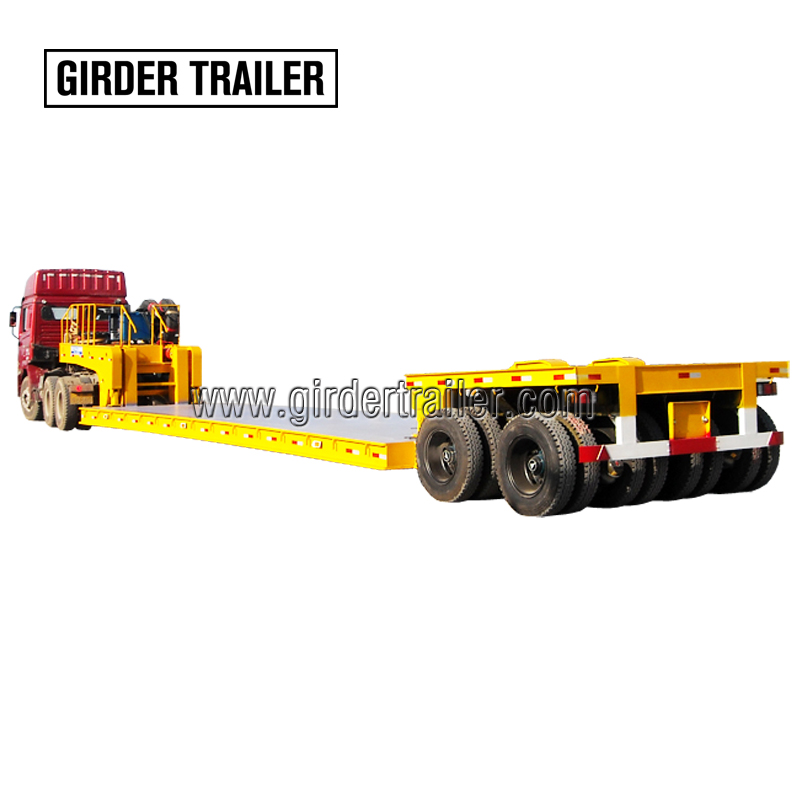

Lifting steering low bed trailer

Product Item：GTZX0301TDP

Payload (kgs):more than 60000kgs

hydraulic lifting suspension

Extendable length optional

steering type

Description

LOW BED TRAILER -Lifting steering low bed trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

DIFFERENT TYPES OF LOWBOY TRAILERmade by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers

Lifting steering lowboy trailer

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand“girder trailer”.hydraulic lifting lowboy trailer is a kind of drop deck lowboy trailer whose suspension can be lifting .It has two kind of lifting type:hydraulic steering or modular trailer steering (same as NICHOLAS) .The height can be lift adjustable and the gooseneck can be detachable optional. All the he parameters can be made according to your special requirement.

GIRDER BRAND TRAILER has two kinds of hydraulic lifting low bed trailers classified by suspension:

1.Servo/hydraulic steeringliftinglow bed trailer :connect with the hydraulic rotary from the gooseneck to realize all the axles steering ,and the suspension can make the trailer whole platform lifting .Hydraulic pendulum axles type platform trailer ,could be coupled with a low bed platform to transport oversize equipment over up to 200 tons

2.Modular typelow bed trailer :Can choose NICHOLAS type or GOLDHOLFER TYPE. It is equivalent to a modular trailer connect with a lowbed platform with gooseneck to transport cargoes .And the modular can be coupling with the same type modular .

Here we introduce our 1st one steering lifting low bed trailer :

Steering lifting low bed trailer-withhydraulicsuspension :

Features:

1. With steering axles .small turning radius, up to 55° steering angle.

2. Both automatically and manually all wheels steering.For manually operation we will install the power station and valve.

3. Lifting function:hydraulic lifting suspension be able to adjust height

4. Can make telescopic beam to realize length extension.

5. Higher strength steel to ensure the low platform not drop down.

6. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

7. Side bracket is an option(for increase overall width), removable and swinging

8. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

9.Gooseneck can be normal or hydraulic detachable type.

Parameters:

Model	GTZX0301TDP
Plate	checked plate or wood deck
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	13tons,16 tons capacity for the normal and steering Brand BPW,L1,YORK ,FUWA or Anhui axles.
Suspension	Hydraulic steering lifting susension
Tire	215/75R17.5 or other size optional
Rim	17.5*6.00 12 (Other size optional)
Kin pin	2’’/3.5’’bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake emergency relay valve, air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
