90T steering girder trailer

Product Item：GTST90T

Payload 90tons

dolly trailer with draw bar

50 meters long beam girder

Description

Type: 3 axles Hydraulic steering girder trailer：

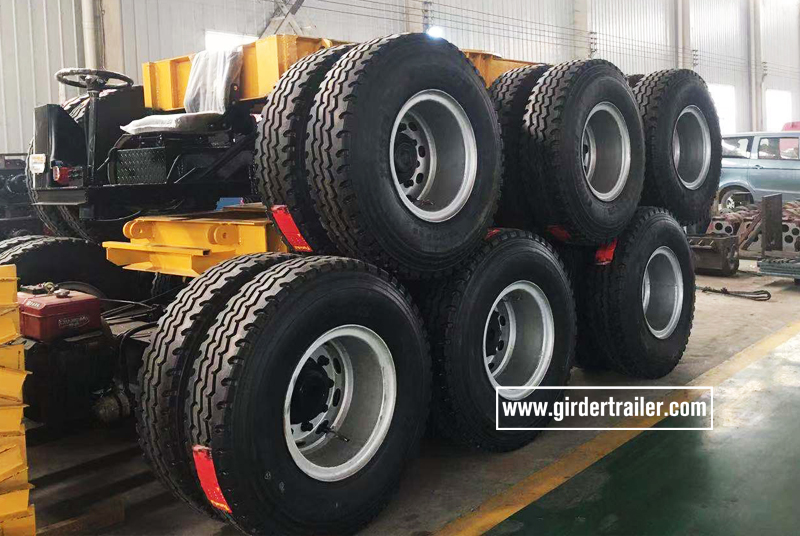

Tyre specifications	12.00R20
Rims	8.5-20

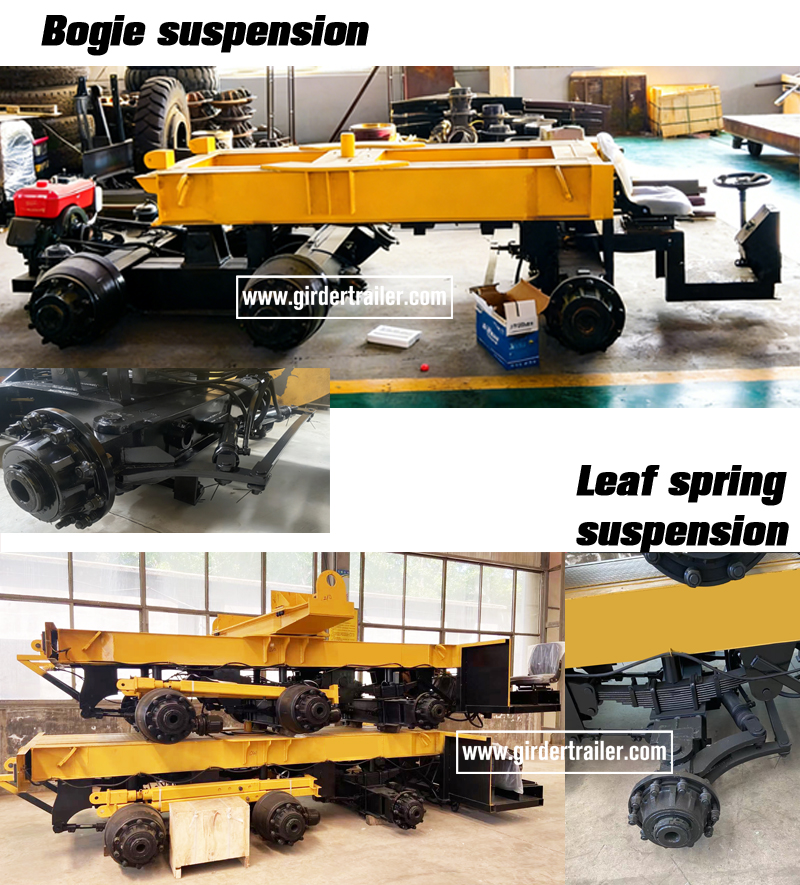

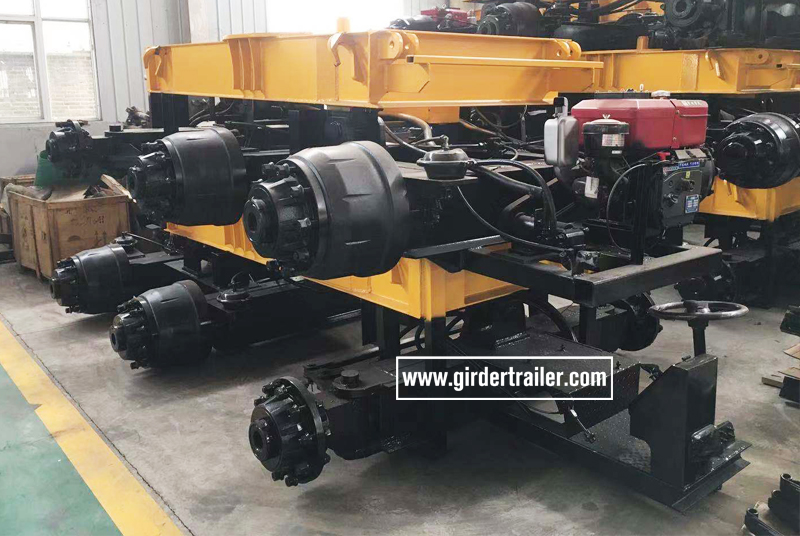

Axles	Normal payload axles + hydraulic steering axles
Material of the main beam	Q345B Mn steel
Steering type	Hydraulic steering with 20°-22°
Long beam length	20-60meters

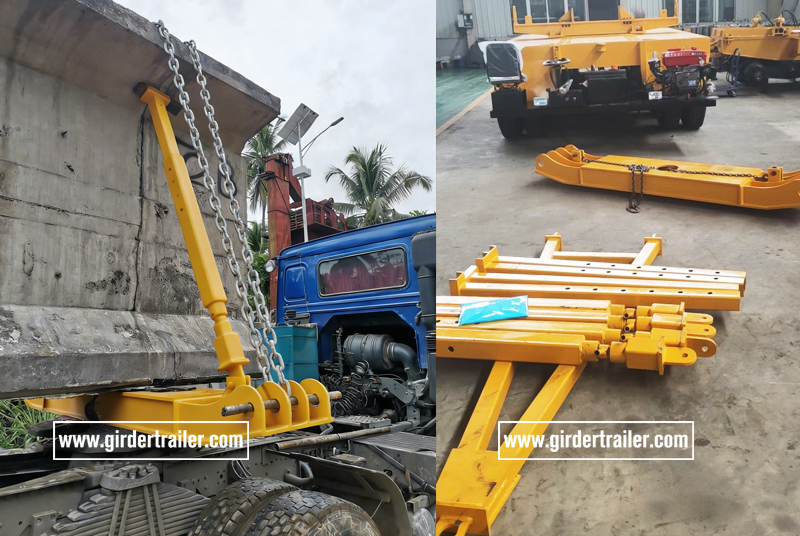

Supporting bars	4 pcs
Power pack	1

Girder trailer ---We also call it Long beam trailer.

Normally the long girder length is about 20-60meters .The weight is about 30tons-400tons .There are box shape girder and T shape girder.We can design different kinds supports for loading different shape girders.

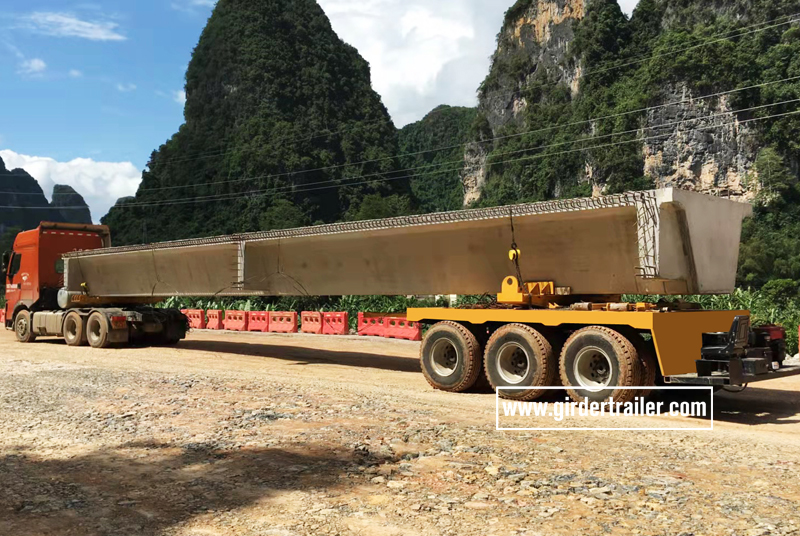

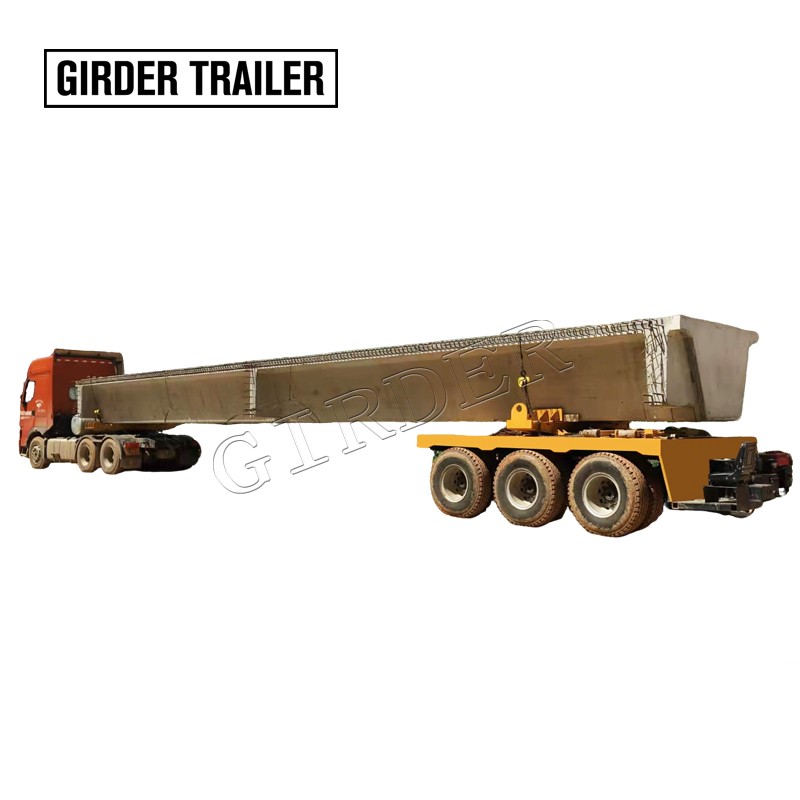

Long beam trailer is a kind of trailer sets for transporting long cargoes by loading two ends of them.It is the most effective and economical way for transporting over long cargo and abornormal shape cargo like girder,long steel structure, long steel pipe, precast concrete beam and long bridge sections.

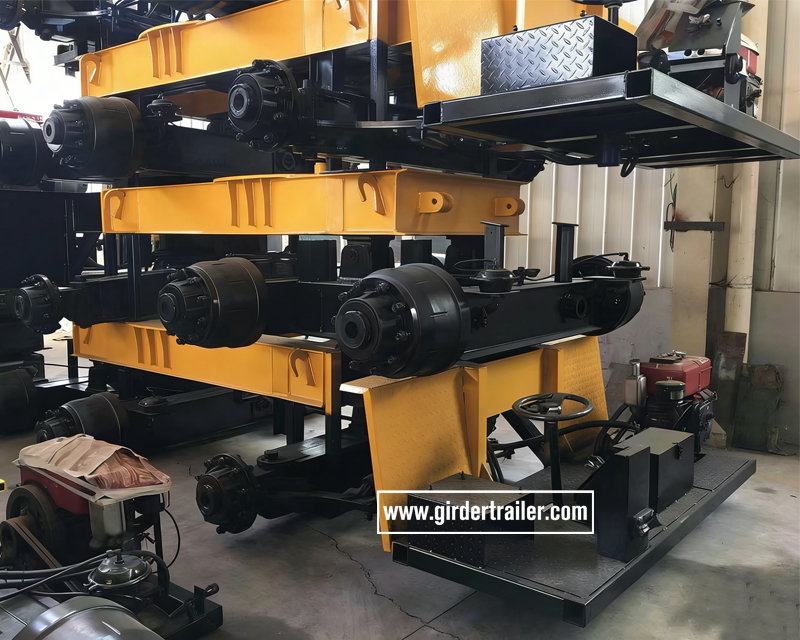

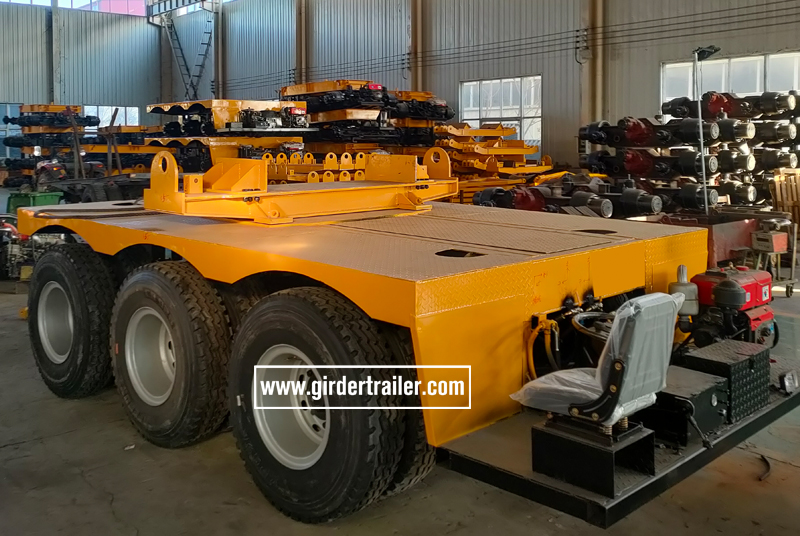

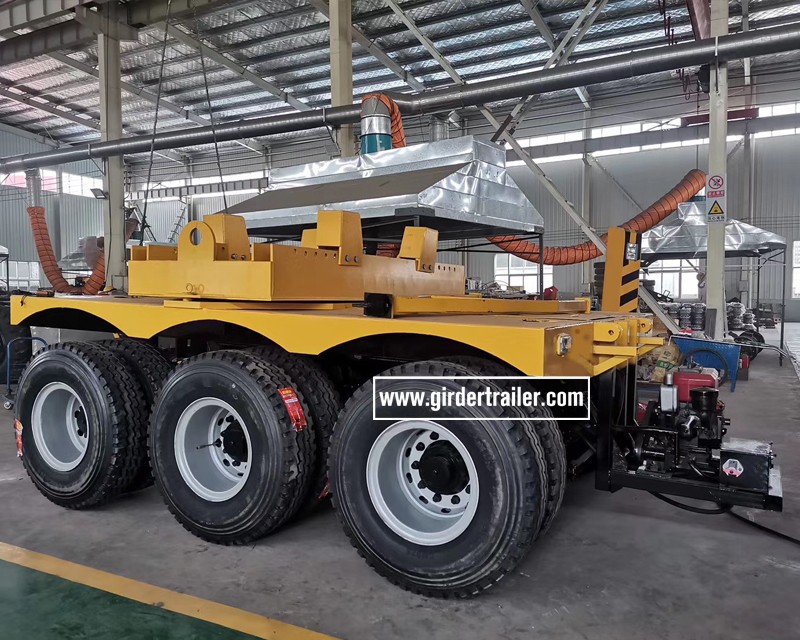

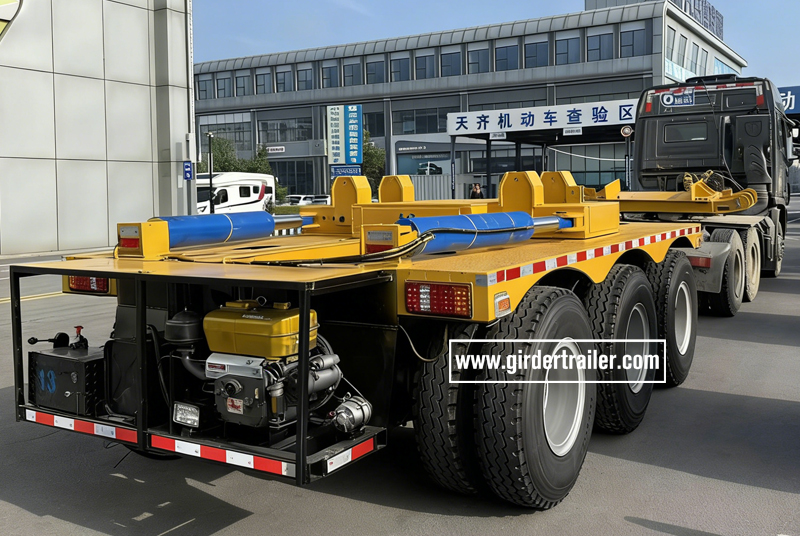

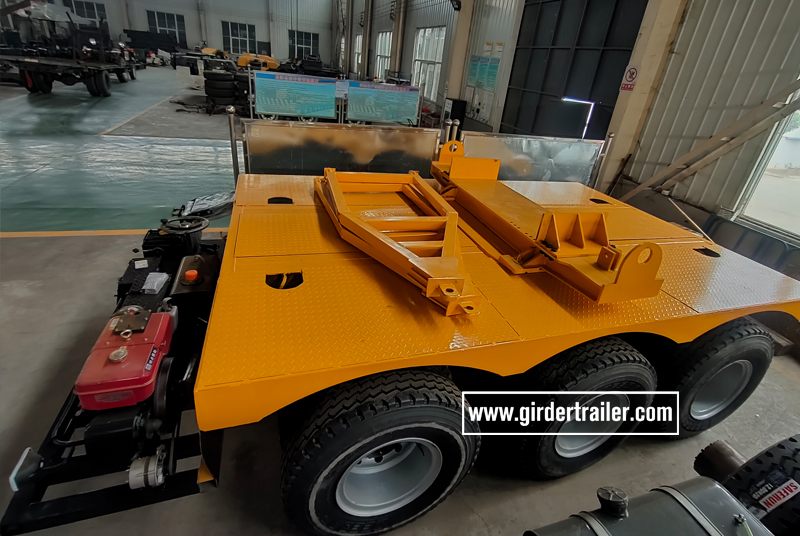

The trailer set has two parts: the front one should be towed by a prime mover or self-propelled. Rear part is like a steering dolly, should be equipped with a small diesel engine to realize manually steering.

So there are two method to transporting long beam :


Hydraulic long beam trailer	Self -propelled transporter

The axles number and trailer beam design depends on the weight of the girder.

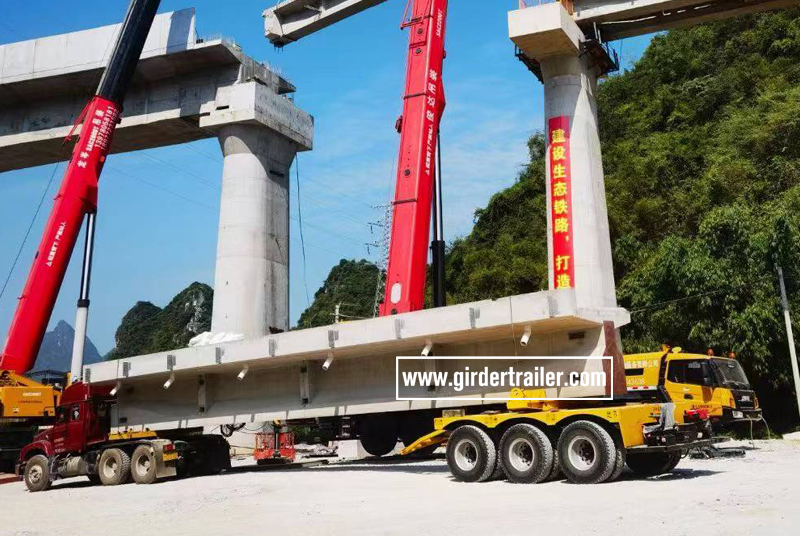

Long beam trailer is supporting launching girder and construct bridges, it fulfills the transport job between precast concrete bridge section yard to bridge construction site.

The trailer/transporter must be strong enough to load the long beam .

Self-propelled girder transporter Model:
