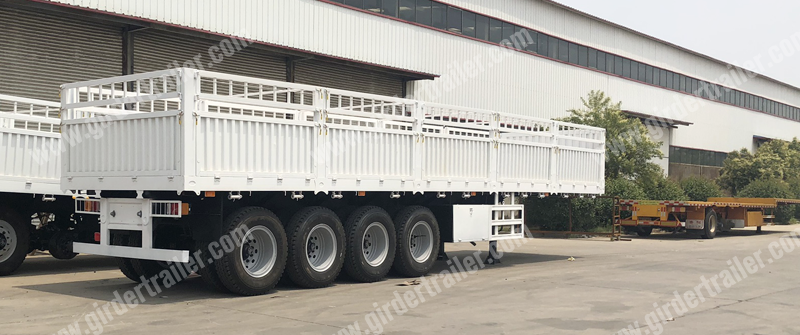

4 axles side fence semi trailer ,flatbed trailer

Product Item：GT0402CCY

Payload (kgs):More than 70000kgs

Material:Steel/Aluminum

Side fence:1000mm-3000mm

Axles:2/3/4 pcs optional

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For different kinds of cargo transporting ,we have different kinds of trailer solutions: flatbed trailer with side bar,drop side trailer,fence trailer,dry van trailer,wing van trailer,reefer trailer,curtain side trailer,log trailer,silo trailers and livestock trailers.

4 axles Fence semi trailer,side grill cargo flatbed trailer for sale :

Features:

1.The length can be from 10meters to 15meters.Most customers choose 40ft length.

2.Side board height can be from 600mm-3000mm.

3.Axles number can be 1,2,3 or 4 axles for transporting different weight cargo.

4.The material can be high strength Mn carbon steel or aluminum material.

5.Flat deck can be straight beam or step deck type.

6.The trailer main beam can be telescopic extension to realize the length extendable.

7.Can be with container twist lock to connect with the container.

8.Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.

Parameters:

Model	GT0402CCY
Size (L*W)	12500*2500 (mm)
Height	1100mm~1600mm
Payload	50000KG
Main beam	Heavy duty I beam.
Side walls	From 600mm-3000mm height
Side beam	140/160/180 mm channel beam
Platform	Checked plate 2,3 or 4mm thickness
Axles	2/3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional)
Suspension	Mechanical suspension (Air suspension/Bogie suspension optional)
Leaf spring	10pcs
Tire	12R22.5 315/80R22.5 295/80R22.5 12pcs (Other size optional)
Rim	9.00-22.5 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Twist locks	12 pcs
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
