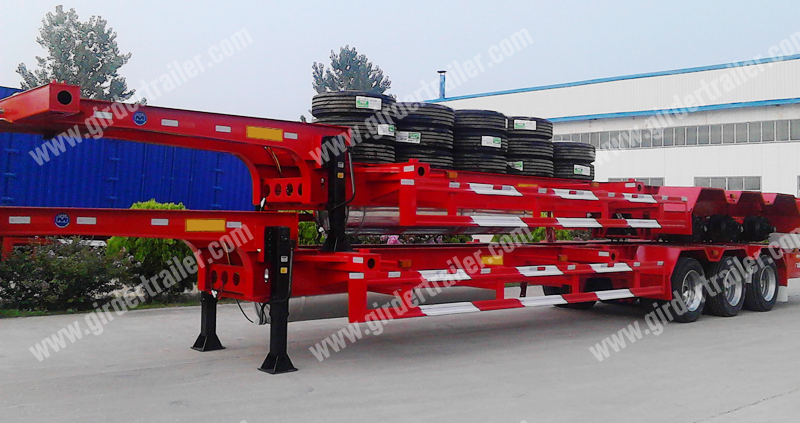

3 axles gooseneck 40ft container semi trailer,40 feet trailer chassis for sale

3 axles gooseneck 40ft container semi trailer,40 feet trailer chassis for sale

Product Item：GT1113JZG

Payload (kgs):50000

Tare weight (kgs):6500

Dimensions (mm):12400*2480

Axles :3 * 13ton capacity

Description

3 axles gooseneck 40ft container semi trailer,40 feet trailer chassis for sale

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For the shipping standard container transporting ,we have 2 kinds of solutions: skeletal trailer and flatbed trailer .

The standard shipping container has different size : 20foot ,30foot ,40foot ,45foot,48foot and 53 foot.The trailer can be made accordingly with different length.

Axles Number can be 1,2,3 or 4 axles for transporting different weight container.

The trailer body can be straight beam or goosneck type optional.

The trailers must be with container twist lock to connect with the container.

Parameters:

Model	OCT1113JZG
Size (L*W)	12500*2500 (mm)
Height	1100mm~1600mm
Payload	50000KG
Main beam	Heavy duty I beam.gooseneck type
Axles	3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 12pcs (Other size optional)
Rim	9.00-22.5 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Twist locks	12 pcs
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
