Width extendable tank transport trailer

Product Item：GTGC60T

Payload 60tons

oversized tank transporting

payload 30-200tons

axis steering or normal optional

Description

Oversized tank transport trailer -Width extendable tank transport trailer

Usage :Transport large-scale equipment tank body or wind tower.

Some large-scale production equipment are the focus of development in many fields, such as wind power, petrochemical, and engineering. The components of these large-scale production equipment, especially tank-type parts, have a diameter of more than 4 meters, more than 30 meters in length, more than 100 tons in weight.

This kind of trailers are professional for transporting the above cargo.

There are some mainly types of tank transporter trailers as follow:

Tank transport ultra low bed trailer ,

Width/length extendable oversized tank transport trailer

Steering axles tank transport trailer

Heavy duty lift dolly tank transport trailer with concave platform

Tank transport modular trailer

Clamped type tank transport trailer with concave platform

SPMT tank transport trailer

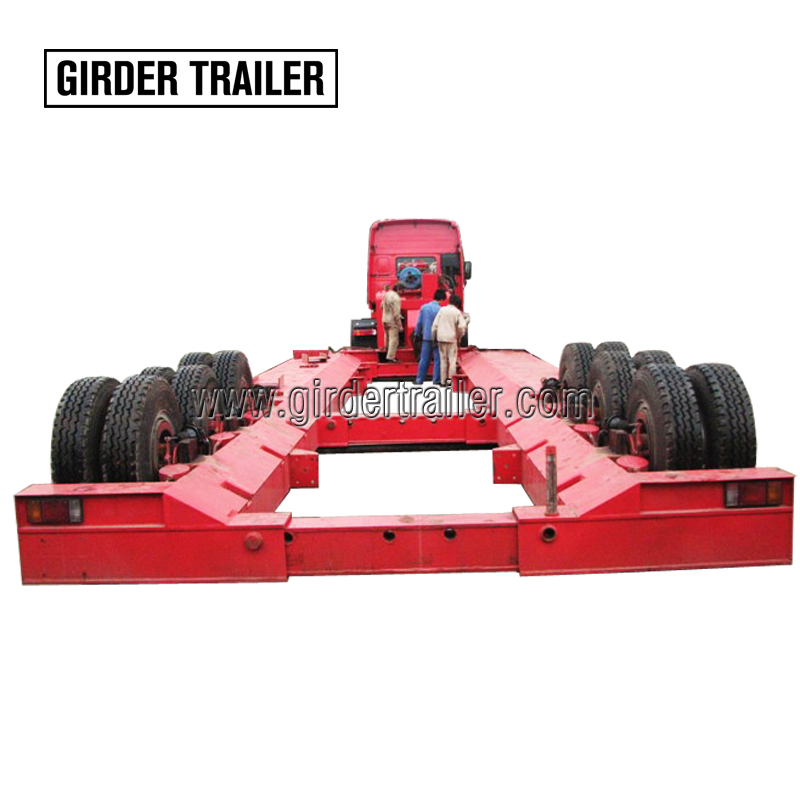

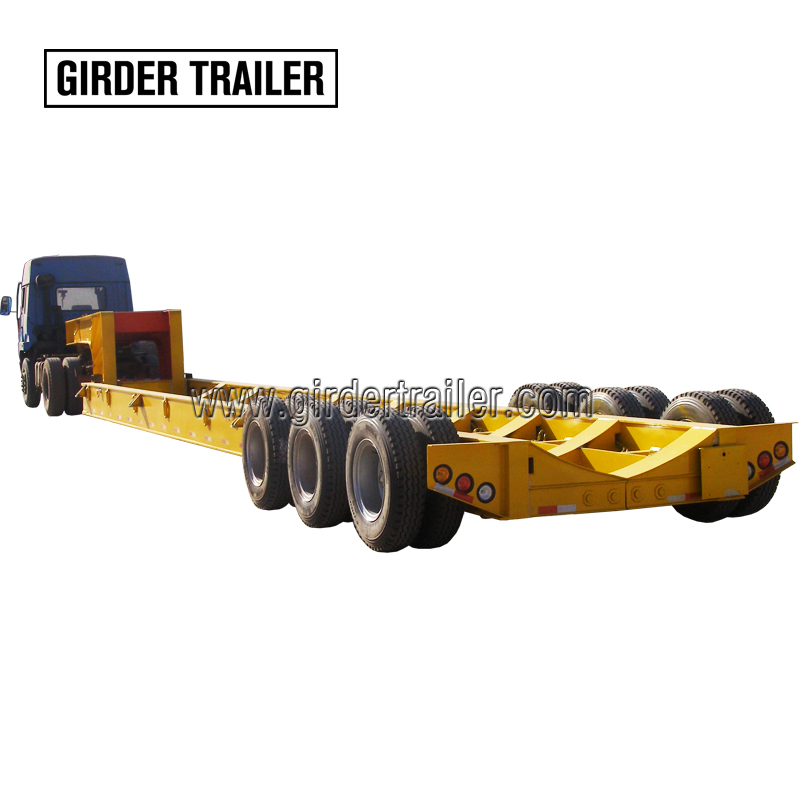

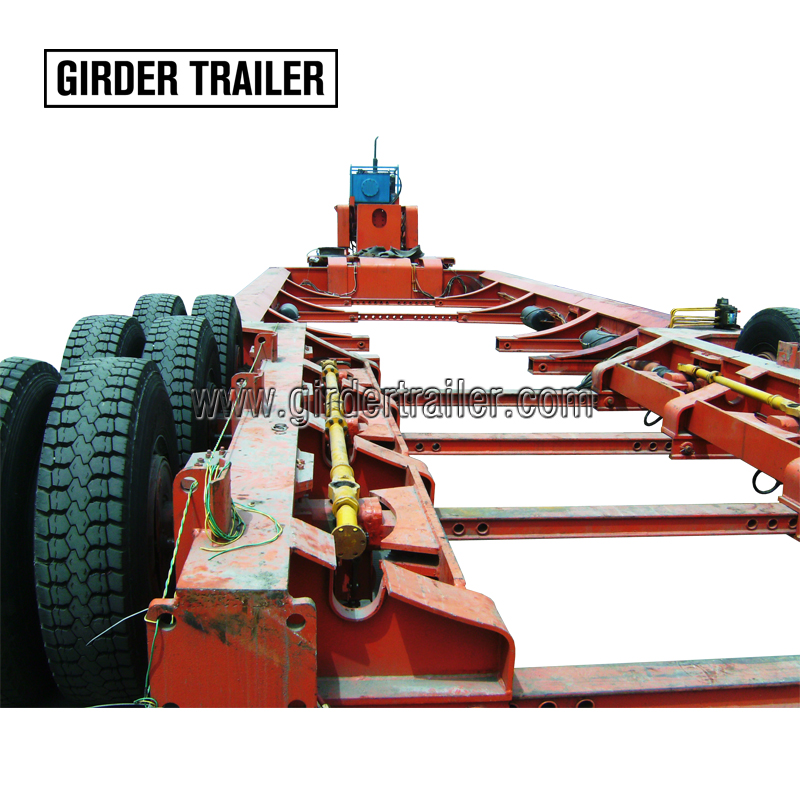

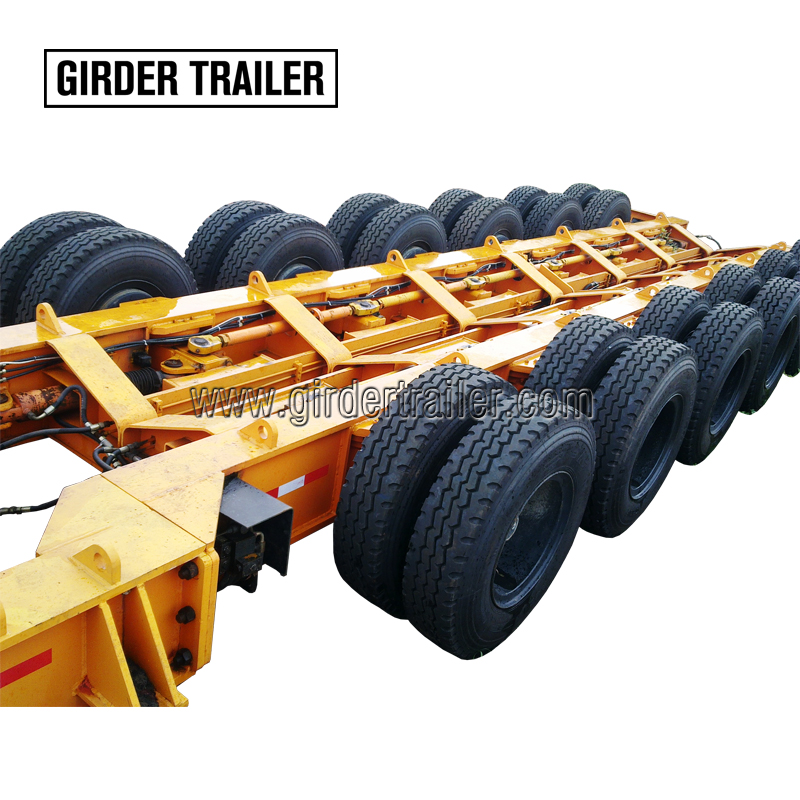

Width extendable tank transport trailer:

Features :

1. Width extendable tank trailer can transport different diameters oversized tanks.

Can transport diameters more than 4.5meters tank equipment.

2.The platform height can be made very low.It can be 350mm-900mm from the ground.

3.It has normal axles type and steering axis type. Normal axles type can have 2-4 axles ,Steering axles can have more than 5 axles .

4.The payload is from 30tons to 200tons .

Parameters:

Model	GTGC60TDP
Payload	30000KG-200000KGS
Platform	With radian for different diameters tank bodies ,width extendable
Axles	2-10 axis lines optional
Tire	Optional
Power station	One for control the hydraulic systems
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
