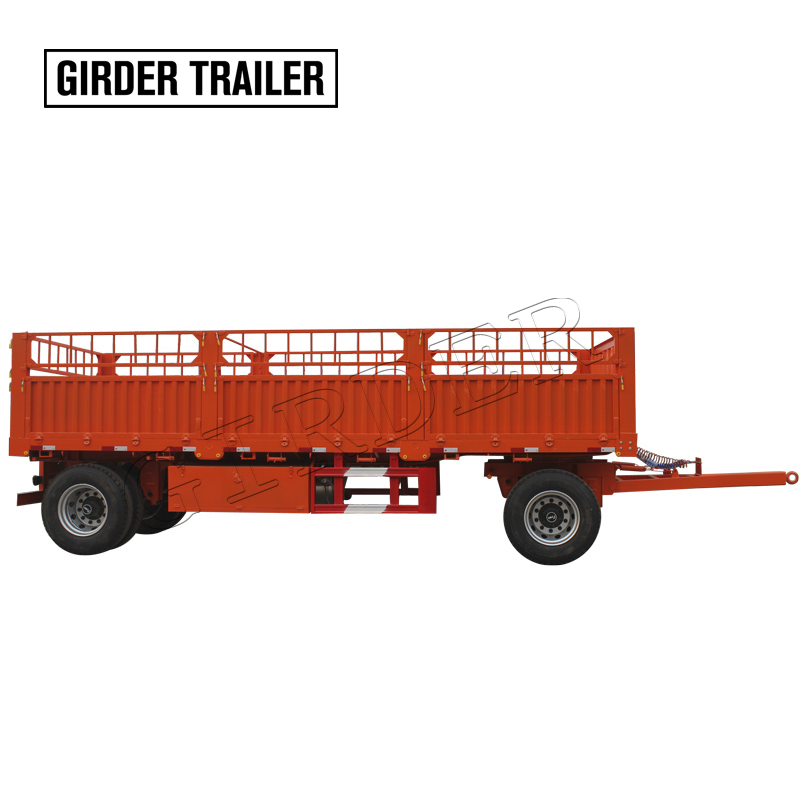

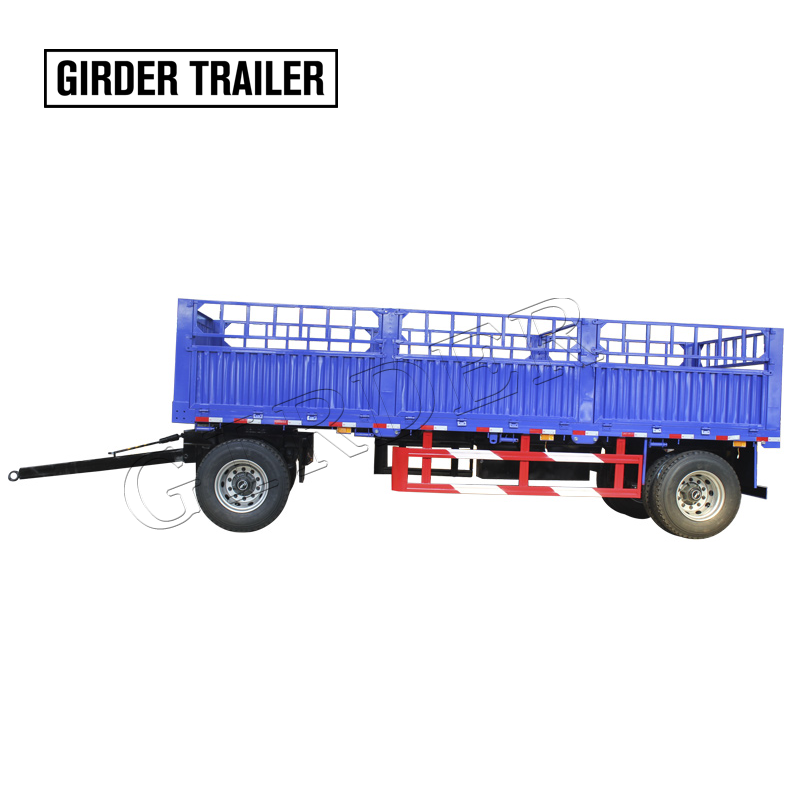

Fence draw bar trailer,cargo towing full trailer

Product Item：GT0602FTL

Payload (kgs):30000-50000

Suspension:Mechanical suspension (Air suspension optional)

Size：(6100+2200)*2500*(1500+1000) (mm)

Axles ：2/3 * 13ton capacity (Brand optional)

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand“girder trailer”.Beside the semi trailer,we also manufacturer towing full trailer for cargo transporting.Normally it has a 2’’ or 3.5’’ draw bar eyes to connect the towing hitch of the prime mover.The prime mover will not share the payload of the full trailer any more.For different function and transporting different cargo ,we have towing draw bar dolly,skeletal container full trailer,flatbed full trailer,drop side full trailer,log full trailer,fence full trailer,Tank full trailer,dump full trailer and low bed full trailer.Other kinds of full trailer can be customization according to your special requirement.

Parameters:

Model	GT0602FTL
Size	(6100+2200)2500(1500+1000) (mm)
Payload	30000KG-50000KGS
Main beam	Heavy duty I beam.
Axles	2/3 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension with leaf springs(Air suspension /bogie optional)
Tire	12R22.5 385/65R22.5 4/8/12pcs (Other size optional)
Rim	9.00-22.5 11.75*22.5 4/8/12pcs (Other size optional)
Twist locks	4
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
