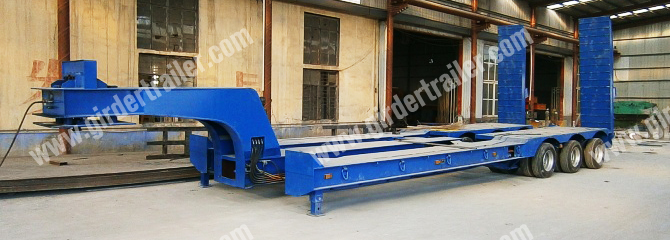

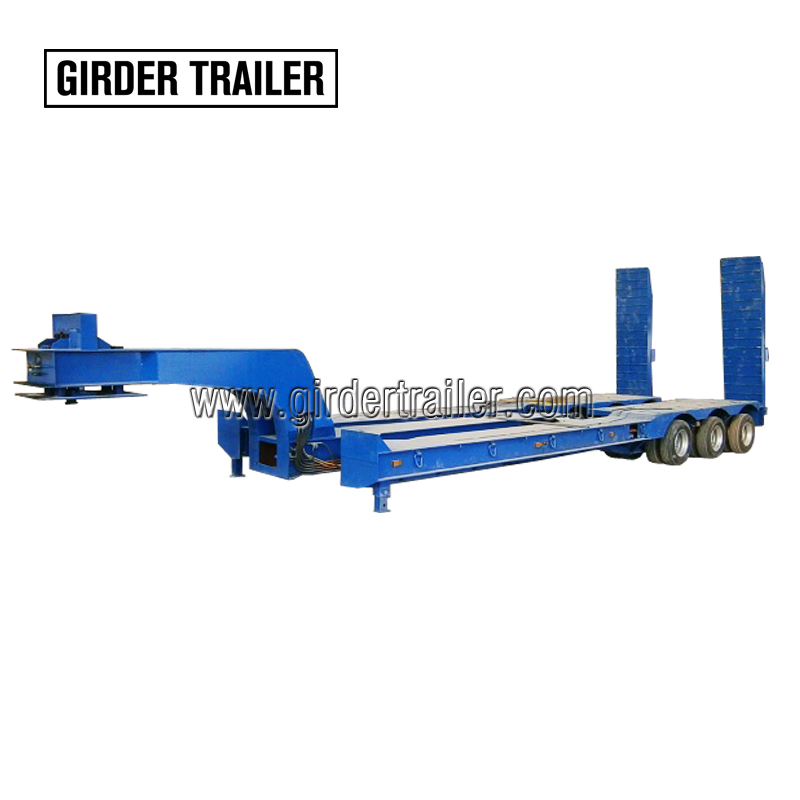

Width Extendable lowboy trailer

Product Item：GTCL0401TDP

Payload (kgs):more than 40000kgs

telescopic length extension

width hydraulic extension optional

suspension optional

Description

LOW BED TRAILER -Extendable lowboy trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

DIFFERENT TYPES OF LOWBOY TRAILER made by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers

Width Extendable lowboy semi trailer:

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.Extension low bed trailer is a kind of drop deck lowboy trailer whose main beam and platform can be telescopic extension.It can be suitable for heavy duty cargoes with different length or width . All the he parameters can be made according to your special requirement.

GIRDER TRAILER can make 2 types of extension low bed trailer :

1. Length extension lowboy trailer

2. Width extension lowboy trailer

Features:

1. Length or width can be telescopic extension or hydraulic cylinder extension.

2. Can be together will front towing dolly for over heavy duty cargo transporting.

3. Lifting function optional :hydraulic lifting suspension be able to adjust height

4. Suspension can be mechanical normal suspension ,bogie cantilever suspension ,air bag suspension or hydraulic steering suspension.

5. Higher strength steel to ensure the low platform not drop down especially when the length is extension position.Arc-up design for the cargo platform deck,can be flatbed type also.

6. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

7. Side bracket is an option(for increase overall width), removable and swinging

8. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

9.Gooseneck can be normal or hydraulic detachable type.

10.The design can be expose tires type or covered tires type.

Parameters:

Model	GTCL0401TDP
Plate	checked plate , frame type or wood deck
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	13tons,16 tons capacity for the normal and steering Brand BPW,L1,YORK ,FUWA or Anhui axles.
Suspension	Mechanical suspension (cantilever suspension ,hydraulic or pneumatic Air suspension optional)
Tire	215/75R17.5 or other size optional
Rim	17.5*6.00 12 (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake emergency relay valve, air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
