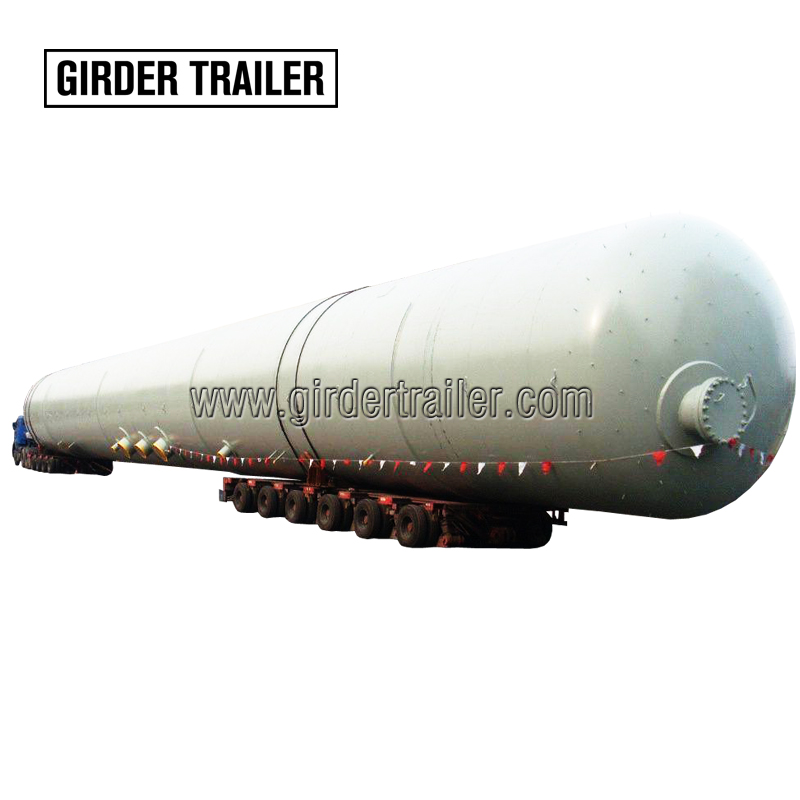

Tank transport modular trailer

Product Item：GTGC160TDP

Payload 60-200tons

oversized tank transporting

hydraulic lifting dolly

high strength steel

Description

Oversized tank transport trailer -Heavy duty hydraulic lift dolly tank transport trailer with concave beam

Usage :Transport large-scale equipment tank body or wind tower.

Some large-scale production equipment are the focus of development in many fields, such as wind power, petrochemical, and engineering. The components of these large-scale production equipment, especially tank-type parts, have a diameter of more than 4 meters, more than 30 meters in length, more than 100 tons in weight.

This kind of trailers are professional for transporting the above cargo.

There are some mainly types of tank transporter trailers as follow:

Tank transport ultra low bed trailer ,

Width/length extendable oversized tank transport trailer

Steering axles tank transport trailer

Heavy duty lift dolly tank transport trailer with concave platform

Tank transport modular trailer

Clamped type tank transport trailer with concave platform

SPMT tank transporter

Heavy duty hydraulic lift dolly tank transport trailer with concave beam

Features :

1.The suspension can be cantilever suspension with 1 lines 2 axles. (hydraulic lifting axles optional )So the payload is much heavier than normal axles.

2.The concave beam is made by high strength steel for loading the oversized tank or wind tower.

3.There is a power station to control the hydraulic cylinders to realize the trailer beam lifting.Both the gooseneck and the dolly support can be lifting.

4.The payload is from 60tons -200tons .

5.This kind of trailer can also transport ship .

Parameters:

Model	GTGC120TDP
Payload	60000KG-200000KGS
Platform	With high strength steel main beam
Gooseneck	hydraulic lifting goose neck optional
Suspension axles	Cantilever suspension or hydraulic lifting suspension
Tire	Optional
Power station	for control the hydraulic systems
Braking system	Double air chamber ,brake valve ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
