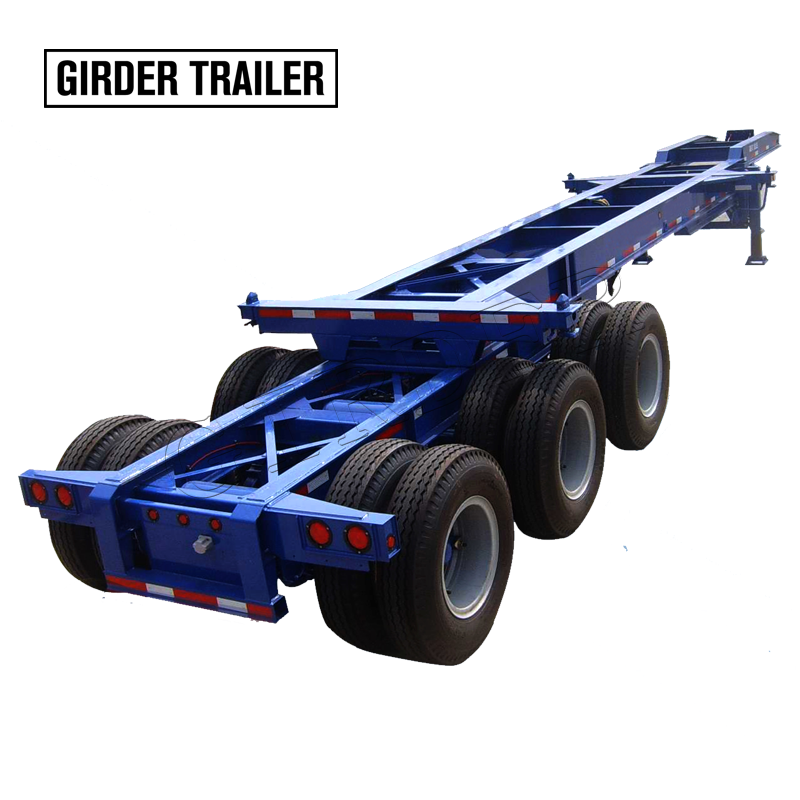

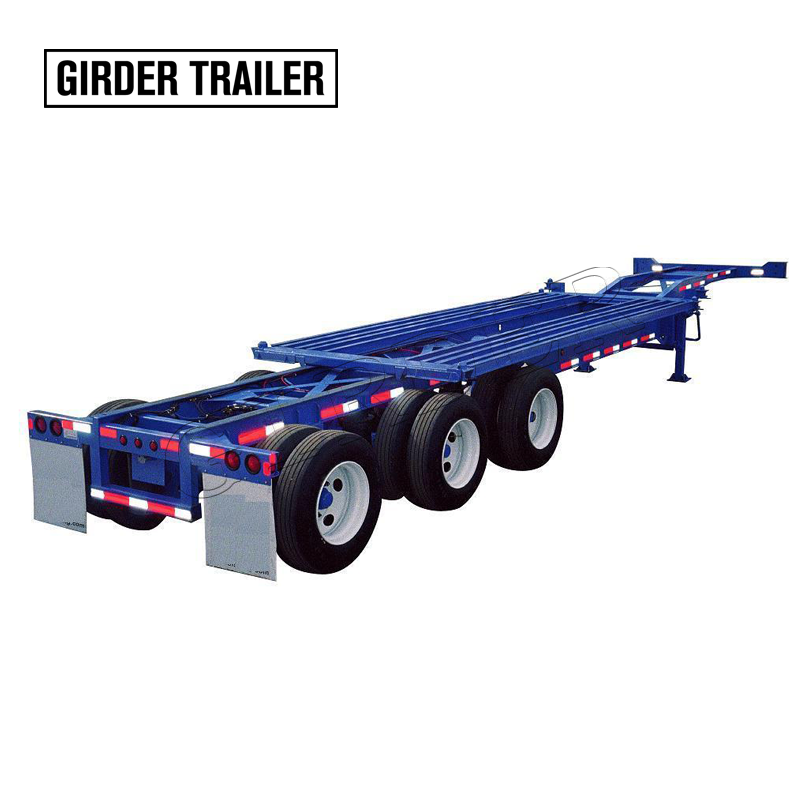

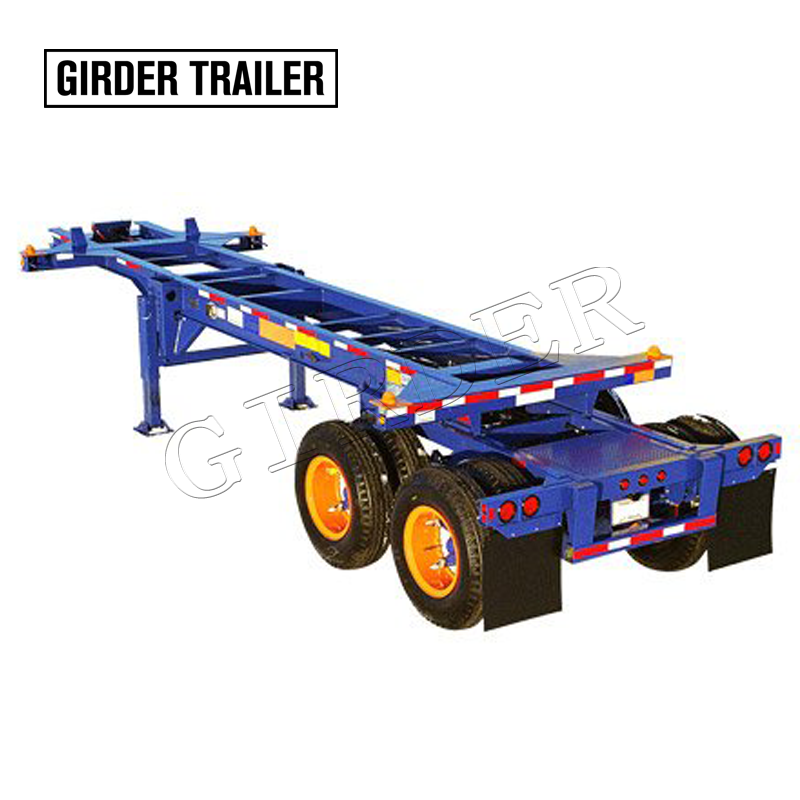

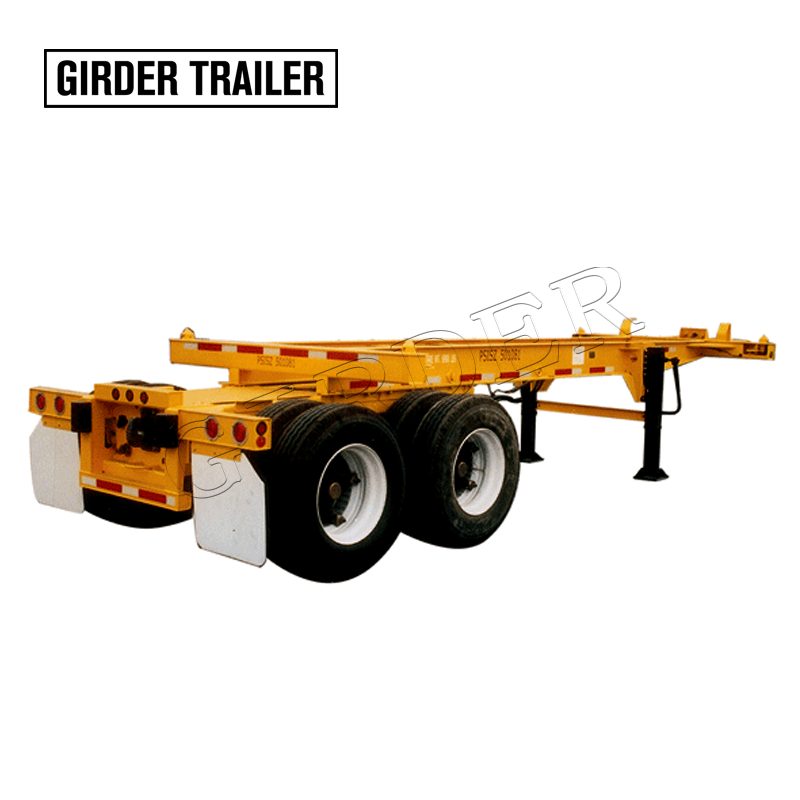

Sliding skeletal trailer for sale,tri axles slider extendable container chassis

Sliding skeletal trailer for sale,tri axles slider extendable container chassis

Product Item：GT0302JZG

Payload (kgs):50000

Tare weight (kgs):7000

Dimensions (mm):800*2480*1550

Axles :3 * 13ton capacity

Description

Sliding skeletal trailer for sale,tri axles slider extendable container chassis

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For the shipping standard container transporting ,we have 2 kinds of solutions: skeletal trailer and flatbed trailer .

The standard shipping container has different size : 20foot ,30foot ,40foot ,45foot,48foot and 53 foot.The trailer can be made accordingly with different length.

Axles Number can be 1,2,3 or 4 axles for transporting different weight container.

The trailer body can be straight beam or goosneck type optional.

The trailers must be with container twist lock to connect with the container.

The material can be high strength Mn carbon steel or aluminum material.

Parameters:

Model	GT0703TJZG
Size	800025001500 (mm)
Payload	40000KG
Main beam	Telescopic extendable beam
Axles	13ton capacity 2or 3 pcs optional
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 295/80R22.5 315/80R22.5 8pcs or 12 pcs
Rim	9.00-22.5 8 pcs or 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed *2
Twist locks	8pcs
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
