Hydraulic steering low bed trailer dolly

Product Item：GTLB0301TDP

Payload (kgs):more than 30000kgs

convace beam type

whole platform lifting

axles lifting and steering optional

Description

LOW BED TRAILER -Dolly trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

DIFFERENT TYPES OF LOWBOY TRAILERmade by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers

Dolly trailer

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand“girder trailer”.The trailer dolly is a efficient supplementary trailer widely used for oversized tank, long beam and heavy duty cargo which low bed trailers unable to handle, together with help of turntable/bolster, could make the transportation task has minimum turning radius.

GIRDER BRAND TRAILER has 4 kinds of dolly trailers:

1.Towing Draw bar dolly :This is kind of light duty dolly .It can change the semi trailer to be a kind of full trailer.

2. Front towing dolly under the gooseneck: The towing dolly can increase capacity of a single trailer and share the pressure from gooseneck.When the cargo is too heavy, prime mover will be in overload condition. In this way, dolly trailer is designed to bear more weight under king pin of gooseneck to relieve pressure on tractor, make sure every part are in more safe condition during transport process.

3. Long beam trailer dolly:The trailer dolly is a efficient supplementary trailer widely used for long beam and heavy duty cargo which low bed trailers unable to handle.It also called concrete beam trailer or section trailer..

4. Steering rear dolly : This kind steerable dolly is to transport over heavy cargo .Normally it can connect with a concave beam.,together with help of turntable/bolster, could make the transportation task has minimum turning radius. It can realize the platform whole lifting functions by the cylinders.

Here we introduce the 4th one dolly trailer:

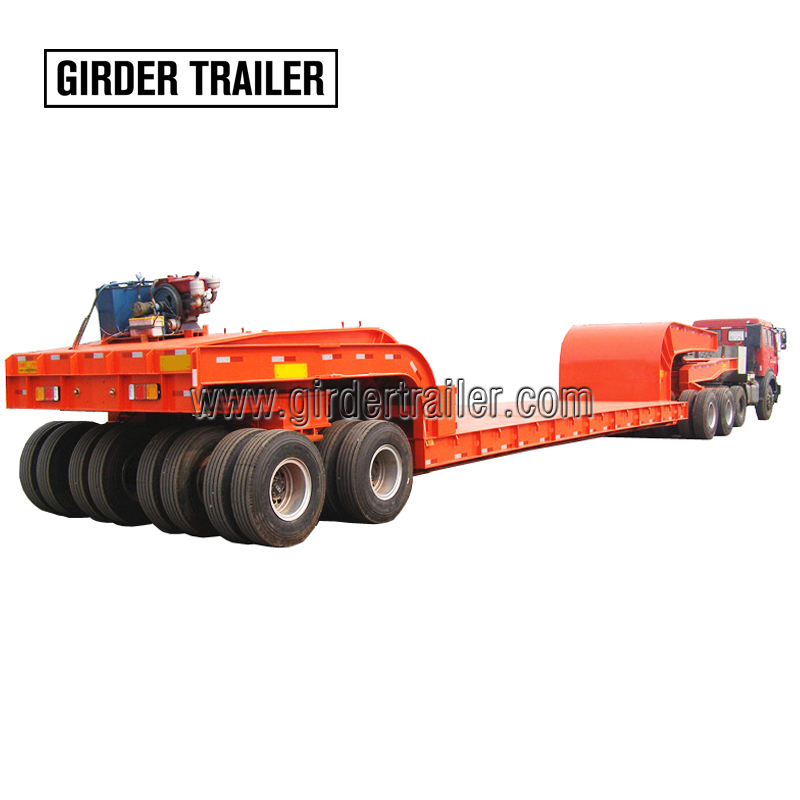

Hydraulic steering low bed trailer dolly:

Features:

1.Trailer gooseneck can be detachable .

2.Arc-up design for the cargo platform deck,can be flatbed type also.

4. Lifting function:hydraulic cylinders be able to adjust height

5.Degree of automation is high.And it also has high control procedures and alignment in connecting,Only one person can operate it.

6. Higher strength steel to ensure the low platform not drop down.

7. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

8. Side bracket is an option(for increase overall width), removable and swinging

9. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

10. Can make telescopic beam to realize length extension.

Parameters：

Model	GTDL0301TDP
Axles	13tons,16 tons capacity for the normal and steering Brand BPW,L1,YORK ,FUWA or Anhui axles.
Pay load	140-200tons
Platform	Can be high strength steel platform or frame beams for loading tanker.
Tires	215/75R17.5 ,8.00R20,12R22.5 or other size optional
Suspension	Cantilever Rigid suspension or Hydraulic lifting steering suspension
Kin pin	2’’/3.5’’bolt type
Turntable	For steering
Cylinders	For whole platform lifting and steering.
Landing gear	40 Ton two speed or hydraulic heavy landing leg
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
