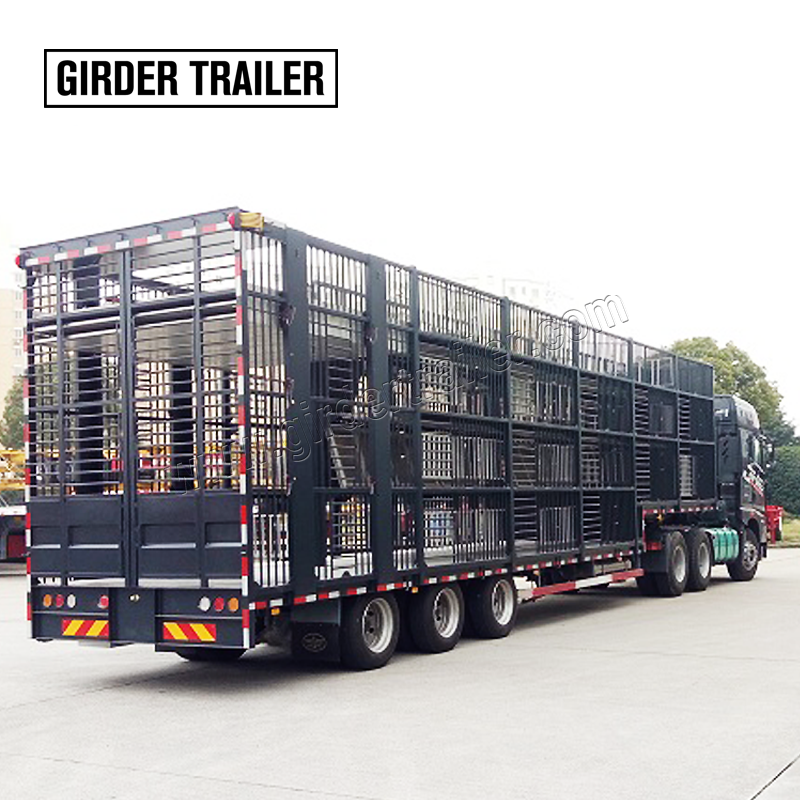

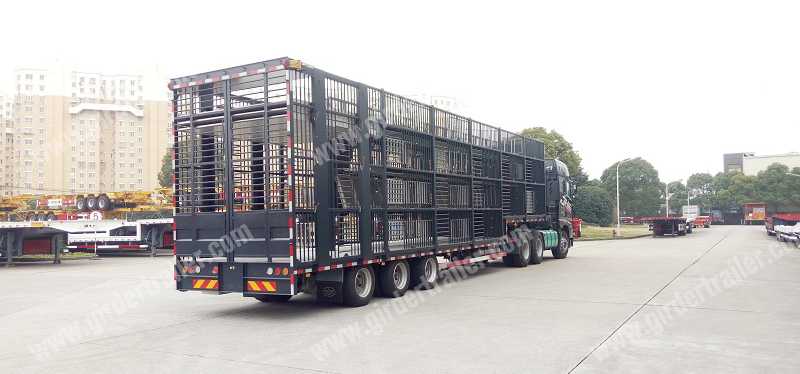

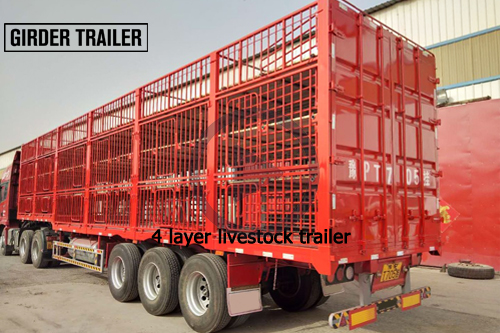

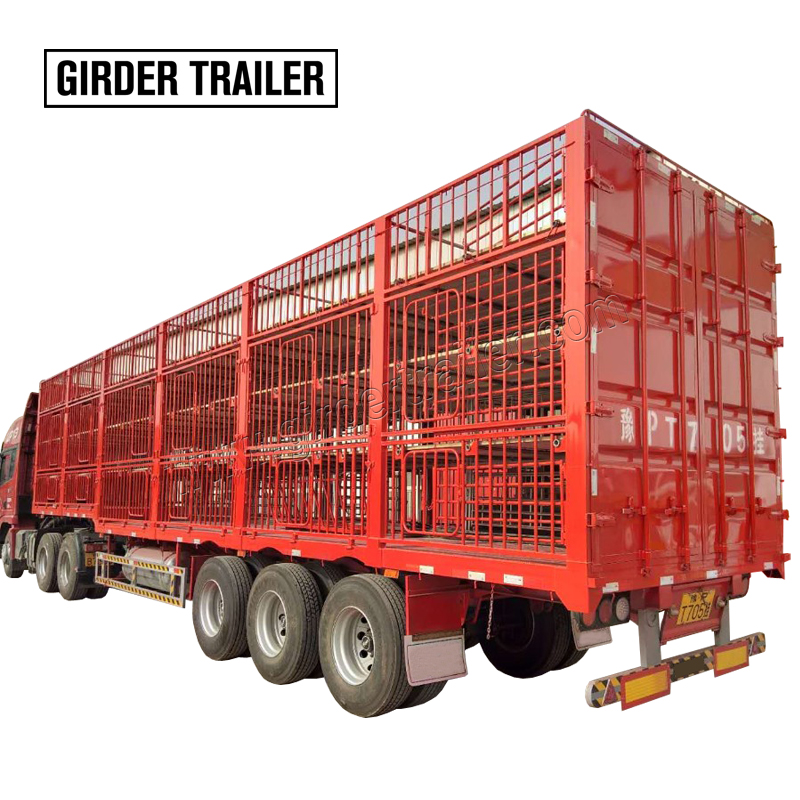

4 layer livestock trailer,poultry semi trailer

Product Item：GT0304CCQ-1

Payload (kgs):More than 30000kgs

Material:Steel/Aluminum

Side fence:1000mm-2600mm

Axles:2/3/4 pcs optional

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For different kinds of animals transporting ,we have different layers animal trailers solutions:

4 layers livestock trailer ,four floors poultry trailer,sheep trailer,pig transporting semi trailer,animal trailer,trailer for farm

Features:

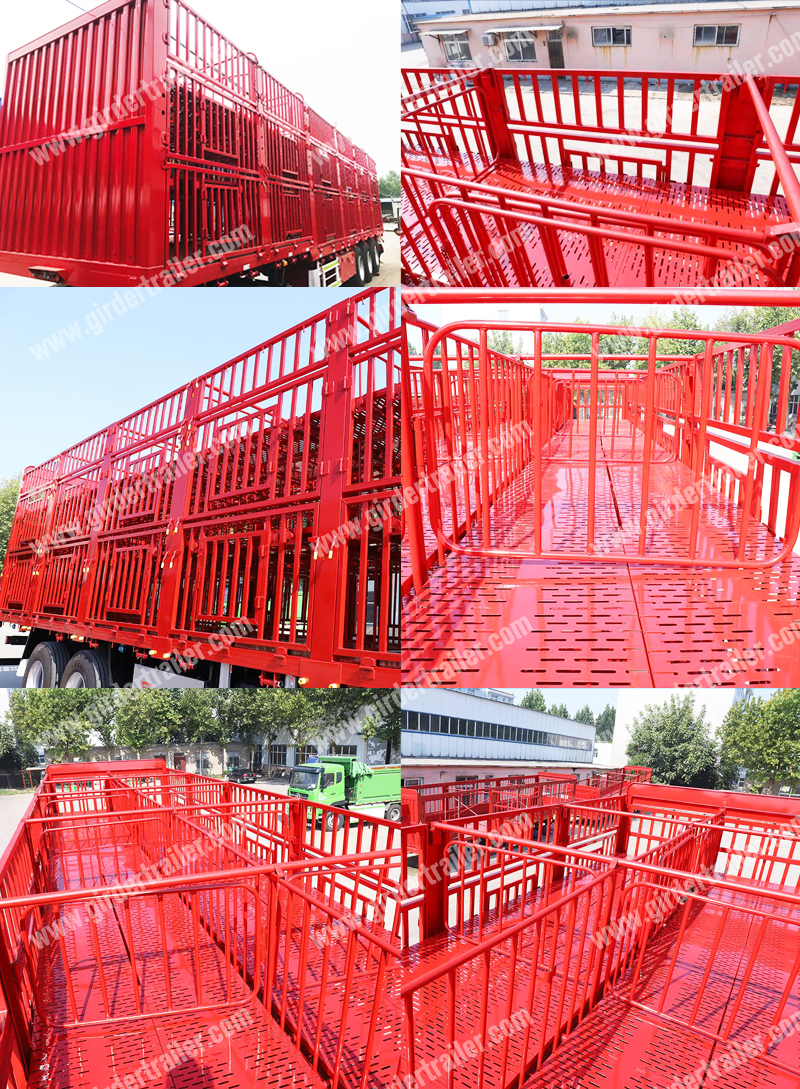

This 3 layer livestock trailer is mainly used for little cow/cattle.pig and sheep transporting .we have fence design GT0304CCQ-1 and box type design CT0304CCQ-2.Here we introduce our fence design type:

1.The length can be from 10meters to 15meters.

2.Side board height can be from 600mm-4000mm.

3.Axles number can be 1,2,3 or 4 axles for transporting different weight animals.

4.The material can be high strength Mn carbon steel or aluminum material.We can make a whole body design and skeleton trailer + removable box van type.

5.Flat deck can be straight beam or step deck type.

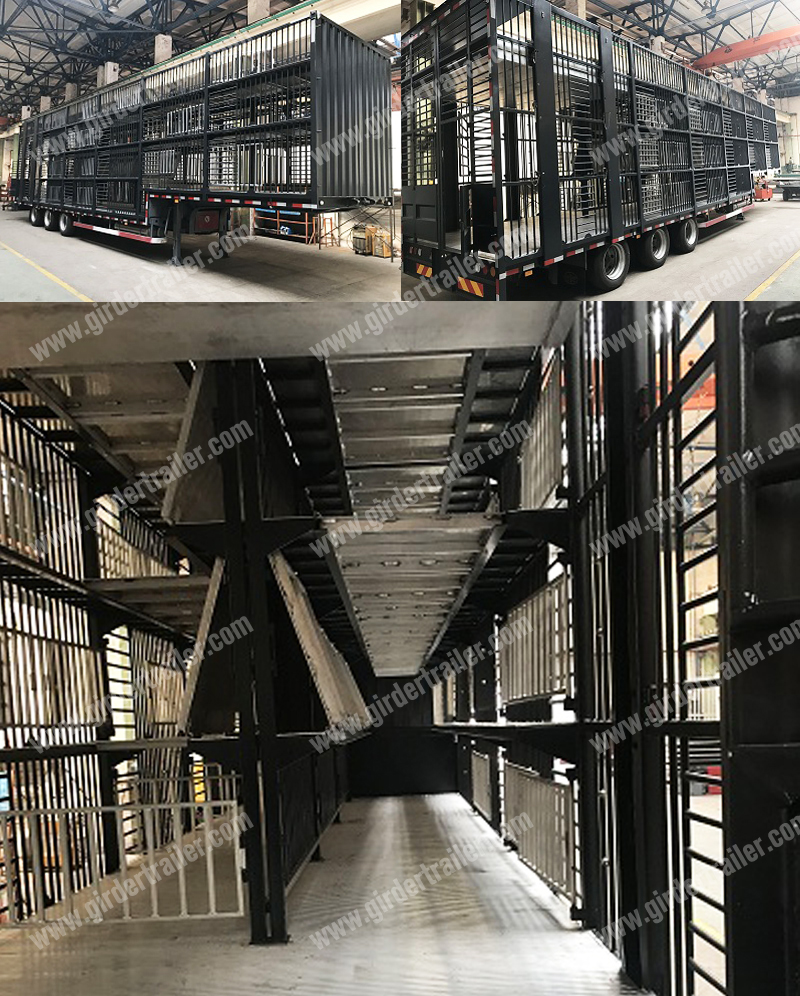

6.The floors number can be 1,2,3 or 4 floors.And the floors can be hydraulic lifting or manual folding.It is convenient for animals loading and cleaning by workers.

7..Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.

8.Every layer can have 1-3 compartments.

9.With water trough and food trough optional

10.with ureter and waste tanks optional

11.Fans optional

Parameters:

Model	GT0304CCQ-1
Size (L*W)	12500*2500 (mm)
Height	1100mm~1600mm
Payload	50000KG
Main beam	Heavy duty I beam.
Axles	2/3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional)
Suspension	Mechanical suspension (Air suspension/Bogie suspension optional)
Leaf spring	10pcs
Tire	12R22.5 315/80R22.5 295/80R22.5 12pcs (Other size optional) 385/65R22.5 6pcs
Rim	9.00-22.5 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
