Description
3 axles 40ft flatbed container semi trailer.40/45 foot flat deck trailer
QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For the shipping standard container transporting ,we have 2 kinds of solutions: skeletal trailer and flatbed trailer .
- The standard shipping container has different size : 20foot ,30foot ,40foot ,45foot,48foot and 53 foot.The trailer can be made accordingly with different length.
- Axles Number can be 1,2,3 or 4 axles for transporting different weight container.
- The trailers must be with container twist lock to connect with the container.
- The material can be high strength Mn carbon steel or aluminum material.
- Flat deck trailers can be straight beam or step deck type.
- The flatbed trailer can be installed side bars,Steel pipe stakes,side walls or fences on the platform for transporting cargoes
-
The trailer main beam can be telescopic extension to realize the length extendable.
Parameters:
Model |
GT0213TJZG |
Size (L*W) |
(8000-13750)*2500 (mm) |
Height |
1100mm~1600mm |
Payload |
50000KG |
Main beam |
Heavy duty I beam. |
Side beam |
140/160/180 mm channel beam |
Platform |
Checked plate 2,3 or 4mm thickness |
Axles |
3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional) |
Suspension |
Mechanical suspension (Air suspension optional) |
Leaf spring |
10pcs |
Tire |
|
Rim |
9.00-22.5 12pcs (Other size optional) |
King pin |
2’’/3.5’’ bolt type |
Landing gear |
28 Ton two speed |
Twist locks |
12 pcs |
Braking system |
Double air chamber ,brake valve,32L air tanks ;ABS optional |
Electrical |
LED light , 7 ways ,24V |
Painting |
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
Above data can be customized per your local regulation and requirement.

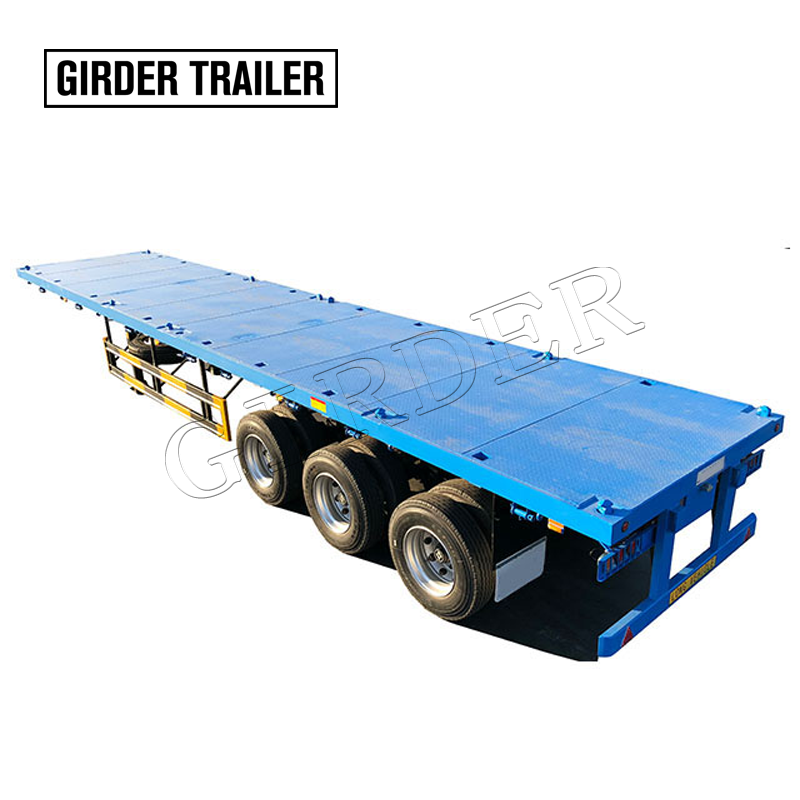

3 axles container flatbed trailer
Tri axles 40ft container transporting flatbed semi trailer
40ft flatbed trailer details
3 axles flatbed semi trailer for Saudi Arabia design
Cutting position for loading into 40HQ container
40 foot flatbed container trailer with wood deck
Flatbed container semi trailer with side bars
Flat deck semi trailer with side fence
Flat bed semi trailer ready to shipment
Shipment for flatbed trailer
