2 axles tank semi trailer

Product Item：GT0201GYY

Suspension:Mechanical suspension (Air suspension optional)

Material:Carbon steel/Stainless steel/Alloy

Size:11980*2500*3800 (mm) (Other dimensions optional)

Axles:3 * 13ton capacity (Brand optional)

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.Tank trailers are used to transport liquids and gas in large volumes.The trailers came in different models because of the wide variety of liquefied loads.

Liquid tank trailer
Type	Model	Usage

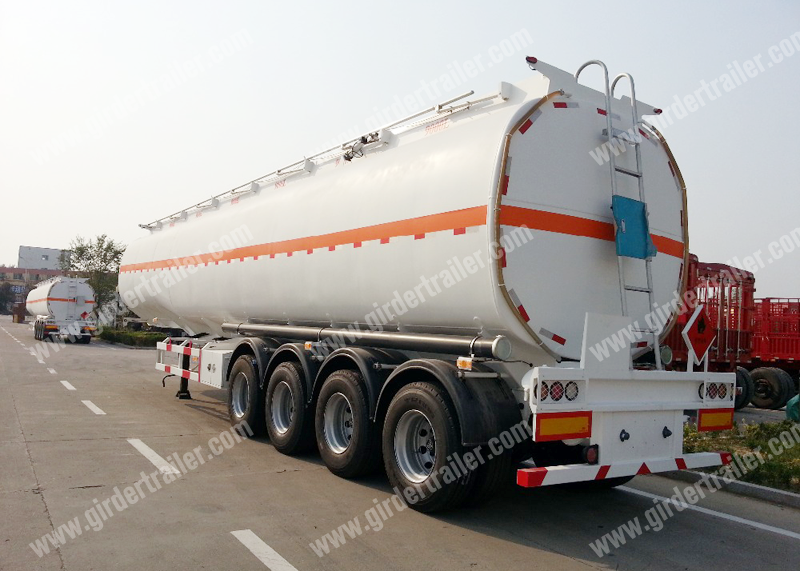

Oil tank semi trailer	GT0301GYY	Gasoline,diesel oil,kerosene,jet fuel
Bitumen/asphalt tank trailer	GT0201GLY	Tar,Bitumen ,asphalt
Chemical liquid tank trailer	GT0301GHY	Acids ,Alkalies,Hydrogen peroxide,ammonium hydroxide
Flammable liquid tank trailer	GT0301GRY	Crude oil, pentane, petroleum ether,alcohol
Liquid food tank trailer	GT0301GYS	Edible oil,beer,milk,water,juice,ice cream,sugar water
Pressure vessel
Type	Model	Usage
liquefied gas tank trailer	GT0301GYQ	Propylene,propane,butane,butadiene,liquid ammonia ,liquefied petroleum gas(LPG)
Cryogenic liquid tank trailer	GT0301GDY	Liquefied natural gas(LNG)
Compressed Natural Gas trailer	GT0301GRQ	Compressed Natural Gas(CNG)

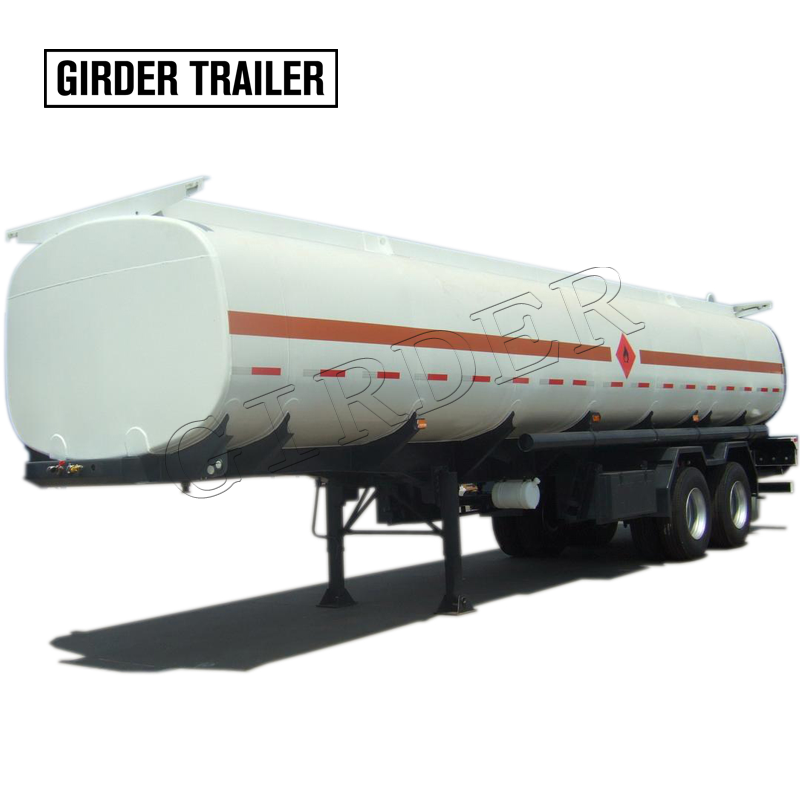

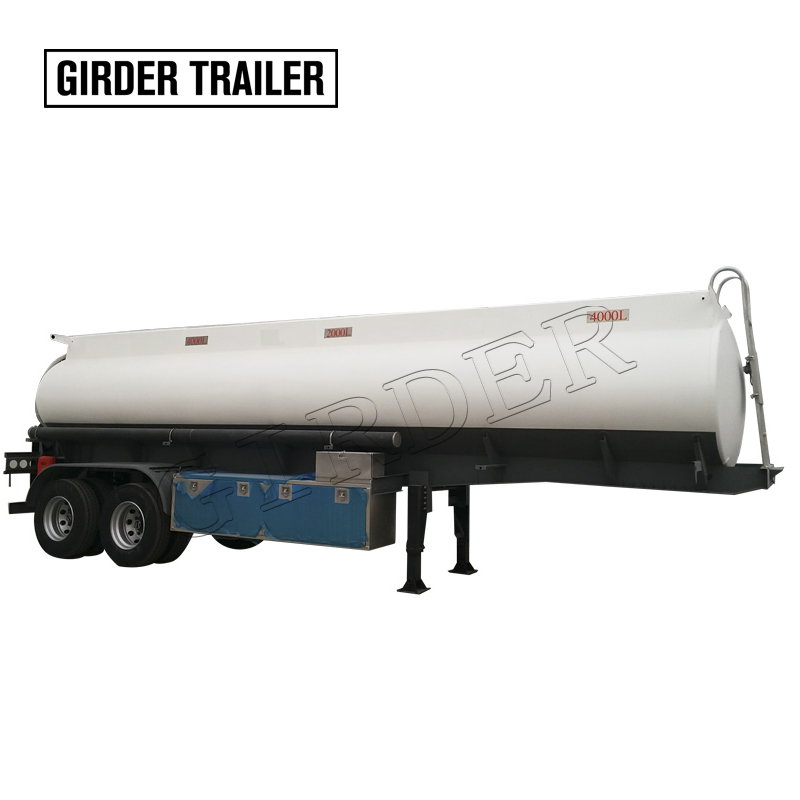

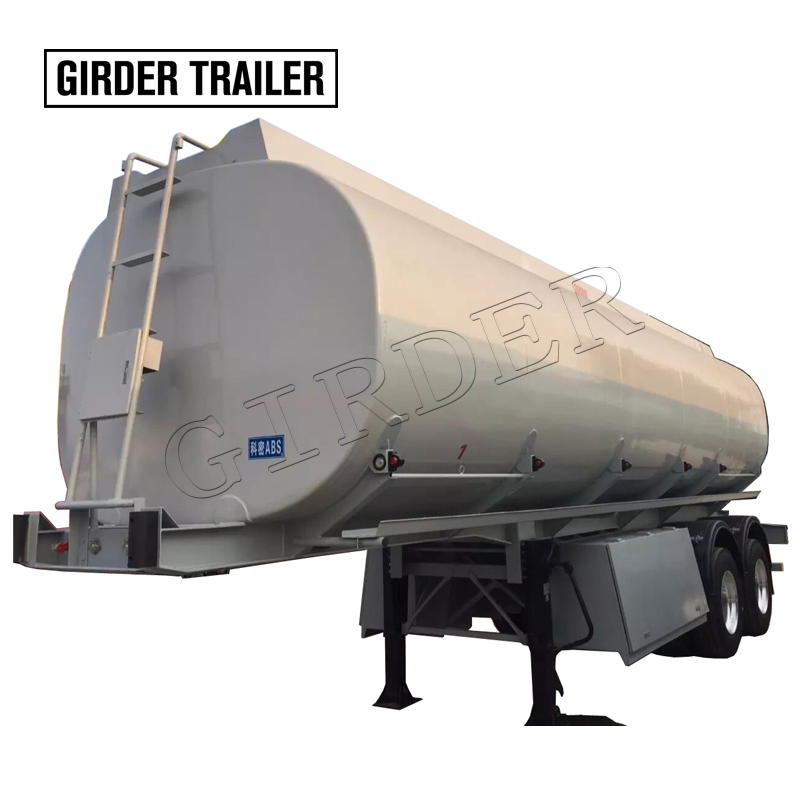

2 axles fuel tank trailer,gasoline/diesel transporting tanker semi trailer :

Features:

1.Can design different volume of tank body.

2.Tank material can be carbon steel,stainless steel,aluminum for different kinds of liquid transporting.

3.Can design different compartments to transport same or different liquid.

4.Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight liquid.

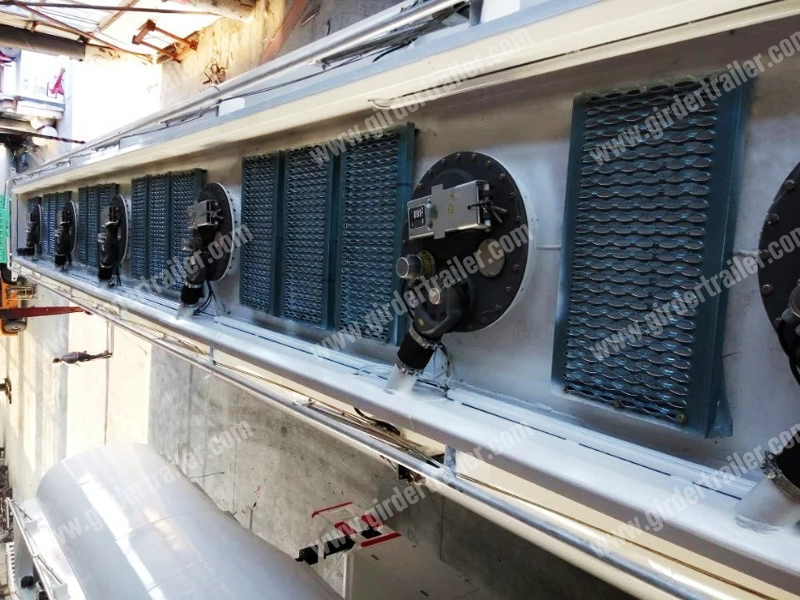

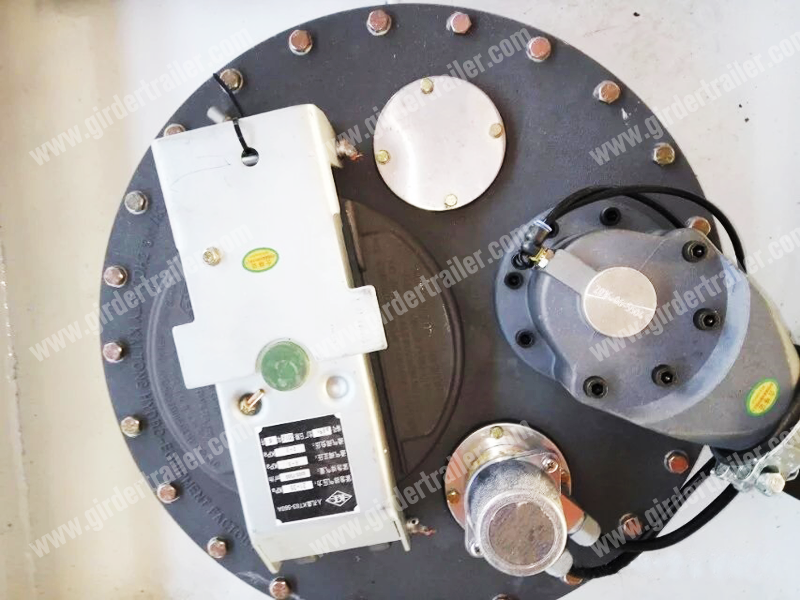

5.Man hole can be simple one or European type with release valve,spill-proof sensor and oil vapor recovery valve..

6.All rooms in the tank have baffle plates to reduce the fluctuations of the liquid.

7.The bottom valve is generally installed in an oil tanker’s outlet. In case of a crash in an accident, the valve can cut off the pipeline in 5 seconds.The quick cut off also prevents leakage and explosion in an accident.

Parameters:

Model	GT0201GYY
Volume	20000L-40000L
Size	1008025003600 (mm) (Other dimensions optional)
Tank body	5mm tank body with end plate 6mm (Other thickness optional)
Discharge valve	Ball valve
Discharge pipe	4’’ rubber hose
Axles	2* 13ton capacity (Brand optional)
Suspension	Mechanical suspension with 10pcs leaf springs (Air suspension /bogie type)
Tire& rims	12R22.5 315/80R22.5 8pcs (Other size optional) with 9.00-22.5rims
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
