3 axles enclosed cargo box trailer,Dry van semi trailer

Product Item：GT0301XXY

Payload (kgs):50000

Material:Steel/Aluminum

Side board height:1800-3000mm optional

Axles:2/3/4 pcs optional

Description

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.For different kinds of cargo transporting ,we have different kinds of trailer solutions: flatbed trailer with side bar,drop side trailer,fence trailer,dry van trailer,wing van trailer,reefer trailer,curtain side trailer,log trailer,silo trailers and livestock trailers.

3 axles enclosed cargo box trailer,Dry van semi trailer:

Features:

1.The length can be from 10meters to 15meters.Most customers choose 40ft length.

2.Side board height can be from 1800mm-3000mm.

3.Axles number can be 1,2,3 or 4 axles for transporting different weight cargo.

4.The material can be high strength Mn carbon steel or aluminum material.

5.Flat deck can be straight beam or step deck type.

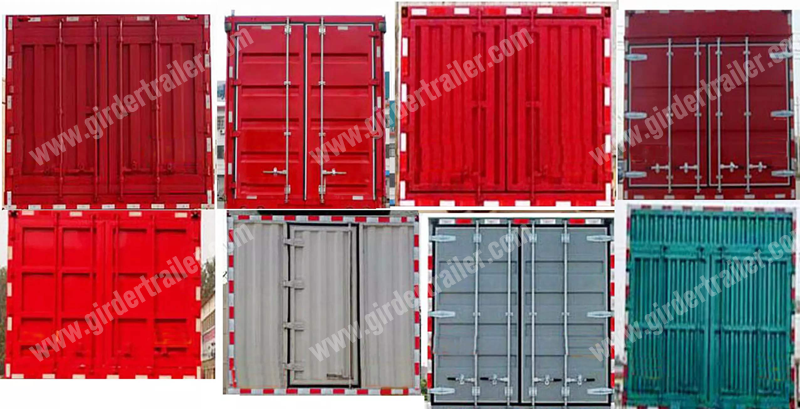

6.The doors quantity can be made according to customer requirements. And we can make Wing open van trailer type.

7.Can be with a refrigerator to be a reefer trailer

8.Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.

Parameters:

Model	GT0301XXY
Size (L*W)	12500*2500 (mm)
Height	3000mm~4200mm
Payload	50000KG
Main beam	Heavy duty I beam.
Side beam	140/160/180 mm channel beam
Platform	Flat plate 2,3 or 4mm thickness
Axles	2/3 * 13ton capacity (BPW,FUWA,L1 and other Brand optional)
Suspension	Mechanical suspension (Air suspension/Bogie suspension optional)
Leaf spring	10pcs
Tire	12R22.5 315/80R22.5 295/80R22.5 12pcs (Other size optional)
Rim	9.00-22.5 12pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,32L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
