Tank transport low bed trailer

Product Item：GTGC50T

Payload 60tons

huge tank transporting

weight less than 100tons

normal lowbed trailer

Description

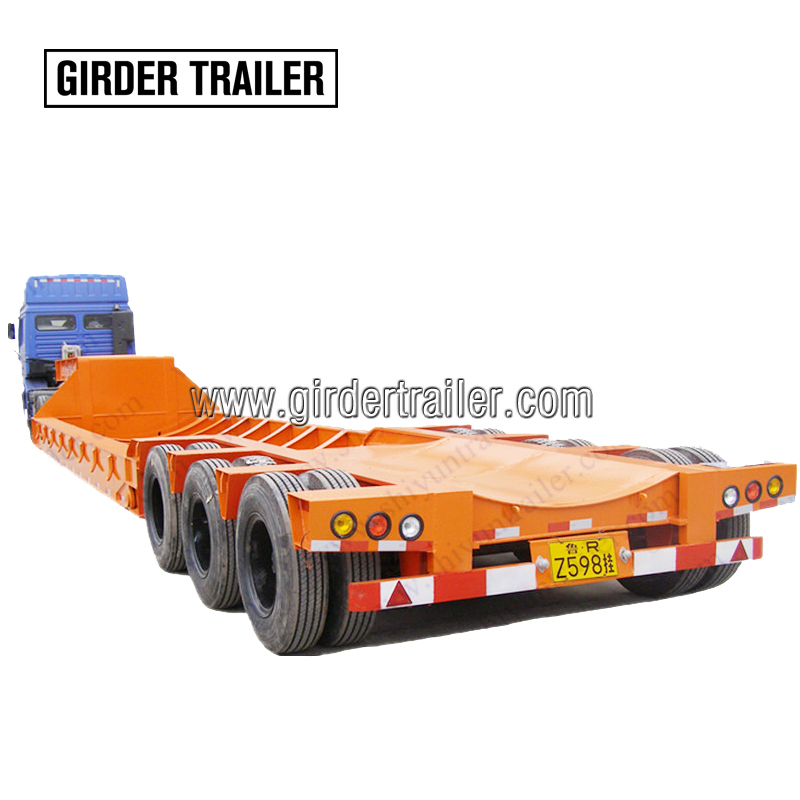

Oversized tank transport trailer -Tank transport low bed trailer

Usage :Transport large-scale equipment tank body or wind tower.

Some large-scale production equipment are the focus of development in many fields, such as wind power, petrochemical, and engineering. The components of these large-scale production equipment, especially tank-type parts, have a diameter of more than 4 meters, more than 30 meters in length, more than 100 tons in weight.

This kind of trailers are professional for transporting the above cargo.

There are some mainly types of tank transporter trailers as follow:

Tank transport ultra low bed trailer ,

Width/length extendable oversized tank transport trailer

Steering axles tank transport trailer

Heavy duty lift dolly tank transport trailer with concave platform

Tank transport modular trailer

Clamped type tank transport trailer with concave platform

SPMT tank transport trailer

Tank transport low bed trailer:

Features :

1. This is most economic way to transport oversized tank cargo.It is equal to a normal lowbed trailer with arc shape platform

2. The platform height can be made very low.It can be 350mm-900mm from the ground.

3. Usually for transporting tank which weight is less than 100tons ,diameter is not too big.

4. Can be 2-4 axles without steering.If more axles,you’d better choose steering axis ones.

Parameters:

Model	GTGC50TDP
Payload	30000KG-80000KGS
Platform	With radian for different diameters tank bodies
Ladder	Optional
Axles	2-4 axles optional
Tire	12R22.5 / 11.00R20 12pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
