Multi axles low bed trailer

Product Item：GTDQ0501TDP

Payload (kgs):more than 60000kgs

suspension optional

Extendable length optional

axles lifting optional

Description

LOW BED TRAILER -Multi axles low bed semi trailer

Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

DIFFERENT TYPES OF LOWBOY TRAILER made by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.Multi axles lowboy trailer is a kind of drop deck lowboy trailer whose axles numbers more than 4 pcs. It is always with steering suspensions .The height can be lift adjustable and the gooseneck can be detachable. All the he parameters can be made according to your special requirement.

GIRDER BRAND TRAILER has two kinds of multi axles low bed trailers classified by suspension:

1.Servo/hydraulic steering multi axles low bed trailer with mechanical leaf springs suspension : can be paired with lift air bag suspension for axles lifting functions.

2.Servo/Hydraulic steering multi axles low bed trailer with hydraulic lifting suspension :connect with the hydraulic rotary from the gooseneck to realize all the axles steering ,and the suspension can make the trailer whole platform lifting ).

Here we introduce our 1st one multi axles low loader:

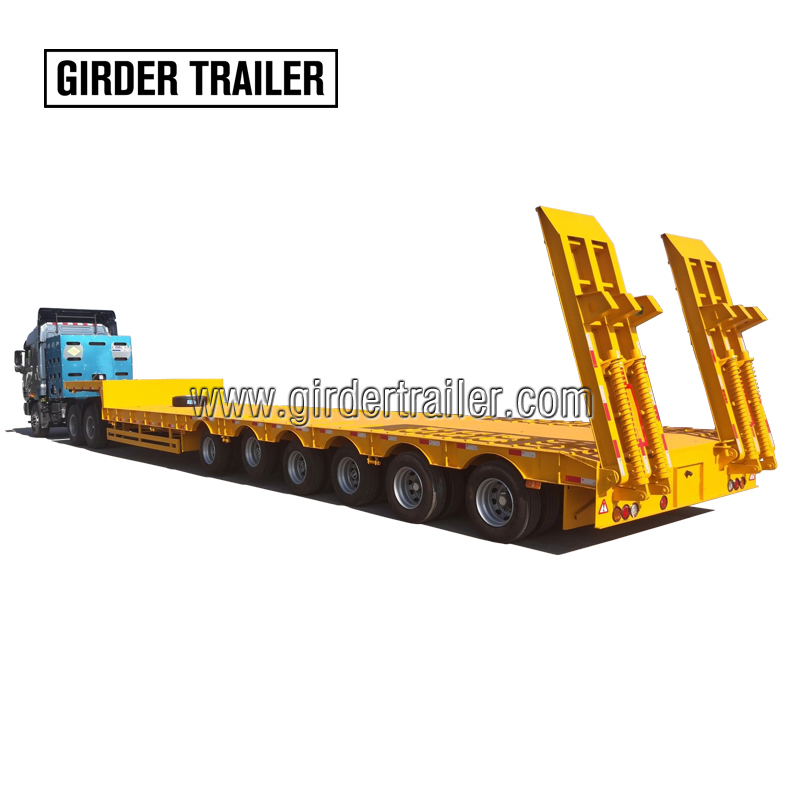

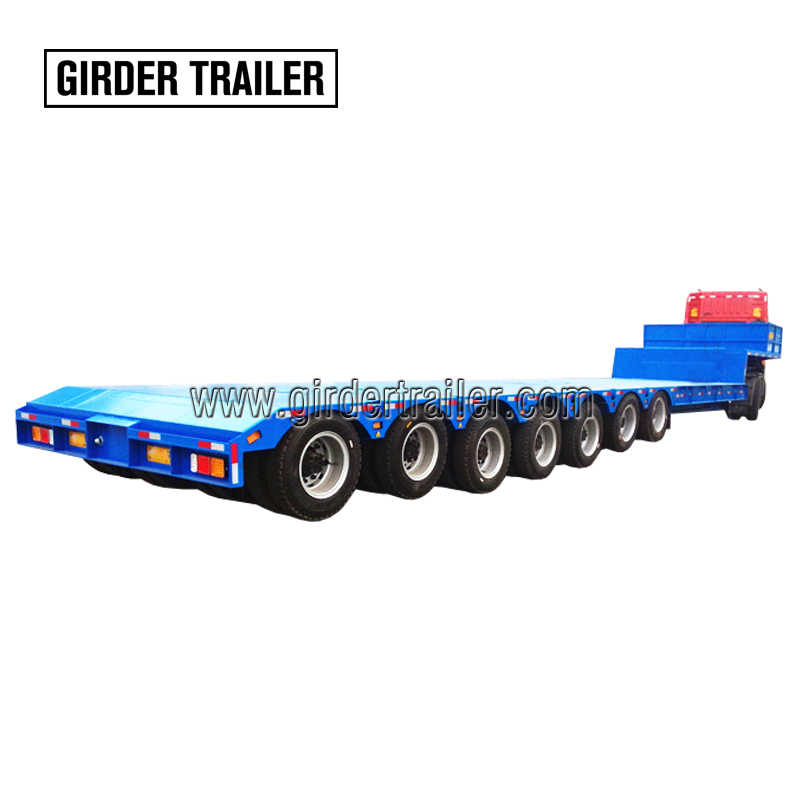

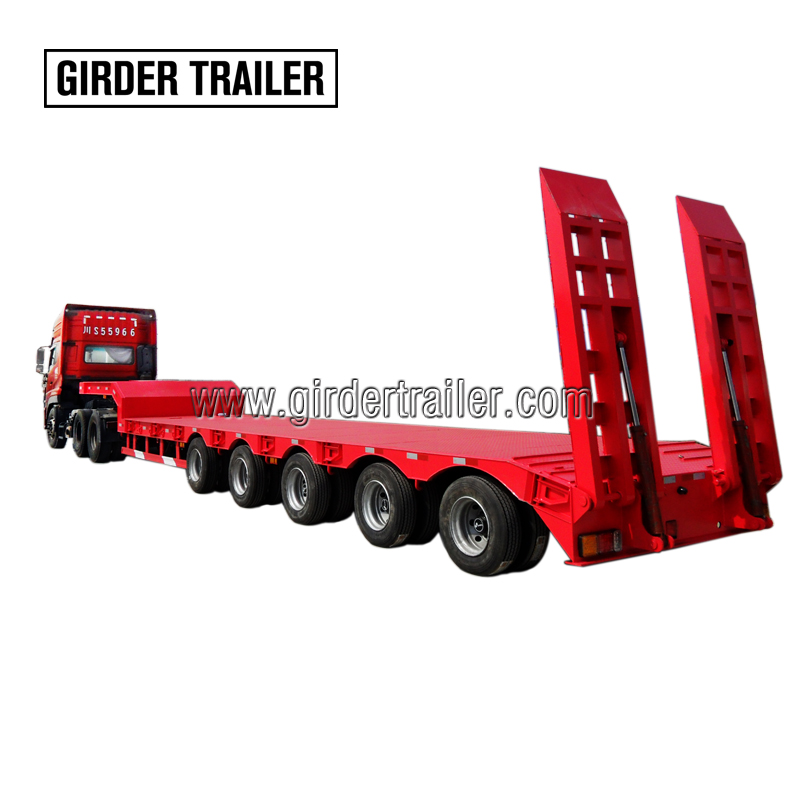

Multi axles low bed semi trailer -with leaf springs suspension :

Features:

1. More than 4 lines axles

2. With steering axles .small turning radius, up to 55° steering angle.

3. Both automatically and manually all wheels steering.For manually operation we will install the power station and valve.

4. Lifting function:hydraulic and air suspension be able to adjust height

5. Can make telescopic beam to realize length extension.

6. Higher strength steel to ensure the low platform not drop down.

7. Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

8. Side bracket is an option(for increase overall width), removable and swinging

9. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

10.Gooseneck normal type or hydraulic detachable type optional

Parameters:

Model	GTDQ0501TDP
Plate	4mm checked plate
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	13tons,16 tons capacity for the normal and steering Brand BPW,L1,YORK ,FUWA or Anhui axles.
Suspension	Mechanical suspension (lifting by Air suspension )
Tire	215/75R17.5 or other size optional
Rim	17.5*6.00 12 (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake emergency relay valve, air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
