2 lines 4 axis windmill trailer

Product Item：GTFD80TDP

Hydraulic Steering axles

extendable telescopic beam

Max 60meters rotor blade

Description

Wind power trailer-Wind blade trailer

Wind power,as an ECO and renewable energy, will be more and more popular in the world.Wind power generation construction field is also prosperous in proportion . In the wind power industry, we mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. GIRDER TRAILER provide all types transportation solutions for the wide power industry use:

Wind power nacelle trailer

Wind turbine blade trailer

Wind tower section trailer

Comparing with the nacelle and wind tower section ,Wind blade is longer and lighter.And it is also fragile and tender.How do make a safe and efficient transport for those blades is GIRDERTRAILER’s purpose.

There are 2 type of methods to transport wind turbine blade:

1	Length Extendable wind blade trailer	For normal transporting on the road
2	Wind blade adapter	For mountain region transporting

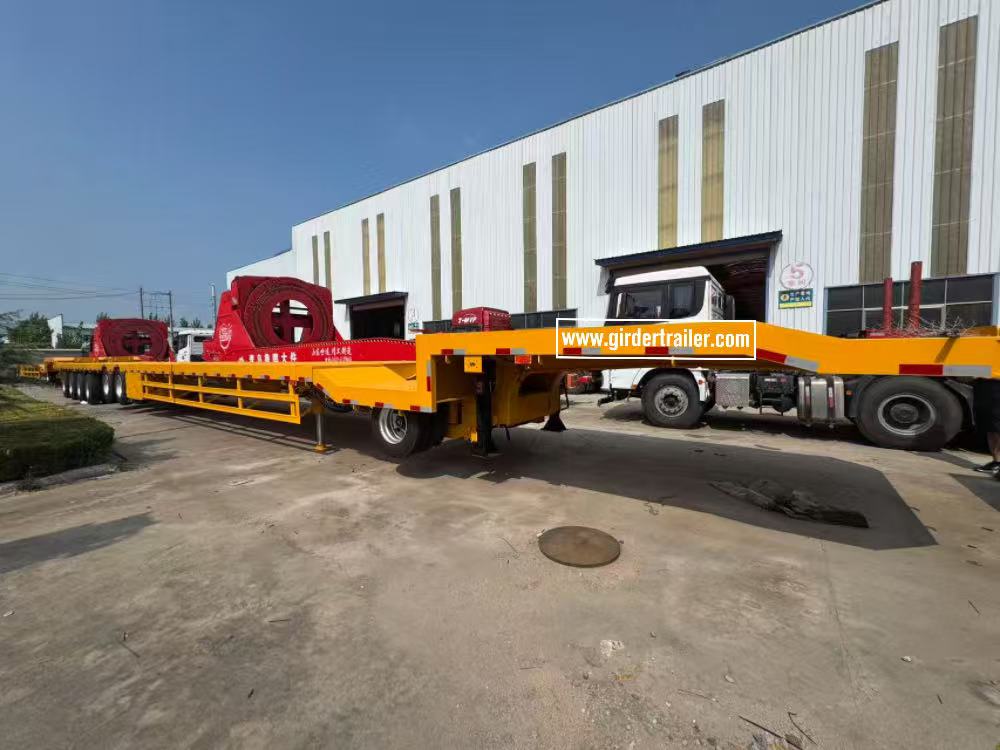

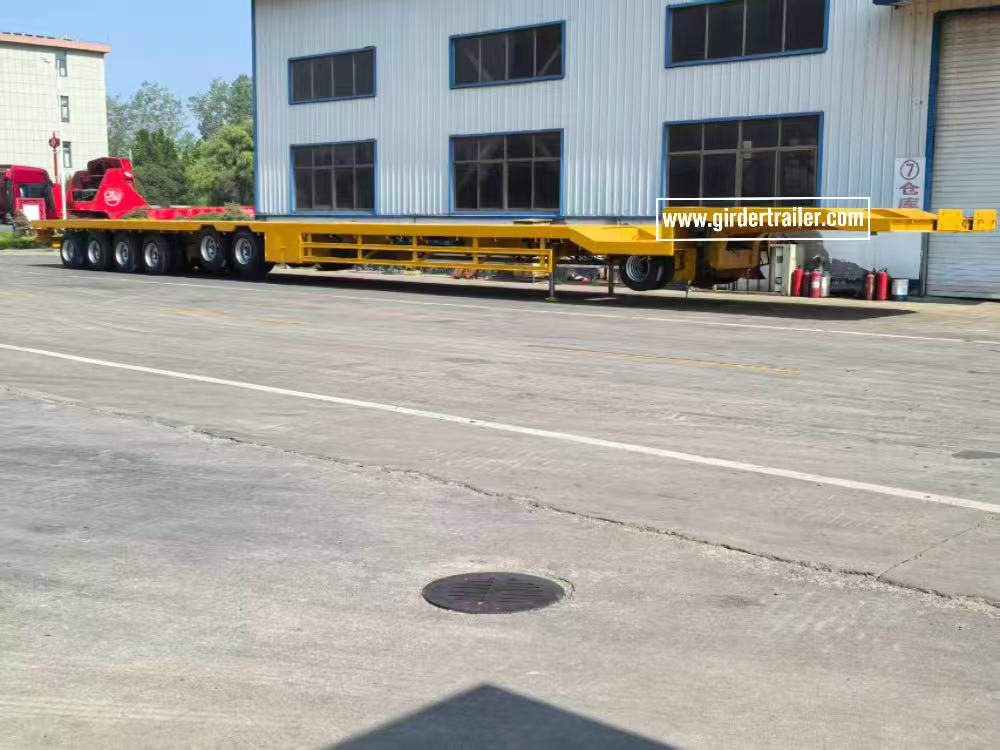

Cantilever suspension Length extendable wind power blade trailer

Extension function is inevitable in such kind of trailer. Before extension, the trailer is basically a normal flatbed trailer, which is available for regular cargo transportation.Since the trailer is too long after extension, bogie steering type axle is sometimes adopted to facilitate the turning during road duty. Special locks are also placed on the deck to lock the blade. Air suspension or hydraulic lifting steering suspension is also a good option for the stabilization.

Features :

Trailer length from 15-23meters extend to 38-60meters.
Transport 45meters to 80meters windmill turbine blade.
Loading capacity is up to 60tons.
All wheels are steering.
Highly robust frames and outstanding stability of extension beam.
Mechanical spring suspension ,air suspension or hydraulic suspension is optional
Manual valve operation and wireless remote control.

Parameters:

Brand	GIRDER brand Wind Turbine Blade Trailer
Dimension (closed state)	(15,000mm-23000mm)X3000mmX1350mm
Total length	38000mm-56,000mm after extension
Loading capacity	60 Ton
Platform thickness	3 mm
Hydraulic power station	Diesel engine
Axle	3 or4 units steering axle
Suspension	Mechanical spring suspension/air suspension/cantilever suspension hydraulic suspension optional
Tyre	12 pcs or16pcs
Braking system	WABCO emergency valve
King pin	3.5 inch high tensile steel bolted type
Landing gear	JOST C200 with hydraulic landing legs optional
