2 axles lowboy trailer ,drop deck trailer for sale

2 axles lowboy trailer ,drop deck trailer for sale

Product Item：GT0201TDP

Payload (kgs):60000

Tare weight (kgs):9900

Dimensions (mm):13000*3000*1100

Axles :13 ton(16ton,20ton) capacity

Description

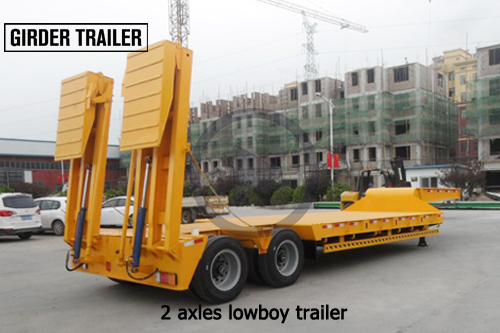

LOW BED TRAILER -2 axles lowboy trailer

QINGDAO SHIYUN TRAILER CO.,LD ,is a professional China Trailer manufacturer with brand “girder trailer”.Low bed trailer is a kind of semi-trailer that has a super low cargo platform, the platform is also called drop-deck. Mainly specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other crawlers/tires equipment. Benefit from the low bed design, the trailer has high trafficability to go through bridge arc and tunnel, and lowers COG(center of gravity) of cargo.The trailer body has a drop-deck which is lower than the front gooseneck and the rear wheel-set, due to the drop deck design, it always comes with a gooseneck, so it is also called low bed semi-trailer.

Basic Features:

1. Suspension is mechanical spring suspension or air suspension

2. Can be designed flatbed type or concave beam type

3. Side bracket is an option for widening drop deck, removable and swinging

4. The design can be expose tires type or covered tires type

5. The ramps can be mechanical spring type or hydraulic type optional

[GIRDER TRAILER] Features:

1. Can be together will front towing dolly for over heavy duty cargo transporting.

2. Lifting function optional :hydraulic lifting suspension be able to adjust height

3. Can make telescopic beam to realize length extension optional .

4.Higher strength steel to ensure the low platform not drop down.Arc-up design for the cargo platform deck,can be flatbed type also.

5.Drop deck minimize trailer’s platform height, increase trafficability and stability for over height cargo.

6. The cover surface of the platform can be wood to anti-skidding or diamond checked plate.

7.Gooseneck can be normal or hydraulic detachable type.Power pack with valves optional

Parameters:

Model	GT0201TDP
Size	1250030001100 (mm)
Payload	40000KG
Main beam	Heavy duty I beam.
Side beam	250mm I beam
Plate	4mm checked plate
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	2 * 13ton capacity (BPW,FUWA,YORK,L1 ,Anhui and otherBrand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 / 11.00R20 8pcs (Other size optional)
Rim	9.00-22.5 / 8.00V-20 8pcs (Other size optional)
King pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Above data can be customized per your local regulation and requirement.

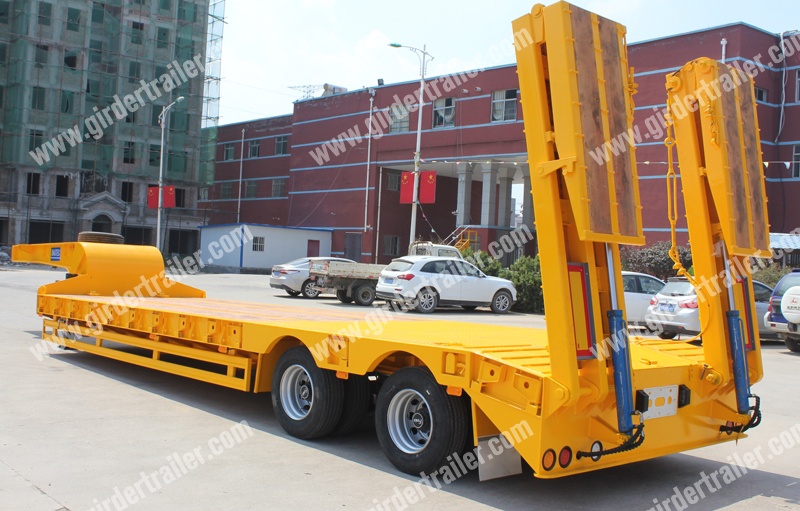

Exposed tires lowboy semi truck trailer for sale

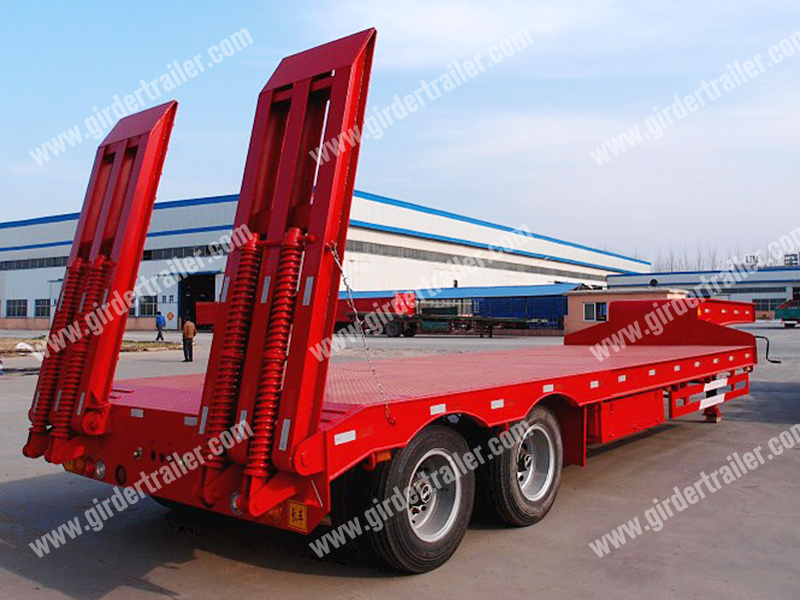

30tons wood deck Low loader trailer with hydraulic ramp

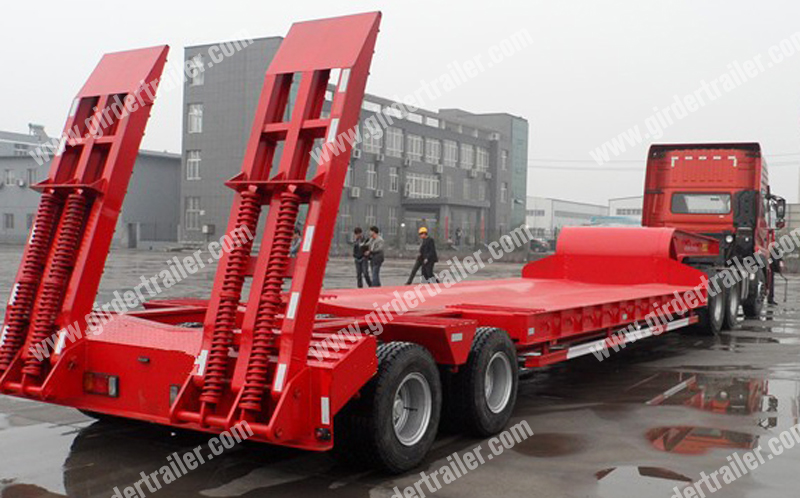

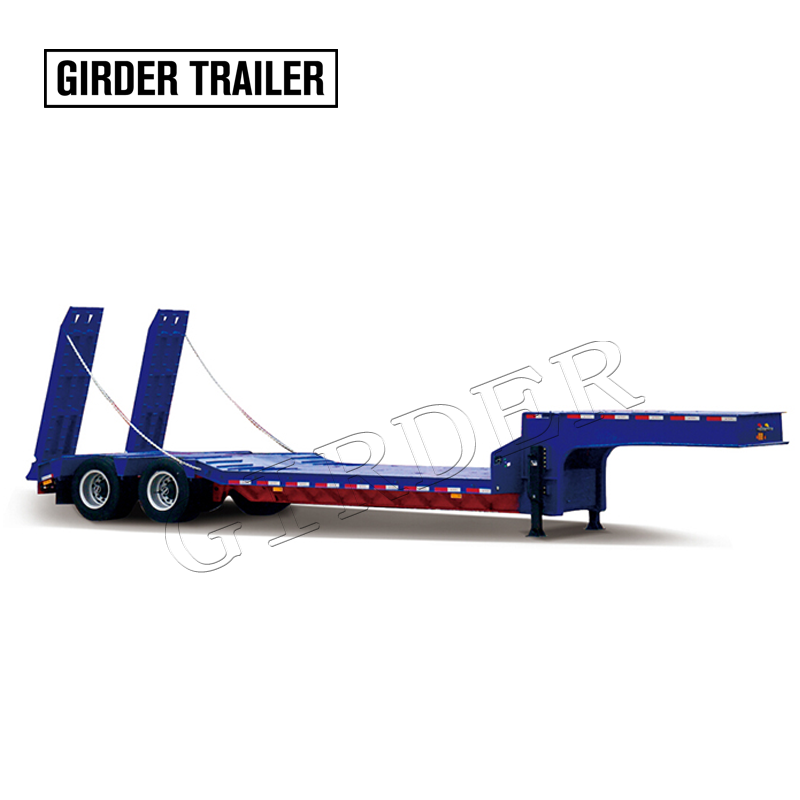

2 axles drop deck semi truck trailer

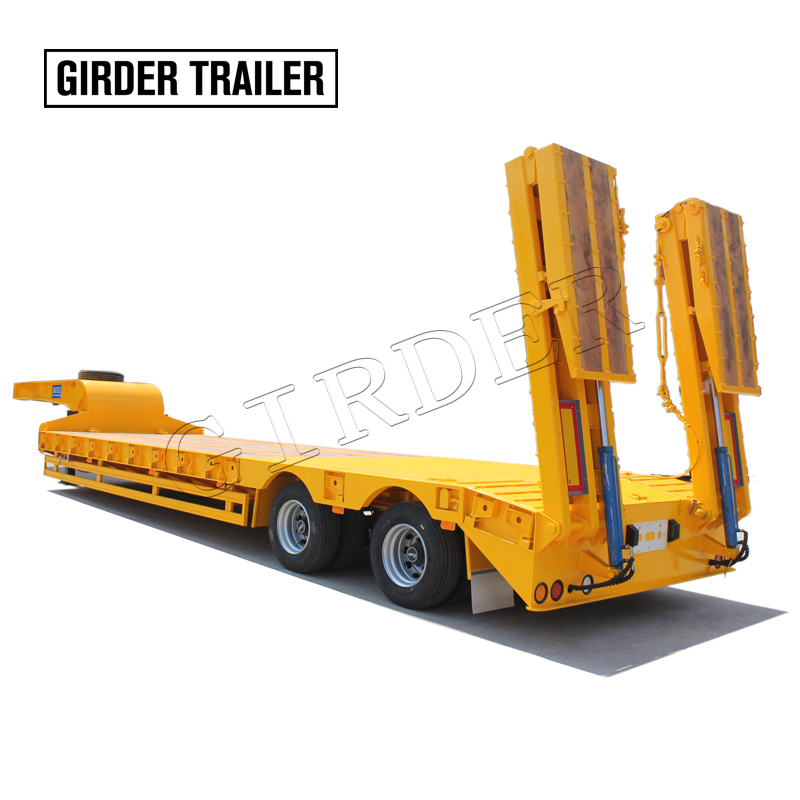

Dual axles Concave beam excavator transporting low bed trailer

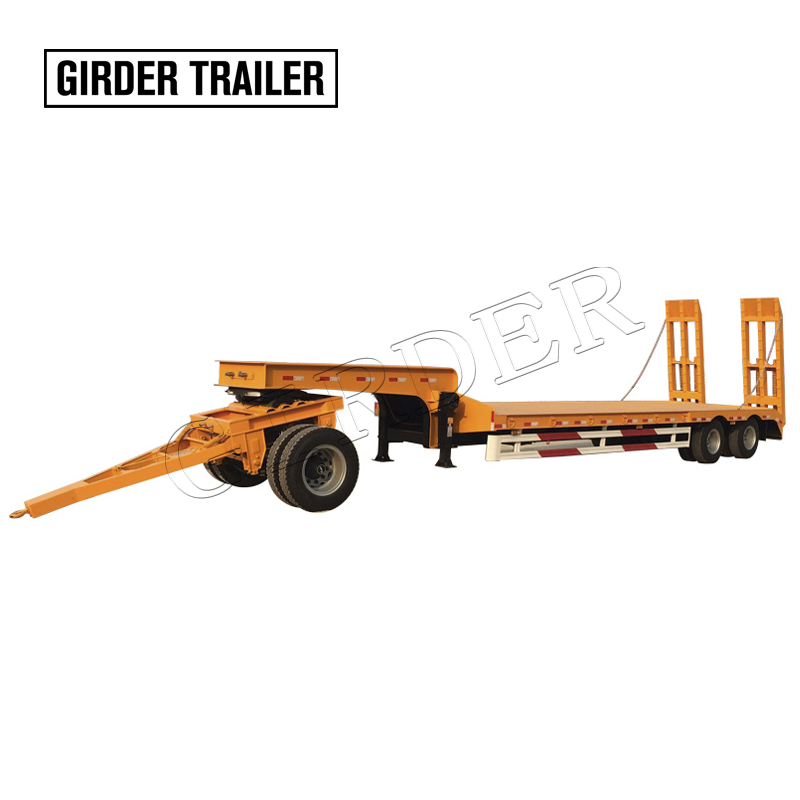

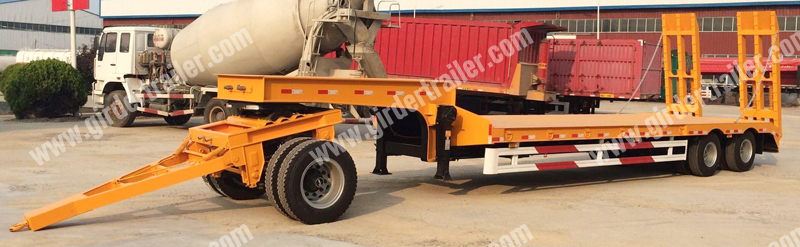

2 axles lowbed semi trailer with towing dolly

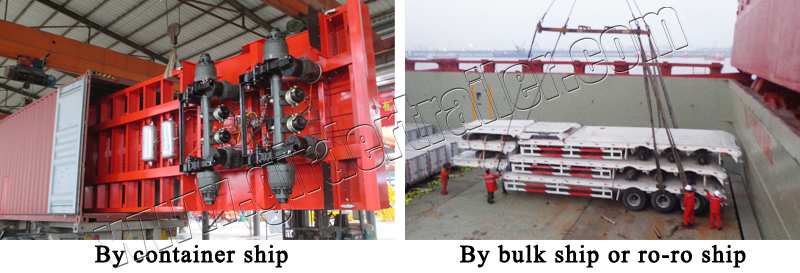

Shipment for lowbed trailer

DIFFERENT TYPES OF LOWBOY TRAILER made by [GIRDER TRAILER]

1	Normal lowbed trailer	6	Lowbed trailer with dolly
2	Multi axles lowbed trailer	7	Ultra lowbed trailer
3	Lifting steering lowbed trailer	8	1 lines 2 axis lowbed trailer
4	Front loading lowbed trailer-----Detachable gooseneck lowbed trailer	9	Extension lowbed trailer
5	Front loading lowbed trailer-----folding gooseneck lowbed trailer	10	Other lowbed trailers
